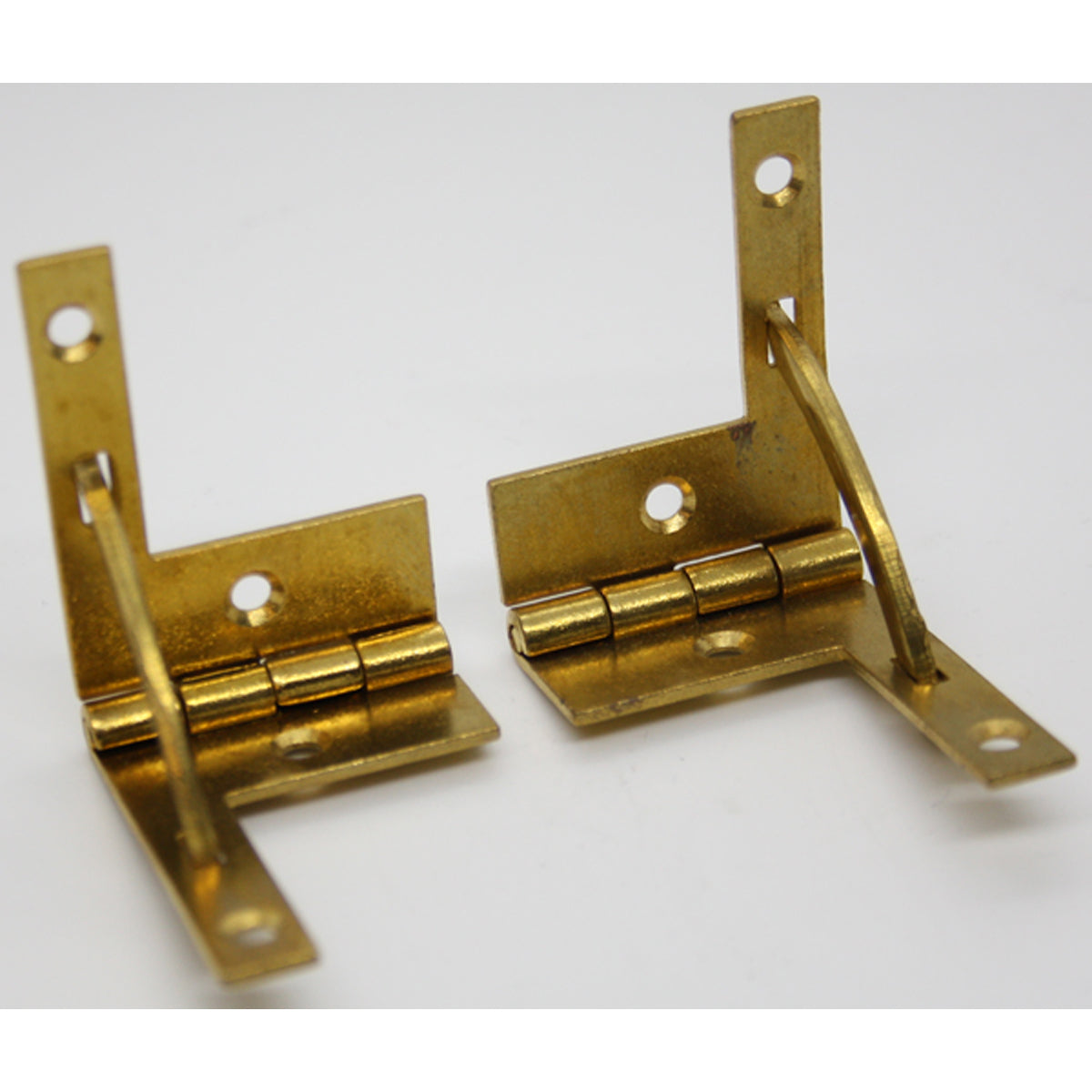

Quadrant Hinge 40 x 30 mm, Self-Colour Brass

The HI1227 brass quadrant hinge gives box lids, cabinet lids and jewellery boxes a fixed 90° opening. Its quadrant design provides a controlled opening position, while the self-colour brass finish suits projects calling for a traditional brass appearance.

Choosing This Hinge

The listed size is 40 x 30 mm, with length measured from the centre of the pin. This hinge is sold singly, so plan the required quantity for your own lid layout rather than assuming a pair is included. The compact, discreet profile is useful where the fitting should remain visually unobtrusive.

Product Details

• Item code: HI1227
• Type: quadrant hinge
• Finish/material description: Self-colour brass
• Listed size: 40 x 30 mm
• Length measured from centre of pin
• Fixed 90° opening
• Sold singly
• Compact, discreet profile

Fitting and Selection

Check the hinge position, leaf clearance and fixing layout against the lid, screen or panel. Confirm that the intended movement is unobstructed before final fixing, and select fixings appropriate to the receiving material. Do not assume that a similar-looking fitting has the same fixing centres or geometry.

Frequently Asked Questions

How far does this quadrant hinge open?

The confirmed specification is a fixed 90° opening angle.

Is this hinge sold as a pair?

No. HI1227 is sold singly, per hinge. Select the quantity required for your project.

What size should I check?

This version is identified by 40 x 30 mm. The 40 mm length is measured from the centre of the pin. Check fixing centres separately before ordering.

What does the finish description mean?

The current product specification describes this version as self-colour brass. Keep that specification distinct from electroplated-brass alternatives.

Which other fitting should I compare?

Compare Jewel Box Hinge 4374A 32 x 22, Brass Finish (CC514). Check its individual dimensions and function; it is not automatically a direct replacement.

Explore case catches, handles and box fittings; for closing fittings, compare Ornate Jewel Box Clip 3126, Brass (CC500A). Check each component independently when planning the complete assembly.
