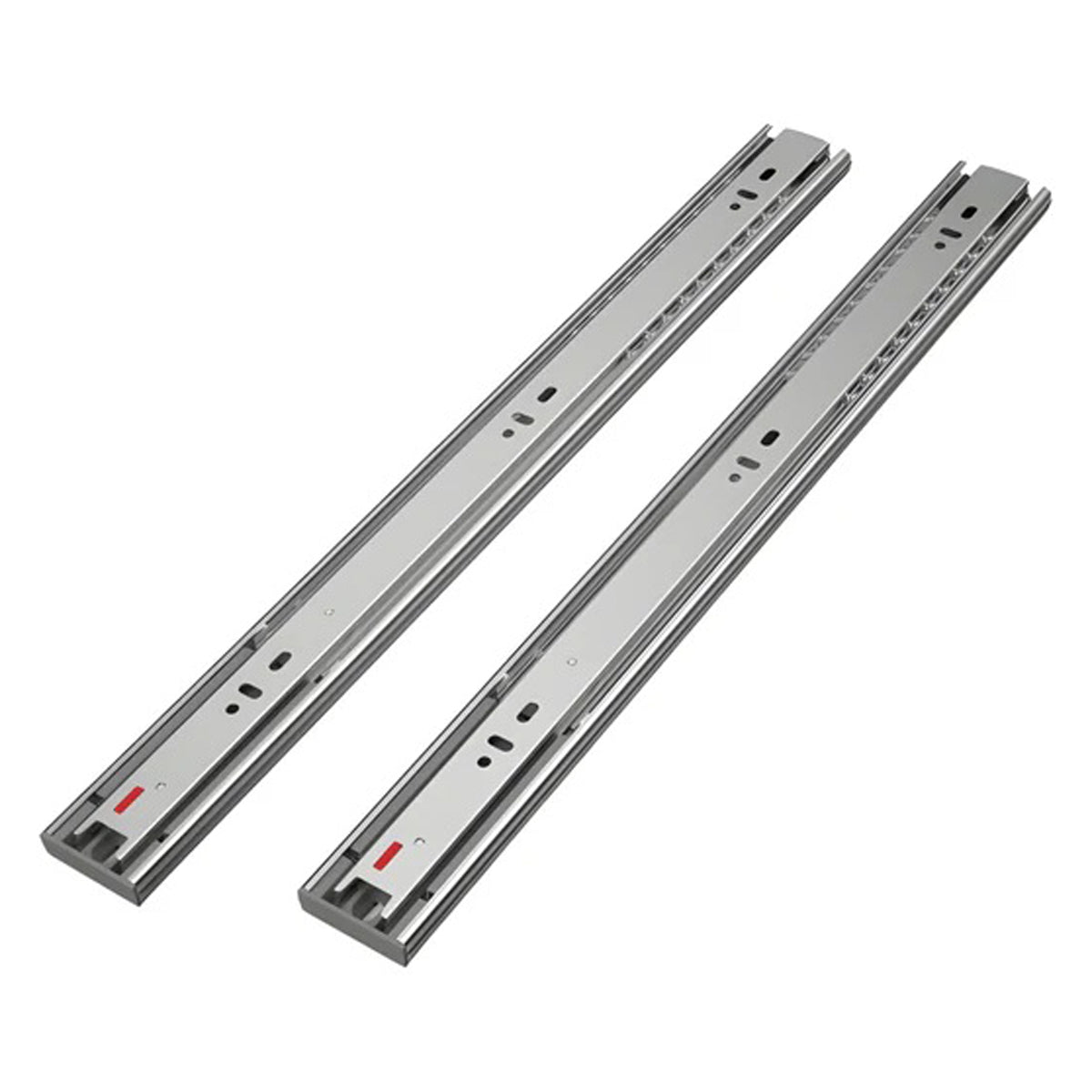

DS46 Medium Duty Soft Close Drawer Runner, 45kg Capacity, 45mm Height, 450mm Length

The Series DS46 Medium Duty Soft Close Drawer Runner (450mm) delivers the controlled, premium closing action of the DS46 soft-close range in a deeper 450mm configuration. Rated to 45kg load capacity and supplied as a pair, this runner is well suited to larger kitchen base units, deep bedroom drawer furniture, office storage pedestals, and retail cabinetry where both generous drawer depth and a refined closing experience are required.

The integrated soft-close damper absorbs the final momentum of the drawer, bringing it to a smooth, silent close without slamming - protecting the cabinet, the runner, and the contents within. The 450mm extension length provides a deeper drawer travel than the 400mm variant, making it the preferred choice where additional storage capacity is needed without compromising on finish or feel. The 45mm height profile ensures straightforward integration with standard drawer box assemblies.

Key Features

• 45kg load-rated medium duty runner with integrated soft-close damper
• Soft-close mechanism for smooth, silent drawer closure - no slamming or rattling
• 450mm extension length - deeper travel than the 400mm soft-close variant
• 45mm height profile for compatibility with standard drawer box assemblies
• Full-extension travel for complete, unobstructed access to drawer contents
• Supplied as a pair (1 pair per pack)
• Precision ball-bearing mechanism for smooth, quiet operation throughout
• Suitable for kitchen, bedroom, office, retail, and workshop furniture
• Compatible with standard 16-19mm panel thicknesses

Specifications
