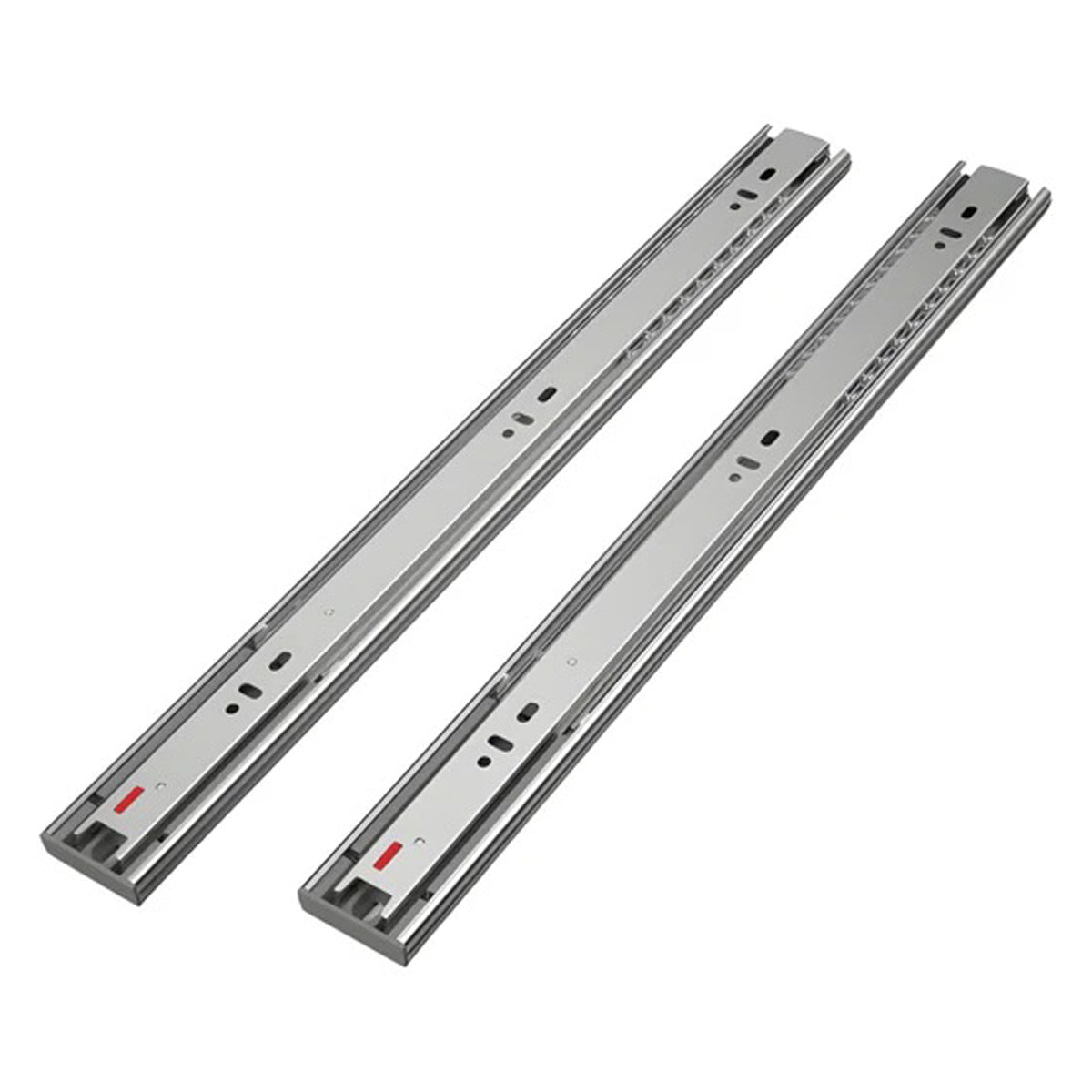

DS46 Medium Duty Soft Close Push-To-Open Drawer Runner, 45kg Capacity, 45mm Height, 300mm Length

The Series DS46 Medium Duty Soft Close Push-To-Open (PTO) Drawer Runner (300mm) combines two premium mechanisms in a single runner - an integrated soft-close damper for controlled, silent closure and a push-to-open (PTO) system that allows the drawer to be opened with a gentle push, eliminating the need for handles or pulls entirely. Rated to 45kg load capacity and supplied as a pair, this runner is the ideal choice for handleless kitchen furniture, minimalist bedroom cabinetry, and contemporary retail or office interiors where a clean, uninterrupted aesthetic is the priority.

The 300mm extension length makes this PTO runner well suited to compact and standard-depth drawer applications, while the 45mm height profile ensures compatibility with standard drawer box assemblies. The combination of soft-close and push-to-open in a single unit simplifies installation and reduces the number of components required for a fully handleless furniture build.

Key Features

• 45kg load-rated medium duty runner with integrated soft-close and push-to-open mechanisms
• Push-to-open (PTO) system - opens drawer with a gentle push, no handle required
• Soft-close damper for smooth, silent, controlled drawer closure
• 300mm extension length - suited to compact and standard-depth drawer applications
• 45mm height profile for compatibility with standard drawer box assemblies
• Full-extension travel for complete, unobstructed access to drawer contents
• Supplied as a pair (1 pair per pack)
• Precision ball-bearing mechanism for smooth, quiet operation throughout
• Ideal for handleless kitchen, bedroom, office, and retail furniture
• Compatible with standard 16-19mm panel thicknesses

Specifications
