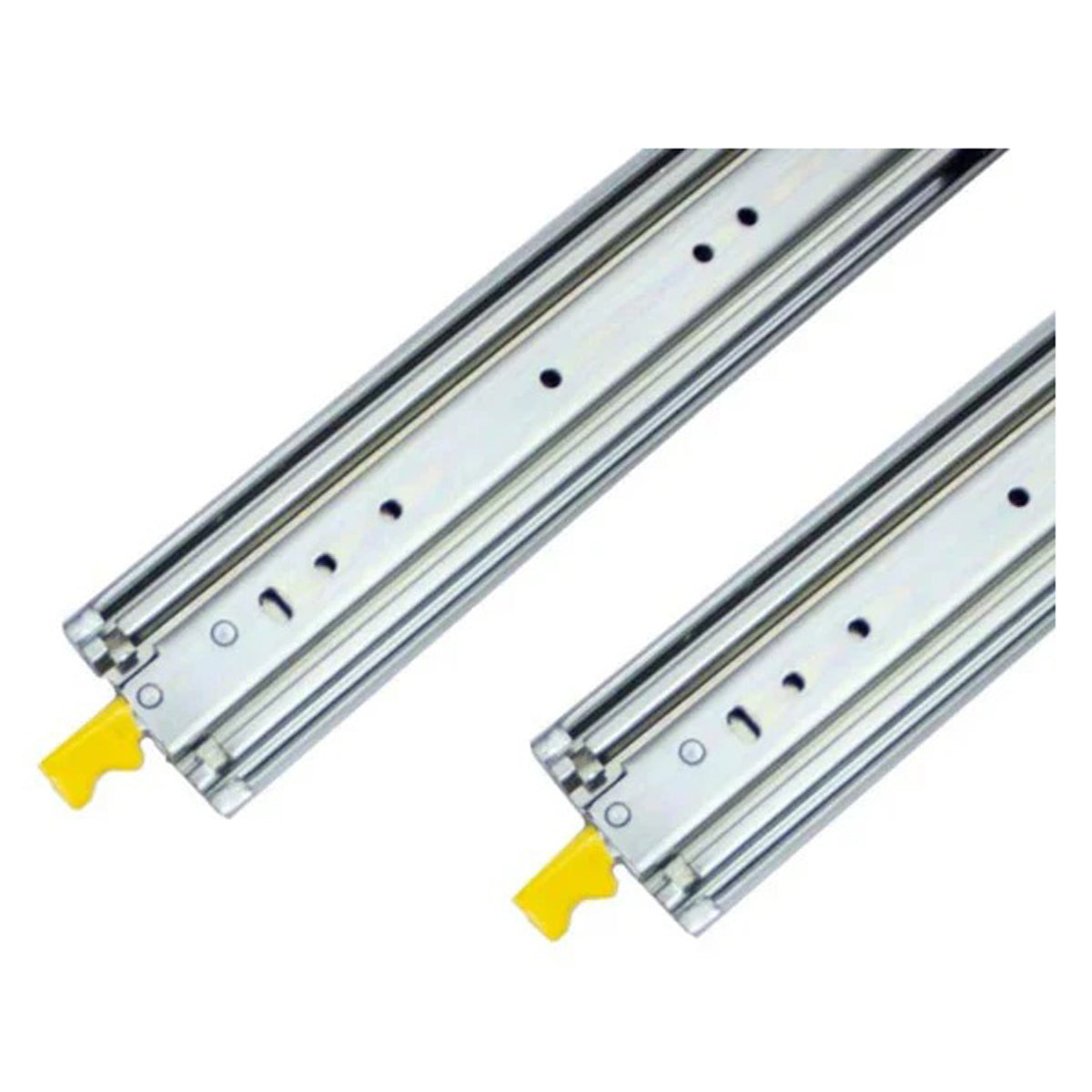

Series DS76 Heavy Duty Locking Drawer Runner 156kg 76 x 762mm - Pair

The Series DS76 Heavy Duty Locking Drawer Runner in the 762mm length delivers a 156kg load capacity with an integrated locking mechanism across a 762mm full-extension travel - exactly 30 inches and a recognised long-travel industrial format that combines the positive locking security of the DS76 Locking series with a substantial drawer reach. The locking function secures the drawer positively in the closed position, preventing unintended opening caused by vibration, movement, or accidental contact, making this runner the specification choice for long-travel safety-critical applications where a heavily loaded drawer must remain positively secured in demanding or mobile environments.

At 762mm, this runner is suited to deep industrial storage systems, specialist workshop benches, vehicle-mounted equipment drawers, technical service pull-outs, and bespoke safety-critical technical furniture where a 30-inch drawer travel is required alongside a positive locking action and a 156kg load rating. The 762mm length is a recognised standard in industrial and technical specifications, making this runner a natural fit for projects where a 30-inch locking slide-out is a defined requirement. The 76mm wide-profile runner maintains the structural rigidity and superior load distribution of the DS76 series across the full 762mm travel under sustained heavy loads in high-cycle environments.

Supplied as a pair and sourced from EuroFit Systems, the DS76 Locking 762mm is a premium, trade-grade runner for industrial fit-out contractors, vehicle equipment installers, and specialist furniture manufacturers working on projects that require 30-inch heavy-duty locking drawer performance at a professional specification.

Key Features

• Integrated locking mechanism - positively secures the drawer closed against vibration, movement, and accidental opening
• 156kg load capacity - heavy-duty performance across a 762mm (30-inch) long-travel locking format
• 76mm runner height - wide-profile design for superior load distribution and structural rigidity
• 762mm length - exactly 30 inches, a recognised industrial standard for long-travel locking slide-outs
• Full-extension travel for complete, unobstructed access at depth
• Supplied as a pair - one complete set per drawer
• Trade-grade quality from EuroFit Systems
• Ideal for deep industrial storage, specialist workshop benches, vehicle-mounted equipment drawers, and safety-critical technical fit-outs

Specifications

• Series: DS76
• Type: Heavy Duty Locking Drawer Runner
• Load Capacity: 156kg
• Height: 76mm
• Length: 762mm
• Pack Contents: 1 Pair
• SKU: DRE071
• Supplier: EuroFit Systems
• Product Family: Drawers
