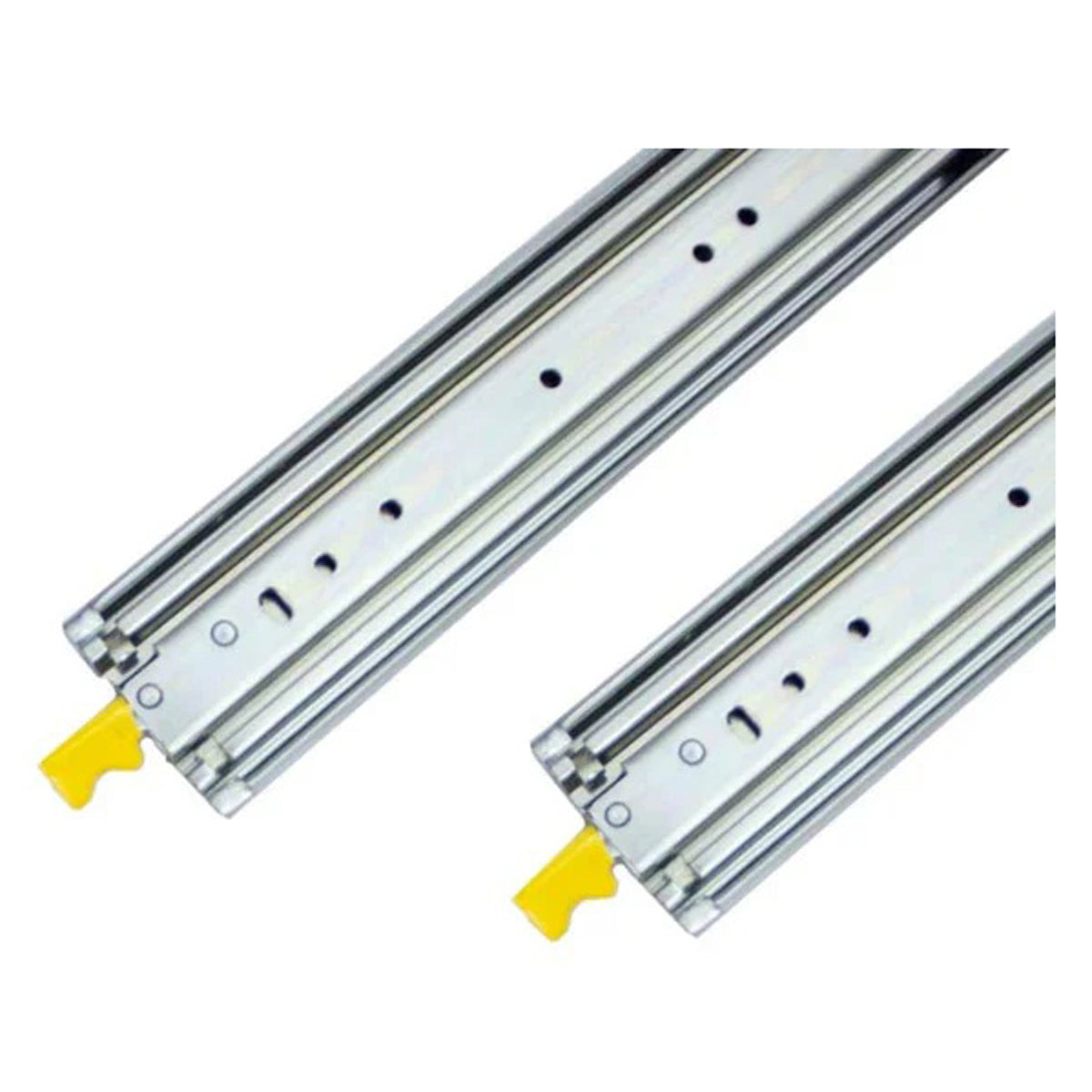

Series DS76 Heavy Duty Locking Drawer Runner 220kg 76 x 355mm - Pair

The Series DS76 Heavy Duty Locking Drawer Runner in the 355mm length delivers a 220kg load capacity with an integrated locking mechanism - a critical safety feature that distinguishes this runner from the standard DS76 range. The locking function secures the drawer in the closed position, preventing unintended opening caused by vibration, movement, or accidental contact. This makes the DS76 Locking 355mm the specification choice for mobile industrial equipment, vehicle-mounted storage, vibration-prone environments, safety-critical installations, and any application where an unsecured drawer presents an operational or safety risk.

Built on the wide 76mm runner profile, the DS76 Locking 355mm combines the extreme 220kg load capacity of the DS76 series with the added security of a positive locking action. The 355mm length is suited to compact but heavily loaded drawer configurations - such as industrial tool drawers, vehicle storage units, machine access panels, and specialist safety-critical storage where the drawer must remain positively secured when closed. The 76mm wide-profile runner provides the structural rigidity and superior load distribution needed for reliable operation under extreme loads in demanding environments.

Supplied as a pair and sourced from EuroFit Systems, the DS76 Locking 355mm is a premium, trade-grade runner for industrial fit-out contractors, vehicle equipment installers, and specialist furniture manufacturers working on projects where drawer security is a defined safety or operational requirement.

Key Features

• Integrated locking mechanism - secures the drawer in the closed position against vibration, movement, and accidental opening
• 220kg load capacity - extreme heavy-duty performance in a compact 355mm format
• 76mm runner height - wide-profile design for superior load distribution and structural rigidity
• 355mm length - compact format for short-travel, high-load, safety-critical drawer applications
• Supplied as a pair - one complete set per drawer
• Trade-grade quality from EuroFit Systems
• Ideal for mobile industrial equipment, vehicle-mounted storage, vibration-prone environments, and safety-critical installations

Specifications

• Series: DS76
• Type: Heavy Duty Locking Drawer Runner
• Load Capacity: 220kg
• Height: 76mm
• Length: 355mm
• Pack Contents: 1 Pair
• SKU: DRE063
• Supplier: EuroFit Systems
• Product Family: Drawers
