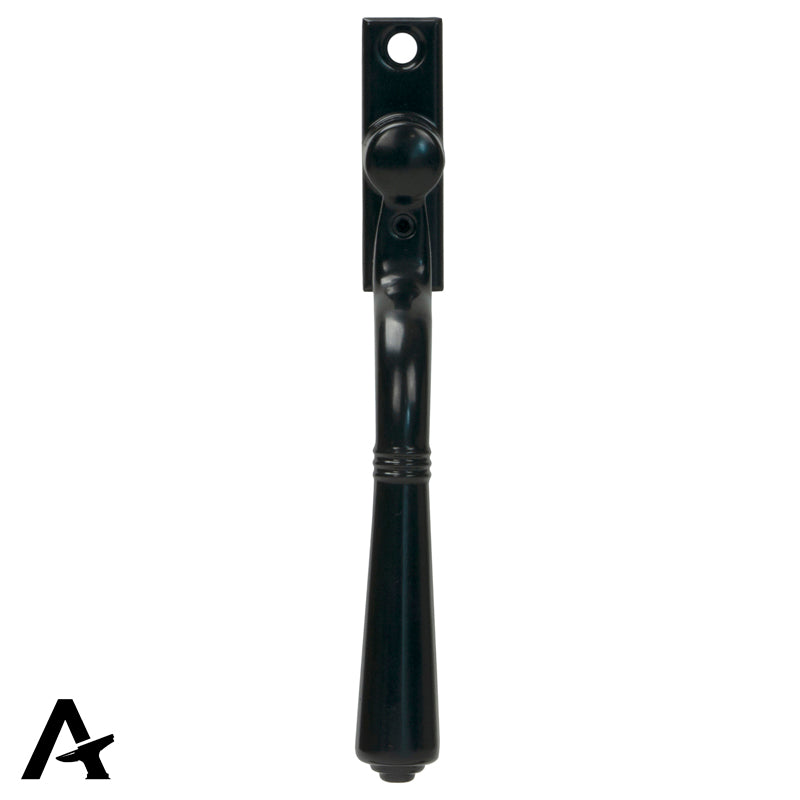

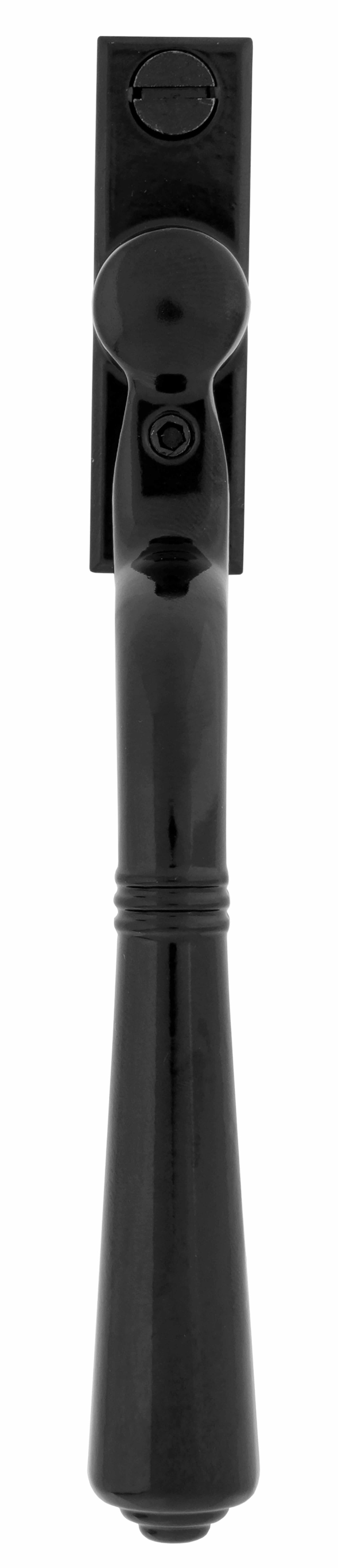

TEARDROP ESPAGNOLETTE 147x16x51 BLK - 20460

TEARDROP ESPAGNOLETTE 147x16x51 BLK - 20460

Stock Code: WFA077A

£18.58 GBP
Sale
View full details
>

PRODUCT DESCRIPTION

Discover the From The Anvil Black Teardrop Espag at Hart Wholesale.

A sleek and contemporary design that will suit any property type.

  • Due to their slim fixing plates, our espagnolettes can be fitted on any type of window including uPVC and timber. Designed to match the products in our Teardrop range.
  • For ease of use, the handle is cranked forwards, ensuring it protrudes a moderate distance from the window.
  • This reversible design is suitable for both left and right handed windows.
  • They have a 7mm² x 40mm spindle and can be locked by way of a grub screw.
  • Suitable for use with an espagnolette gearbox and window lock.

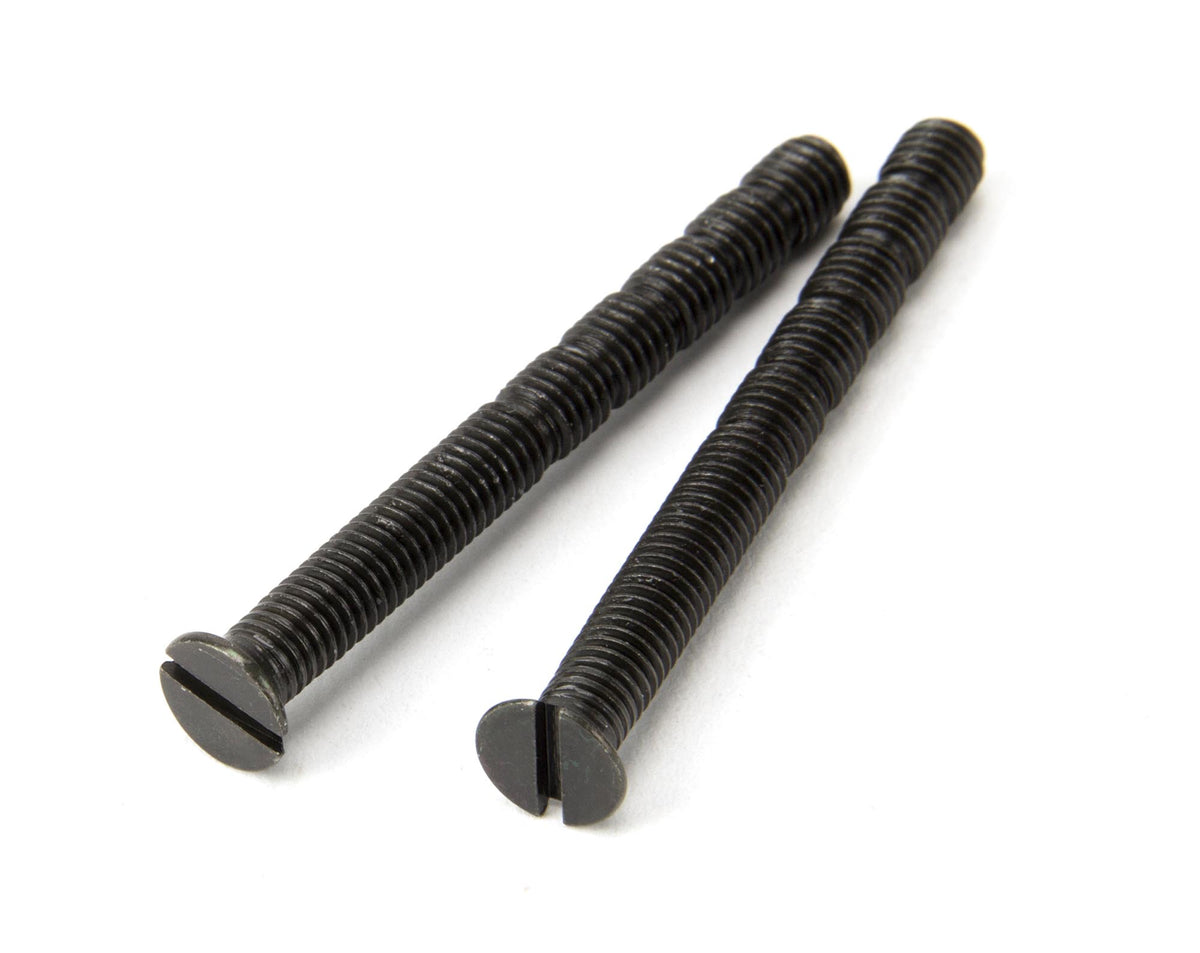

  • Supplied with matching SS M5 screws.

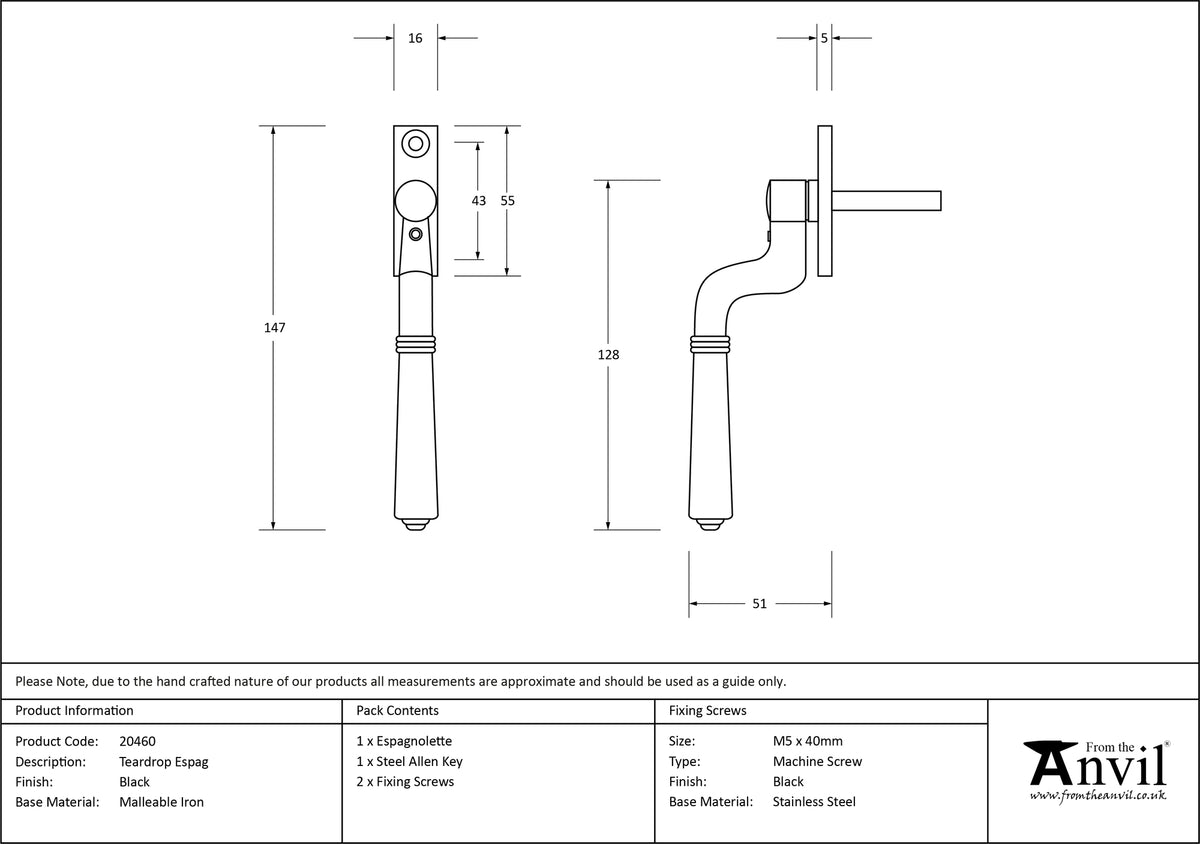

Specifications

Overall Length:147mm
Handle Length: 128mm
Fixing Plate Size: 55mm x 16mm x 5mm
Centres: 43mm

Finish: Black
From The Anvil product code: 20460

Finish

A perfect match for our Black ironmongery, our Teardrop Espags are zinc die cast for exceptional precision and durability.

Care and maintenance

Regular oiling of all moving parts using our ‘3-in-1 Oil’ (92337) is beneficial to the longevity of your products. This process is also highly recommended during initial installation. An oily cloth can also be used to wipe over the product from time to time to aid protection against exterior or environmental elements. This can also be done from installation. For any minor scratches that may occur with general wear and tear of your product, we offer a durable ‘Black Touch Up Paint’ (73101) if required.

TECHNICAL DETAILS

  • Application: From The Anvil
