Name: TECTUS TE540 3D FR Concealed Door Hinge – Satin Nickel Look
Brand: SIMONSWERK UK LTD
SKU: HIB208J
Price: 101.93 GBP
Availability: InStock

PRODUCT DESCRIPTION

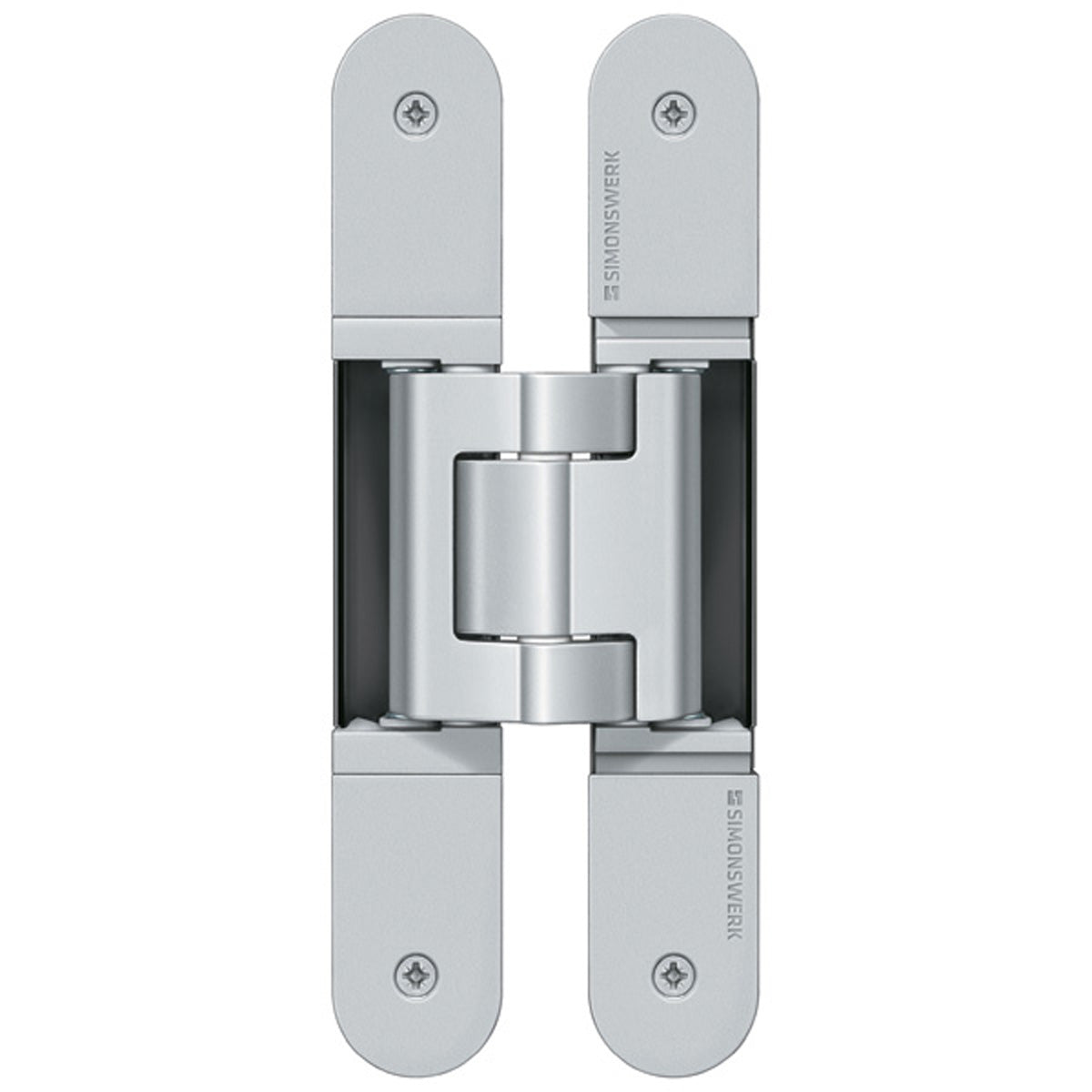

TECTUS TE540 3D FR in Satin Nickel Look

The TE540 3D FR in Satin Nickel Look is a premium SIMONSWERK concealed door hinge for carefully specified architectural installations. It is hidden when the door is closed, keeping exposed hinge knuckles out of the finished door line.

This FR version has an integrated intumescent kit. It must still be selected as part of a suitable tested door assembly; the hinge designation alone is not a fire rating for the complete door.

Satin Nickel Look gives the open hinge a muted nickel-look appearance. It offers a coordinated visual choice for nickel-look handles and other fittings while keeping the closed door free of exposed hinge knuckles.

Model-specific technical information

Exact model: TE540 3D FR
Version: FR
Finish: Satin Nickel Look (SW 125)
Reference capacity: up to 120 kg using two hinges on a 1 m × 2 m door leaf, subject to manufacturer technical conditions
Minimum door thickness: 40.0 mm
Frame width: 32 mm; hinge length: 200 mm
Country of origin: Germany
SIMONSWERK manufacturer part number: 5 400691 0 12502
Stock code: HIB208J
Quantity supplied: one hinge

comfortable 3D adjustment (side ± 3.0 mm, height ± 3.0 mm, compression ± 1.0 mm). Follow the manufacturer’s sequence when setting alignment.

Optional routing accessories

The manufacturer lists 52506805 (step 1), 52506815 (step 2) for this exact version. Templates require the appropriate universal milling frame when used with the SIMONSWERK jig system. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.

Universal milling frame: check the specified frame and supplied template components before ordering.

Fire-door selection

Suitability for a fire door depends on the complete door construction and supporting certification. Follow the tested assembly and installation instructions, including its specified intumescent protection. Do not transfer a standard model’s approval or kit requirements to this version.

Installation guidance and related hinges

Read the SIMONSWERK TE540 3D FR technical information and routing instructions before preparation. Check door dimensions, weight, frame construction and any receiver capacity or closer forces. The quoted load is a reference for two hinges, not one hinge. At an opening position of 180°, additional door fixing may be needed.

Browse the TECTUS concealed hinge range for related models and finishes, or contact Hart Wholesale with the exact door details.

Is this the same as a standard TE540 hinge?

Order by the full model and version name: TE540 3D FR. Specialist versions can have different preparation, capacity and accessory requirements. Match the manufacturer number before replacing an existing hinge.

What does one order unit contain?

One TE540 3D FR hinge in Satin Nickel Look, SW 125. Optional routing equipment and separately listed installation accessories are purchased separately.

How do I confirm the correct part?

Use stock code HIB208J, manufacturer part number 5 400691 0 12502, the full version name and SW 125. A similar appearance alone does not establish interchangeability.
