PRODUCT DESCRIPTION

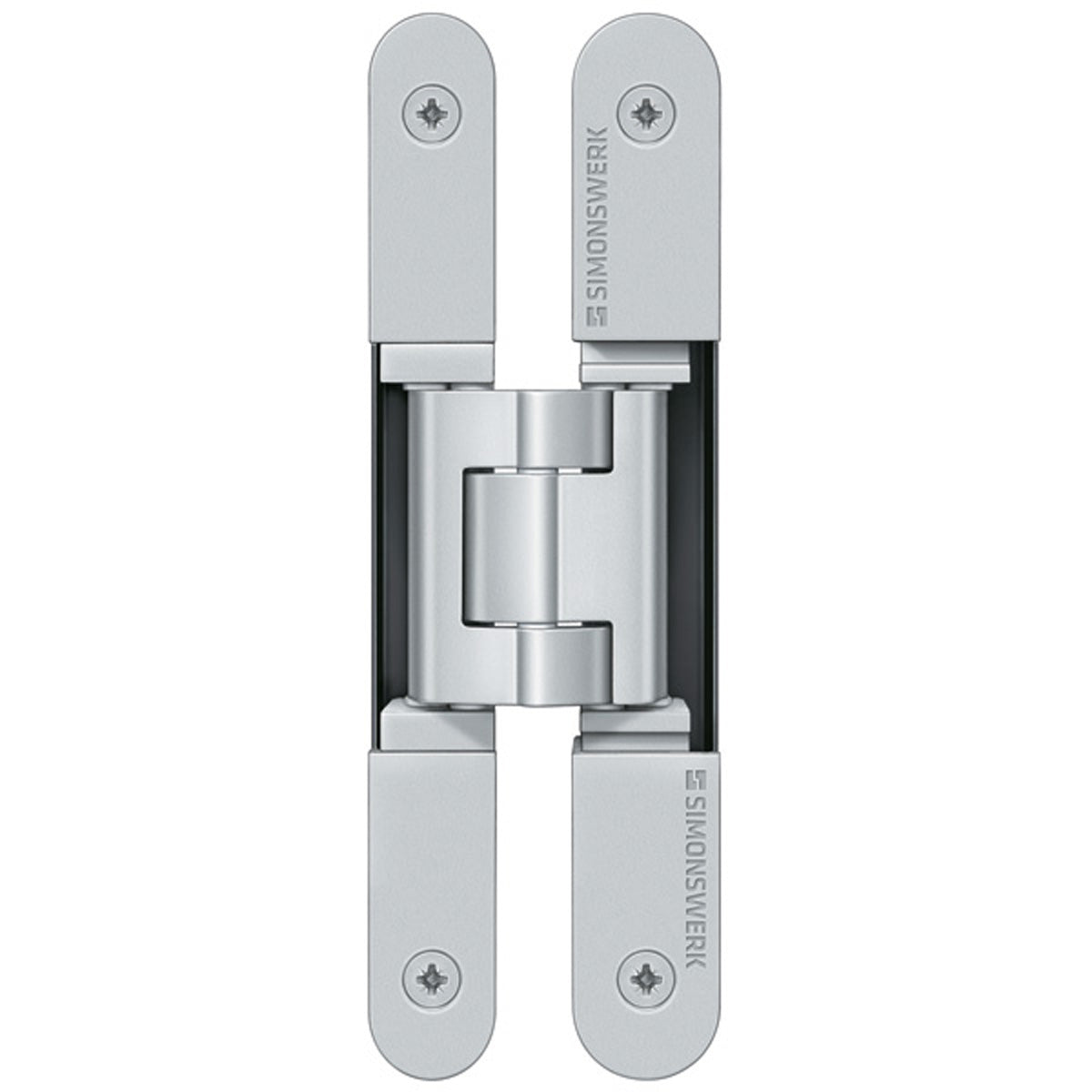

TECTUS TE240 3D concealed hinge in Satin Nickel
The compact 155 mm TE240 3D is designed for unrebated and rebated flush residential doors. Its slim preparation and sideways-closed hinge body support a discreet mortise appearance in suitable timber, steel or aluminium frames. Fully invisible when the door is closed, this premium SIMONSWERK hinge lets the door and surrounding interior take centre stage.
Satin nickel is a specified nickel finish for interiors seeking a softer metallic detail on the open door. Select the exact SW finish code when coordinating several doors, particularly where nickel and nickel-look hardware are used together.
Technical specification
- Model: TE240 3D, standard version
- Finish: Satin Nickel (SW 144)
- Reference capacity: up to 60 kg using two hinges on a door leaf 1 m wide × 2 m high, subject to manufacturer load conditions
- Minimum door thickness: 24 mm
- Frame component: 155 × 21 mm
- Opening angle: up to 180°
- Side adjustment ±3 mm; height adjustment ±3 mm; compression adjustment ±1 mm
- Right- and left-hand applications
- Maintenance-free slide bearings
- Routing cutter diameter: 16 mm; collar ring: 30 mm
- Country of origin: Germany
- SIMONSWERK manufacturer part number: 5 400679 0 14402
- Hart Wholesale stock code: HIB200P
- Quantity supplied: one hinge
Optional routing equipment
The manufacturer specifies 52506916 (frame), 52506926 (door leaf) for the routing preparation. These templates require the appropriate universal milling frame. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.
View our TE240 routing-template listing and check the supplied component numbers and quantities before ordering. Follow the exact hinge installation instructions; do not assume every template set includes all routing stages.
Installation and model selection
Check door dimensions, weight, frame construction, receiver capacity and any closer forces against the SIMONSWERK TE240 3D technical information. The reference capacity is not a per-hinge rating. At 180°, the door may require additional fixing. Use the exact version specification for Energy, A8, FR or other specialist variants.
Compare models and finishes in the TECTUS invisible door hinge range, or contact Hart Wholesale with your installation details.
Is this hinge visible when the door is closed?
No. The TE240 3D is fully concealed when correctly installed and the door is closed.
What does one order unit contain?
One Satin Nickel TE240 3D hinge. Routing templates, milling frames and other separately listed accessories are not included.
How do I identify this finish and part?
Specify SW 144 and manufacturer part number 5 400679 0 14402. Hart Wholesale stock code HIB200P identifies this listing. Decorative finish names do not establish the hinge construction material.
Does the quoted capacity apply to one hinge?
No. It is the manufacturer’s reference for two hinges on a 1 m × 2 m door leaf, subject to the full technical conditions. Confirm the selection for your actual door and installation.
TECHNICAL DETAILS
- Application: Furniture Hinges
- Width: 21 mm
- Length: 155 mm
- Finish: Satin Nickel
