TECTUS TE311 3D FVZ 40 in Satin Chrome Look

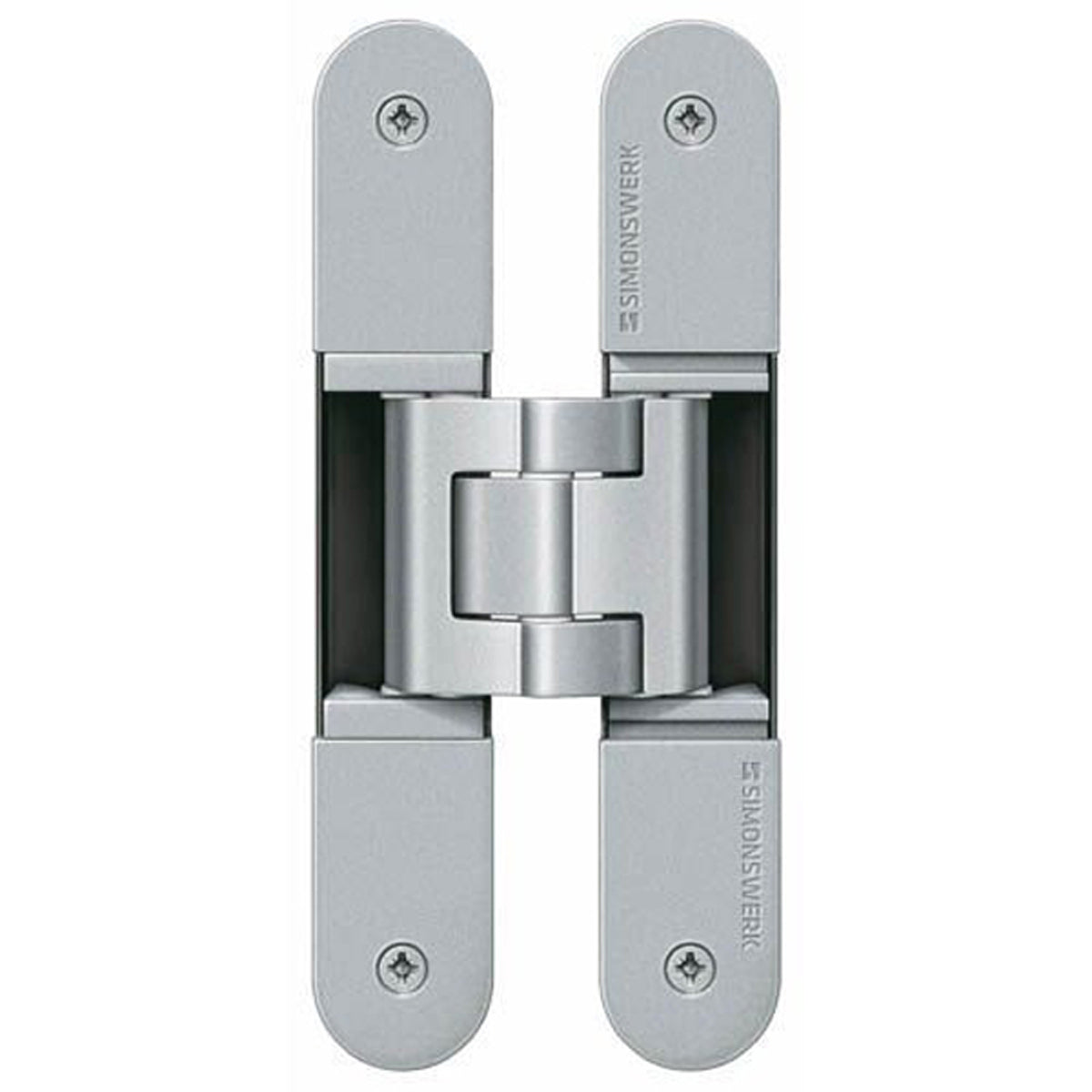

The TE311 3D FVZ 40 in Satin Chrome Look is a premium SIMONSWERK concealed door hinge for carefully specified architectural installations. It is hidden when the door is closed, keeping exposed hinge knuckles out of the finished door line.

FVZ identifies preparation for recessed frames. This version is intended for centred installation in 40 mm doors. Use the exact FVZ mortise and frame-facing dimensions rather than the standard hinge preparation.

Satin Chrome Look provides a cool metallic appearance for coordinating with chrome-look interior fittings. The word look describes the finish appearance; it should not be used to infer the construction material of the hinge.

Model-specific technical information

• Exact model: TE311 3D FVZ 40
• Version: FVZ 40
• Finish: Satin Chrome Look (SW 124)
• Reference capacity: up to 60 kg using two hinges on a 1 m × 2 m door leaf, subject to manufacturer technical conditions
• Minimum door thickness: 40.0 mm
• Frame width: 24 mm; hinge length: 125 mm
• Country of origin: Germany
• SIMONSWERK manufacturer part number: 5 400568 0 12402
• Stock code: HIB215A
• Quantity supplied: one hinge

3D adjustment (side ± 3.0 mm, height ± 3.0 mm, compression ± 1.0 mm). Follow the manufacturer’s sequence when setting alignment.

Optional routing accessories

The manufacturer lists 52511006 (frame), 52511016 (door leaf) for this exact version. Templates require the appropriate universal milling frame when used with the SIMONSWERK jig system. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.

Universal milling frame: check the specified frame and supplied template components before ordering.

Installation guidance and related hinges

Read the SIMONSWERK TE311 3D FVZ 40 technical information and routing instructions before preparation. Check door dimensions, weight, frame construction and any receiver capacity or closer forces. The quoted load is a reference for two hinges, not one hinge. At an opening position of 180°, additional door fixing may be needed.

Browse the TECTUS concealed hinge range for related models and finishes, or contact Hart Wholesale with the exact door details.

Is this the same as a standard TE311 hinge?

Order by the full model and version name: TE311 3D FVZ 40. Specialist versions can have different preparation, capacity and accessory requirements. Match the manufacturer number before replacing an existing hinge.

What does one order unit contain?

One TE311 3D FVZ 40 hinge in Satin Chrome Look, SW 124. Optional routing equipment and separately listed installation accessories are purchased separately.

How do I confirm the correct part?

Use stock code HIB215A, manufacturer part number 5 400568 0 12402, the full version name and SW 124. A similar appearance alone does not establish interchangeability.
