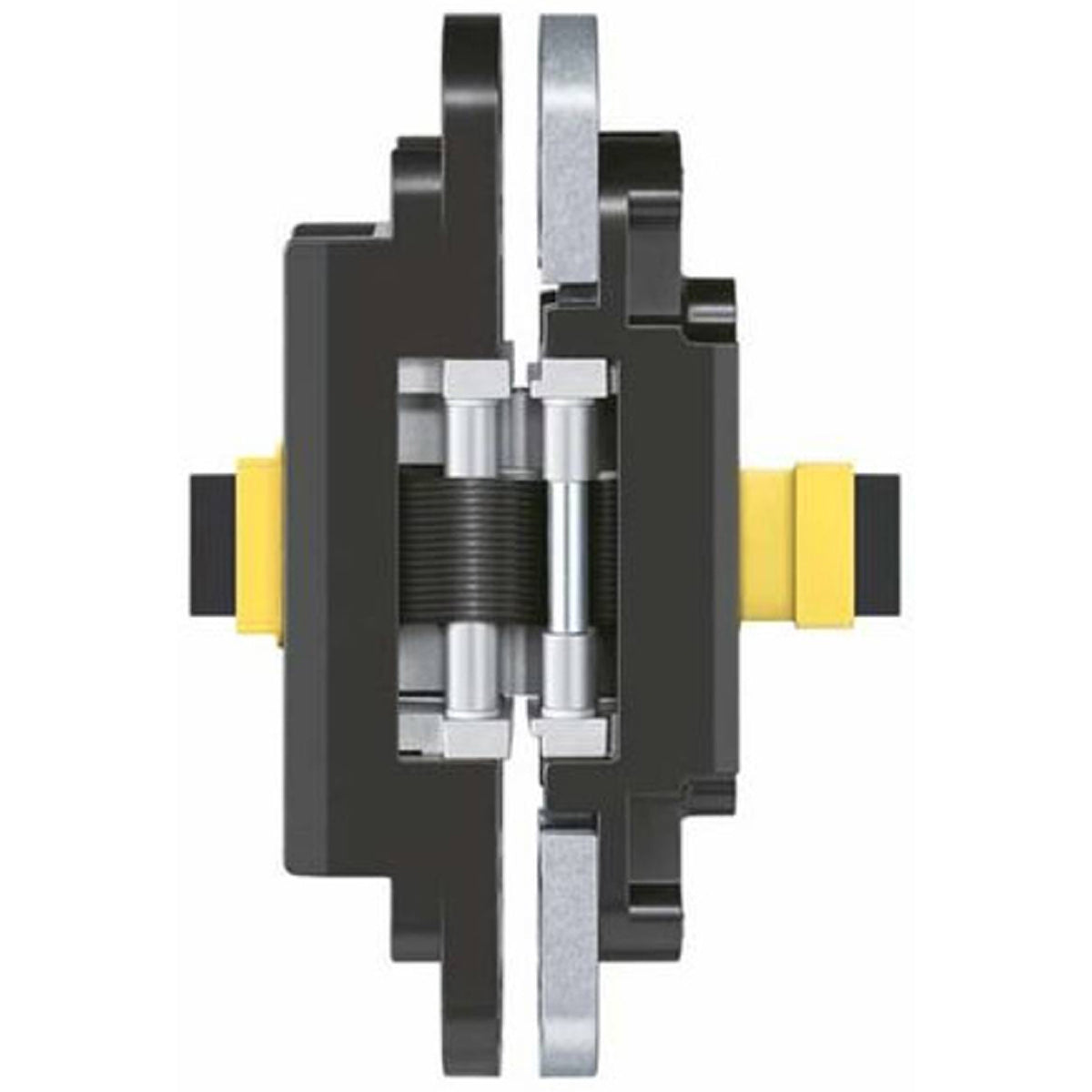

Name: TECTUS TE340 3D Energy Concealed Door Hinge – Satin Nickel Look
Brand: SIMONSWERK UK LTD
SKU: HIB226C
Price: 212.04 GBP
Availability: InStock

PRODUCT DESCRIPTION

TECTUS TE340 3D Energy in Satin Nickel Look

The TE340 3D Energy in Satin Nickel Look is a premium SIMONSWERK concealed door hinge for carefully specified architectural installations. It is hidden when the door is closed, keeping exposed hinge knuckles out of the finished door line.

The Energy version provides permanent energy transfer through the hinge for suitable powered door components. The manufacturer specifies two TECTUS Energy connection adapters per hinge. Select the adapters and wiring to the connection plan; do not assume separately listed adapters or cables are included.

Satin Nickel Look gives the open hinge a muted nickel-look appearance. It offers a coordinated visual choice for nickel-look handles and other fittings while keeping the closed door free of exposed hinge knuckles.

Model-specific technical information

Exact model: TE340 3D Energy
Version: ENERGY
Finish: Satin Nickel Look (SW 125)
Reference capacity: up to 80 kg using two hinges on a 1 m × 2 m door leaf, subject to manufacturer technical conditions
Minimum door thickness: 36.0 mm
Frame width: 28 mm; hinge length: 160 mm
Country of origin: Germany
SIMONSWERK manufacturer part number: 5 400659 0 12501
Stock code: HIB226C
Quantity supplied: one hinge

comfortable 3D adjustment (side ± 3.0 mm, height ± 3.0 mm, compression ± 1.0 mm). Follow the manufacturer’s sequence when setting alignment.

Optional routing accessories

The manufacturer lists 52506935 (step 1), 52506945 (step 2), 52509395 (additional routing Energy) for this exact version. Templates require the appropriate universal milling frame when used with the SIMONSWERK jig system. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.

Universal milling frame: check the specified frame and supplied template components before ordering.

Fire-door selection

Suitability for a fire door depends on the complete door construction and supporting certification. Follow the tested assembly and installation instructions, including its specified intumescent protection. Do not transfer a standard model’s approval or kit requirements to this version.

Installation guidance and related hinges

Read the SIMONSWERK TE340 3D Energy technical information and routing instructions before preparation. Check door dimensions, weight, frame construction and any receiver capacity or closer forces. The quoted load is a reference for two hinges, not one hinge. At an opening position of 180°, additional door fixing may be needed.

Browse the TECTUS concealed hinge range for related models and finishes, or contact Hart Wholesale with the exact door details.

Is this the same as a standard TE340 hinge?

Order by the full model and version name: TE340 3D Energy. Specialist versions can have different preparation, capacity and accessory requirements. Match the manufacturer number before replacing an existing hinge.

What does one order unit contain?

One TE340 3D Energy hinge in Satin Nickel Look, SW 125. Optional routing equipment and separately listed installation accessories are purchased separately.

How do I confirm the correct part?

Use stock code HIB226C, manufacturer part number 5 400659 0 12501, the full version name and SW 125. A similar appearance alone does not establish interchangeability.
