Name: TECTUS TE527 3D Invisible Door Hinge – Satin Nickel Look
Brand: SIMONSWERK UK LTD
SKU: HIB202G
Price: 128.48 GBP
Availability: InStock

PRODUCT DESCRIPTION

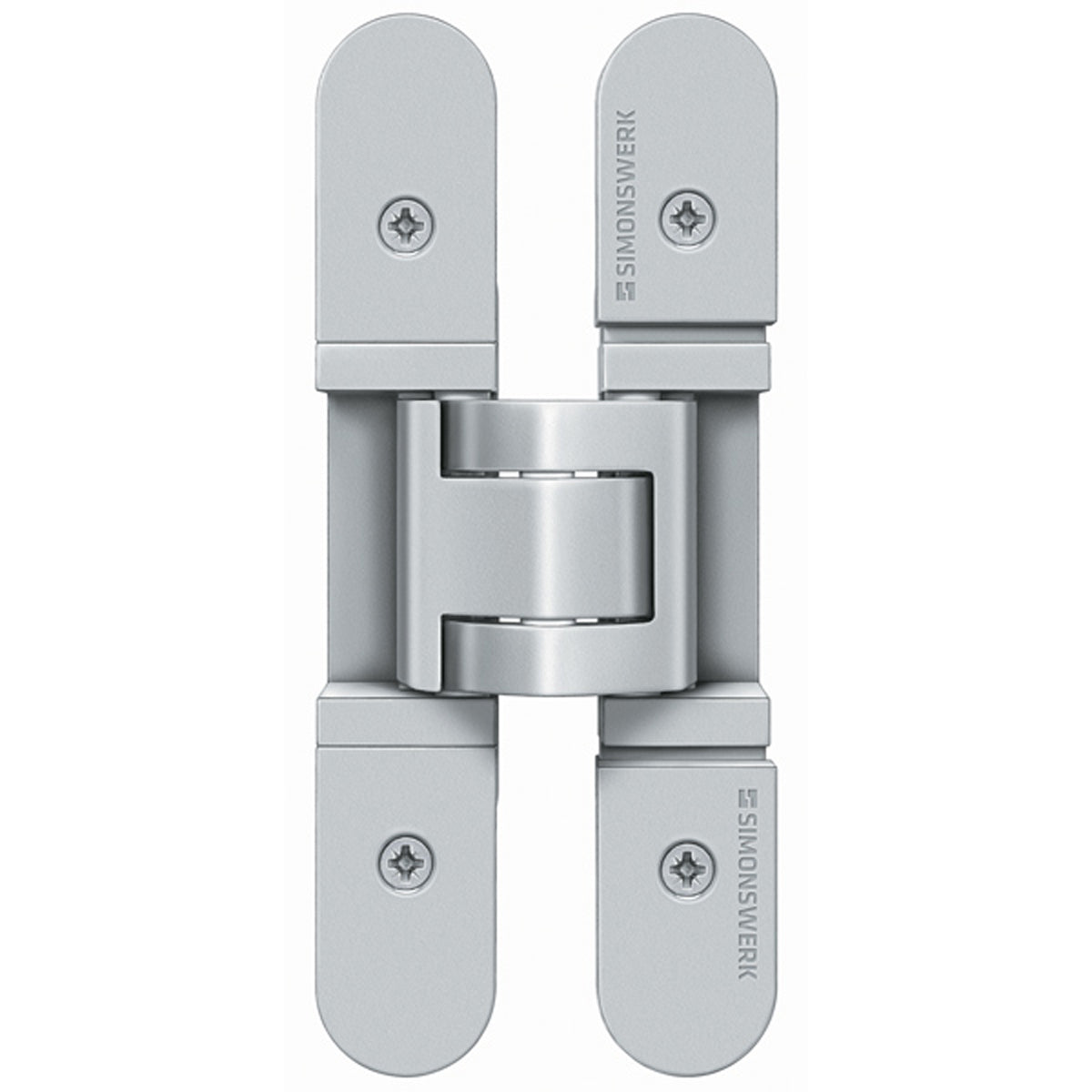

TECTUS TE527 3D concealed hinge in Satin Nickel Look

Manufactured from solid steel, the TE527 3D provides a compact 155 mm hinge format for unrebated heavy-duty doors. Its 3D alignment and maintenance-free slide bearings support a carefully fitted door without visible hinge hardware when closed. Fully invisible when the door is closed, this premium SIMONSWERK hinge lets the door and surrounding interior take centre stage.

Satin Nickel Look gives the open hinge a muted nickel-look appearance. It offers a coordinated visual choice for nickel-look handles and other fittings while keeping the closed door free of exposed hinge knuckles.

Technical specification

Model: TE527 3D, standard version
Finish: Satin Nickel Look (SW 125)
Reference capacity: up to 120 kg using two hinges on a door leaf 1 m wide × 2 m high, subject to manufacturer load conditions
Minimum door thickness: 34 mm
Frame component: 155 × 26 mm
Opening angle: up to 180°
Side adjustment ±3 mm; height adjustment ±3 mm; compression adjustment ±1 mm
Right- and left-hand applications
Maintenance-free slide bearings
Routing cutter diameter: 24 mm; collar ring: 30 mm
Country of origin: Germany
SIMONSWERK manufacturer part number: 5 400562 0 12502
Hart Wholesale stock code: HIB202G
Quantity supplied: one hinge

Optional routing equipment

The manufacturer specifies 52505476 (frame / door) for the routing preparation. These templates require the appropriate universal milling frame. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.

View our TE526/527 routing-template listing and check the supplied component numbers and quantities before ordering. Follow the exact hinge installation instructions; do not assume every template set includes all routing stages.

Optional intumescent protection

Intumescent kit 8820 is an optional accessory, supplied separately, for TE526 3D and TE527 3D. Its packers wrap around the hinge. Whether it is required depends on the tested fire-door assembly, certification and installation instructions; adding the kit alone does not establish a fire rating.

Installation and model selection

Check door dimensions, weight, frame construction, receiver capacity and any closer forces against the SIMONSWERK TE527 3D technical information. The reference capacity is not a per-hinge rating. At 180°, the door may require additional fixing. Use the exact version specification for Energy, A8, FR or other specialist variants.

Compare models and finishes in the TECTUS invisible door hinge range, or contact Hart Wholesale with your installation details.

Is this hinge visible when the door is closed?

No. The TE527 3D is fully concealed when correctly installed and the door is closed.

What does one order unit contain?

One Satin Nickel Look TE527 3D hinge. Routing templates, milling frames and other separately listed accessories are not included.

How do I identify this finish and part?

Specify SW 125 and manufacturer part number 5 400562 0 12502. Hart Wholesale stock code HIB202G identifies this listing. Decorative finish names do not establish the hinge construction material.

Does the quoted capacity apply to one hinge?

No. It is the manufacturer’s reference for two hinges on a 1 m × 2 m door leaf, subject to the full technical conditions. Confirm the selection for your actual door and installation.
