Name: TECTUS TE540 3D A8 Concealed Door Hinge – Rustic Umber
Brand: SIMONSWERK UK LTD
SKU: HIB210L
Price: 119.16 GBP
Availability: InStock

PRODUCT DESCRIPTION

TECTUS TE540 3D A8 in Rustic Umber

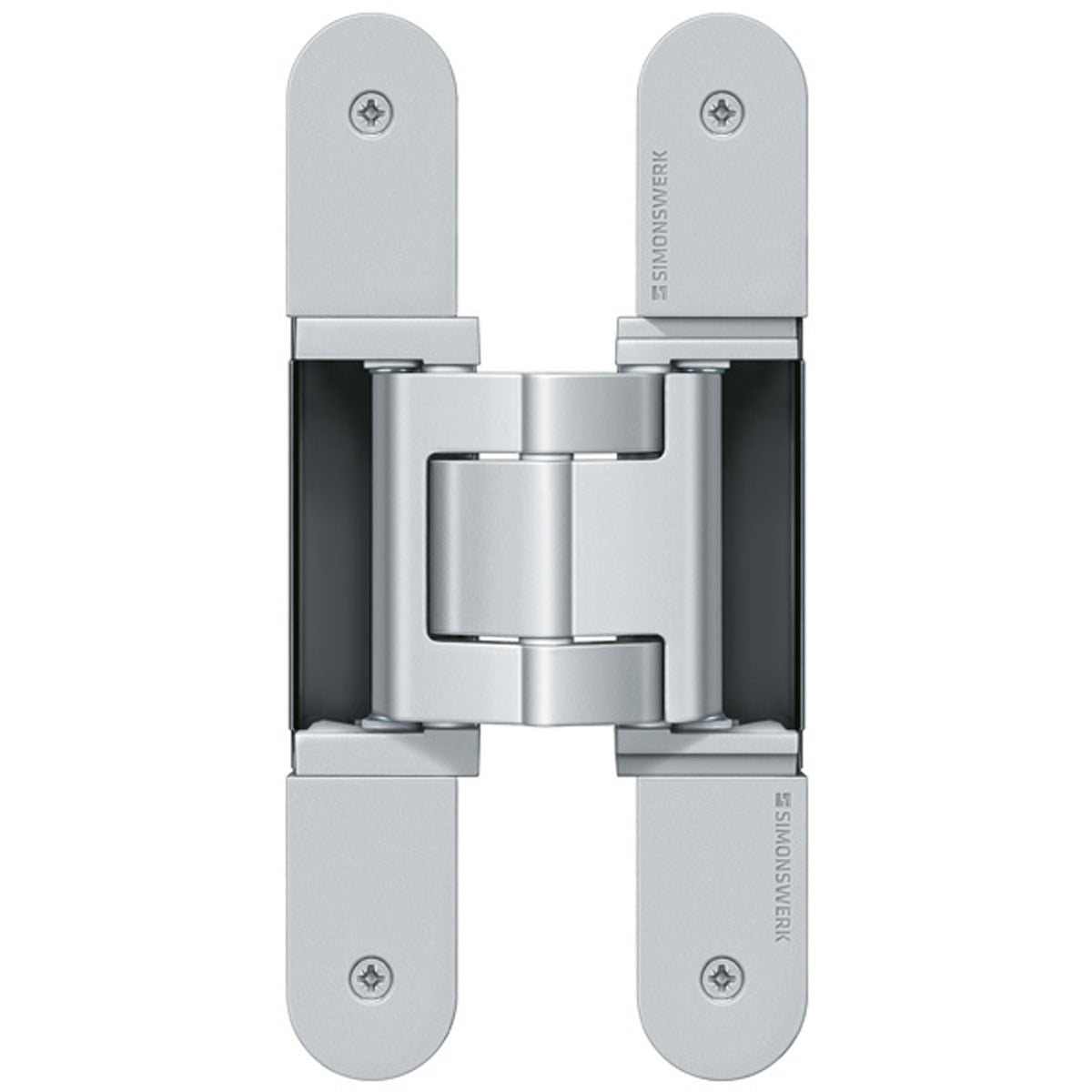

The TE540 3D A8 in Rustic Umber is a premium SIMONSWERK concealed door hinge for carefully specified architectural installations. It is hidden when the door is closed, keeping exposed hinge knuckles out of the finished door line.

The A8 version accommodates claddings up to 8 mm on both sides. Its minimum door thickness of 49 mm includes the claddings. Use the A8 preparation and capacity, rather than figures for the standard model.

Rustic umber offers a darker decorative finish for interiors using earthy tones or contrasting metal details. Its appearance is visible on the open door; the concealed hinge arrangement preserves a clear door line when closed.

Model-specific technical information

Exact model: TE540 3D A8
Version: A8
Finish: Rustic Umber (SW 156)
Reference capacity: up to 100 kg using two hinges on a 1 m × 2 m door leaf, subject to manufacturer technical conditions
Minimum door thickness: 49.0 mm (incl. claddings)
Frame width: 32 mm; hinge length: 200 mm
Country of origin: Germany
SIMONSWERK manufacturer part number: 5 400695 0 15602
Stock code: HIB210L
Quantity supplied: one hinge

comfortable 3D adjustment (side ± 3.0 mm, height ± 3.0 mm, compression ± 1.0 mm). Follow the manufacturer’s sequence when setting alignment.

Optional routing accessories

The manufacturer lists 52506805 (step 1), 52506815 (step 2), 52506825 (step 3), 52506875 (step 3 (without cladding)) for this exact version. Templates require the appropriate universal milling frame when used with the SIMONSWERK jig system. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.

Universal milling frame: check the specified frame and supplied template components before ordering.

Fire-door selection

Suitability for a fire door depends on the complete door construction and supporting certification. Follow the tested assembly and installation instructions, including its specified intumescent protection. Do not transfer a standard model’s approval or kit requirements to this version.

Installation guidance and related hinges

Read the SIMONSWERK TE540 3D A8 technical information and routing instructions before preparation. Check door dimensions, weight, frame construction and any receiver capacity or closer forces. The quoted load is a reference for two hinges, not one hinge. At an opening position of 180°, additional door fixing may be needed.

Browse the TECTUS concealed hinge range for related models and finishes, or contact Hart Wholesale with the exact door details.

Is this the same as a standard TE540 hinge?

Order by the full model and version name: TE540 3D A8. Specialist versions can have different preparation, capacity and accessory requirements. Match the manufacturer number before replacing an existing hinge.

What does one order unit contain?

One TE540 3D A8 hinge in Rustic Umber, SW 156. Optional routing equipment and separately listed installation accessories are purchased separately.

How do I confirm the correct part?

Use stock code HIB210L, manufacturer part number 5 400695 0 15602, the full version name and SW 156. A similar appearance alone does not establish interchangeability.
