Name: TECTUS TE640 3D Invisible Door Hinge – Stainless Steel Look
Brand: SIMONSWERK UK LTD
SKU: HIB204P
Price: 145.02 GBP
Availability: InStock

PRODUCT DESCRIPTION

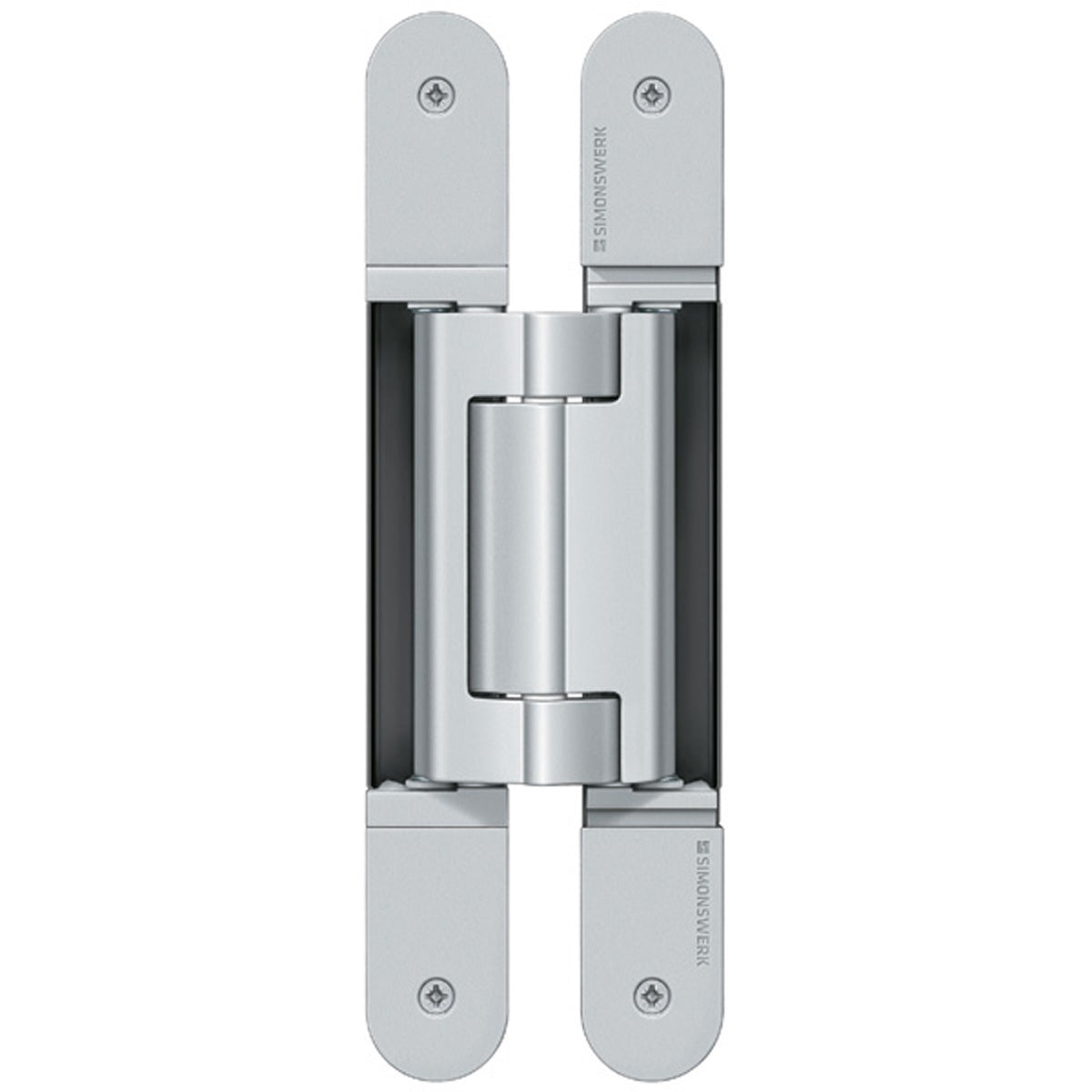

TECTUS TE640 3D concealed hinge in Stainless Steel Look

The 240 mm TE640 3D is designed for heavier unrebated doors. Its higher reference capacity makes it a model to consider for substantial door leaves, subject to the full dimensions, load conditions and appropriate frame preparation. Fully invisible when the door is closed, this premium SIMONSWERK hinge lets the door and surrounding interior take centre stage.

Stainless Steel Look offers the visual character of stainless-steel-look hardware. This is a finish designation, so it must not be treated as confirmation that the hinge body is made from stainless steel.

Technical specification

Model: TE640 3D, standard version
Finish: Stainless Steel Look (SW 126)
Reference capacity: up to 200 kg using two hinges on a door leaf 1 m wide × 2 m high, subject to manufacturer load conditions
Minimum door thickness: 40 mm
Frame component: 240 × 32 mm
Opening angle: up to 180°
Side adjustment ±3 mm; height adjustment ±3 mm; compression adjustment ±1 mm
Right- and left-hand applications
Maintenance-free slide bearings
Routing cutter diameter: 24 mm; collar ring: 30 mm
Country of origin: Germany
SIMONSWERK manufacturer part number: 5 400696 0 12602
Hart Wholesale stock code: HIB204P
Quantity supplied: one hinge

Optional routing equipment

The manufacturer specifies 52506595 (step 1), 52506895 (step 2) for the routing preparation. These templates require the appropriate universal milling frame. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.

View our TE640 routing-template listing and check the supplied component numbers and quantities before ordering. Follow the exact hinge installation instructions; do not assume every template set includes all routing stages.

Installation and model selection

Check door dimensions, weight, frame construction, receiver capacity and any closer forces against the SIMONSWERK TE640 3D technical information. The reference capacity is not a per-hinge rating. At 180°, the door may require additional fixing. Use the exact version specification for Energy, A8, FR or other specialist variants.

Compare models and finishes in the TECTUS invisible door hinge range, or contact Hart Wholesale with your installation details.

Is this hinge visible when the door is closed?

No. The TE640 3D is fully concealed when correctly installed and the door is closed.

What does one order unit contain?

One Stainless Steel Look TE640 3D hinge. Routing templates, milling frames and other separately listed accessories are not included.

How do I identify this finish and part?

Specify SW 126 and manufacturer part number 5 400696 0 12602. Hart Wholesale stock code HIB204P identifies this listing. Decorative finish names do not establish the hinge construction material.

Does the quoted capacity apply to one hinge?

No. It is the manufacturer’s reference for two hinges on a 1 m × 2 m door leaf, subject to the full technical conditions. Confirm the selection for your actual door and installation.
