Name: TECTUS TE640 3D A8 Energy Concealed Door Hinge – Satin Chrome Look
Brand: SIMONSWERK UK LTD
SKU: HIB233C
Price: 278.78 GBP
Availability: InStock

PRODUCT DESCRIPTION

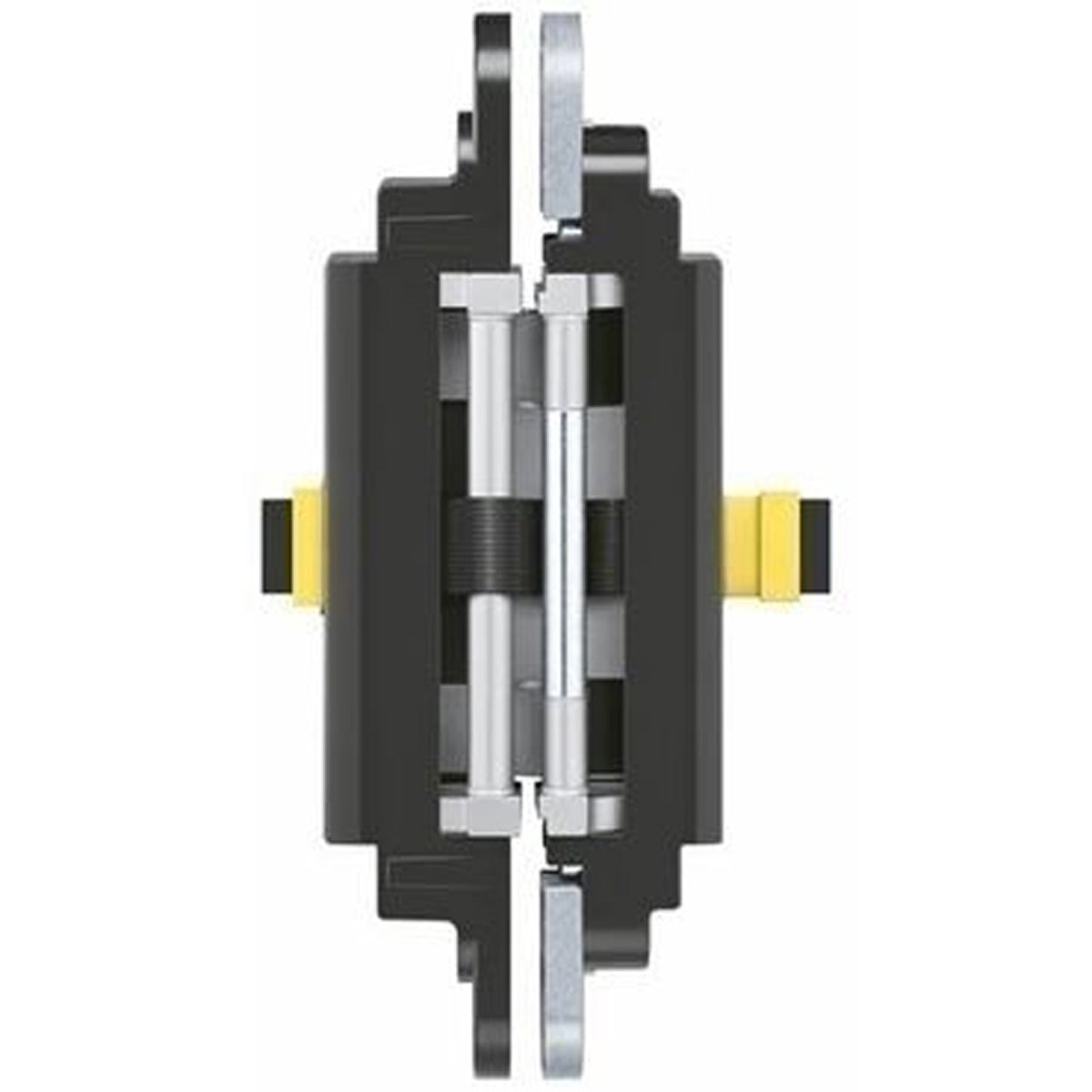

TECTUS TE640 3D A8 Energy in Satin Chrome Look

The TE640 3D A8 Energy in Satin Chrome Look is a premium SIMONSWERK concealed door hinge for carefully specified architectural installations. It is hidden when the door is closed, keeping exposed hinge knuckles out of the finished door line.

The A8 version accommodates claddings up to 8 mm on both sides. Its minimum door thickness of 49 mm includes the claddings. Use the A8 preparation and capacity, rather than figures for the standard model. The Energy version provides permanent energy transfer through the hinge for suitable powered door components. The manufacturer specifies two TECTUS Energy connection adapters per hinge. Select the adapters and wiring to the connection plan; do not assume separately listed adapters or cables are included.

Satin Chrome Look provides a cool metallic appearance for coordinating with chrome-look interior fittings. The word look describes the finish appearance; it should not be used to infer the construction material of the hinge.

Model-specific technical information

Exact model: TE640 3D A8 Energy
Version: A8 ENERGY
Finish: Satin Chrome Look (SW 124)
Reference capacity: up to 160 kg using two hinges on a 1 m × 2 m door leaf, subject to manufacturer technical conditions
Minimum door thickness: 49.0 mm (incl. claddings)
Frame width: 32 mm; hinge length: 240 mm
Country of origin: Germany
SIMONSWERK manufacturer part number: 5 400707 0 12401
Stock code: HIB233C
Quantity supplied: one hinge

comfortable 3D adjustment (side ± 3.0 mm, height ± 3.0 mm, compression ± 1.0 mm). Follow the manufacturer’s sequence when setting alignment.

Optional routing accessories

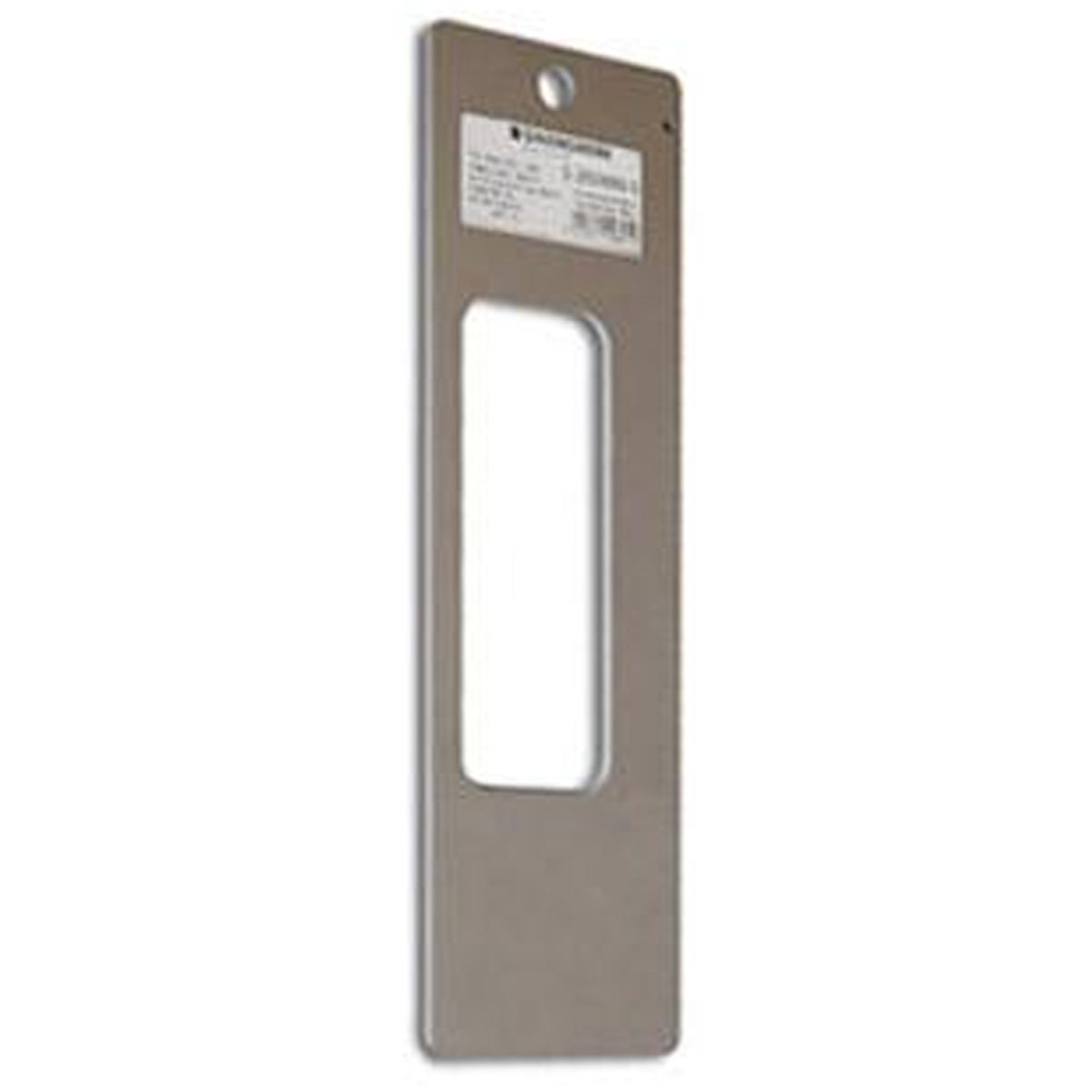

The manufacturer lists 52506595 (step 1), 52506885 (step 3 (without cladding)), 52506895 (step 2), 52506905 (step 3), 52509395 (additional routing Energy) for this exact version. Templates require the appropriate universal milling frame when used with the SIMONSWERK jig system. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.

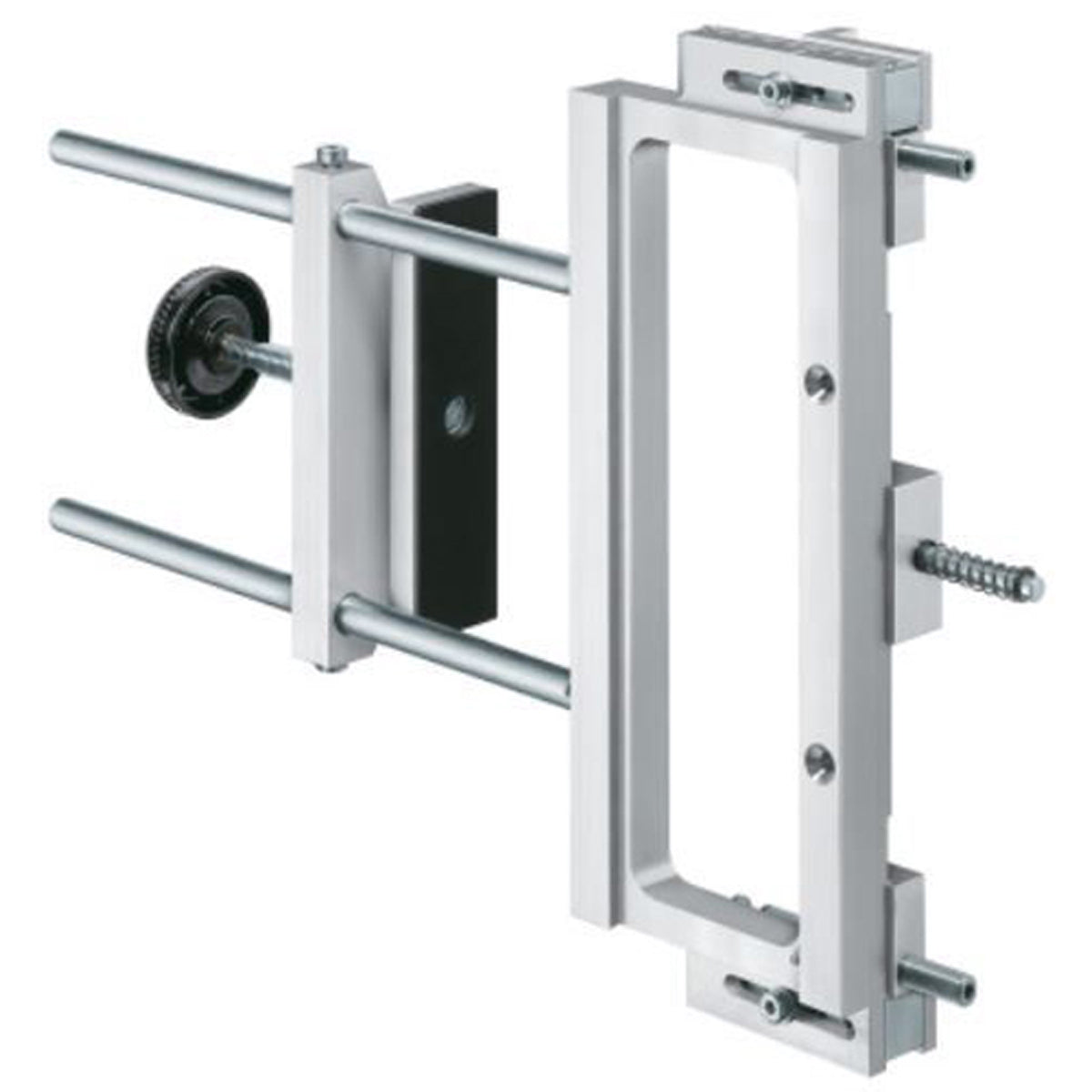

Universal milling frame: check the specified frame and supplied template components before ordering.

Fire-door selection

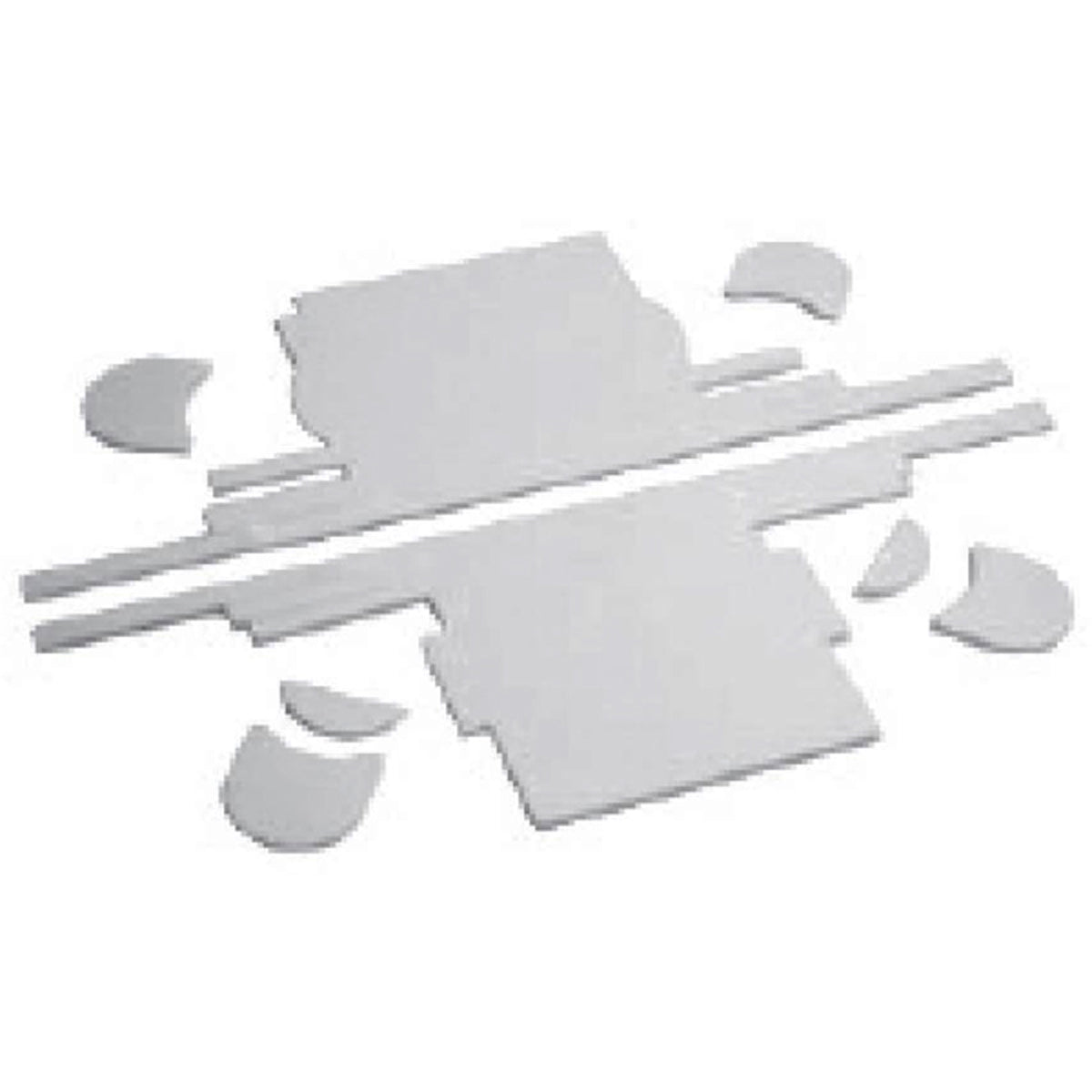

Suitability for a fire door depends on the complete door construction and supporting certification. Follow the tested assembly and installation instructions, including its specified intumescent protection. Do not transfer a standard model’s approval or kit requirements to this version.

Installation guidance and related hinges

Read the SIMONSWERK TE640 3D A8 Energy technical information and routing instructions before preparation. Check door dimensions, weight, frame construction and any receiver capacity or closer forces. The quoted load is a reference for two hinges, not one hinge. At an opening position of 180°, additional door fixing may be needed.

Browse the TECTUS concealed hinge range for related models and finishes, or contact Hart Wholesale with the exact door details.

Is this the same as a standard TE640 hinge?

Order by the full model and version name: TE640 3D A8 Energy. Specialist versions can have different preparation, capacity and accessory requirements. Match the manufacturer number before replacing an existing hinge.

What does one order unit contain?

One TE640 3D A8 Energy hinge in Satin Chrome Look, SW 124. Optional routing equipment and separately listed installation accessories are purchased separately.

How do I confirm the correct part?

Use stock code HIB233C, manufacturer part number 5 400707 0 12401, the full version name and SW 124. A similar appearance alone does not establish interchangeability.
