TECTUS TE680 3D FD in Satin Chrome Look

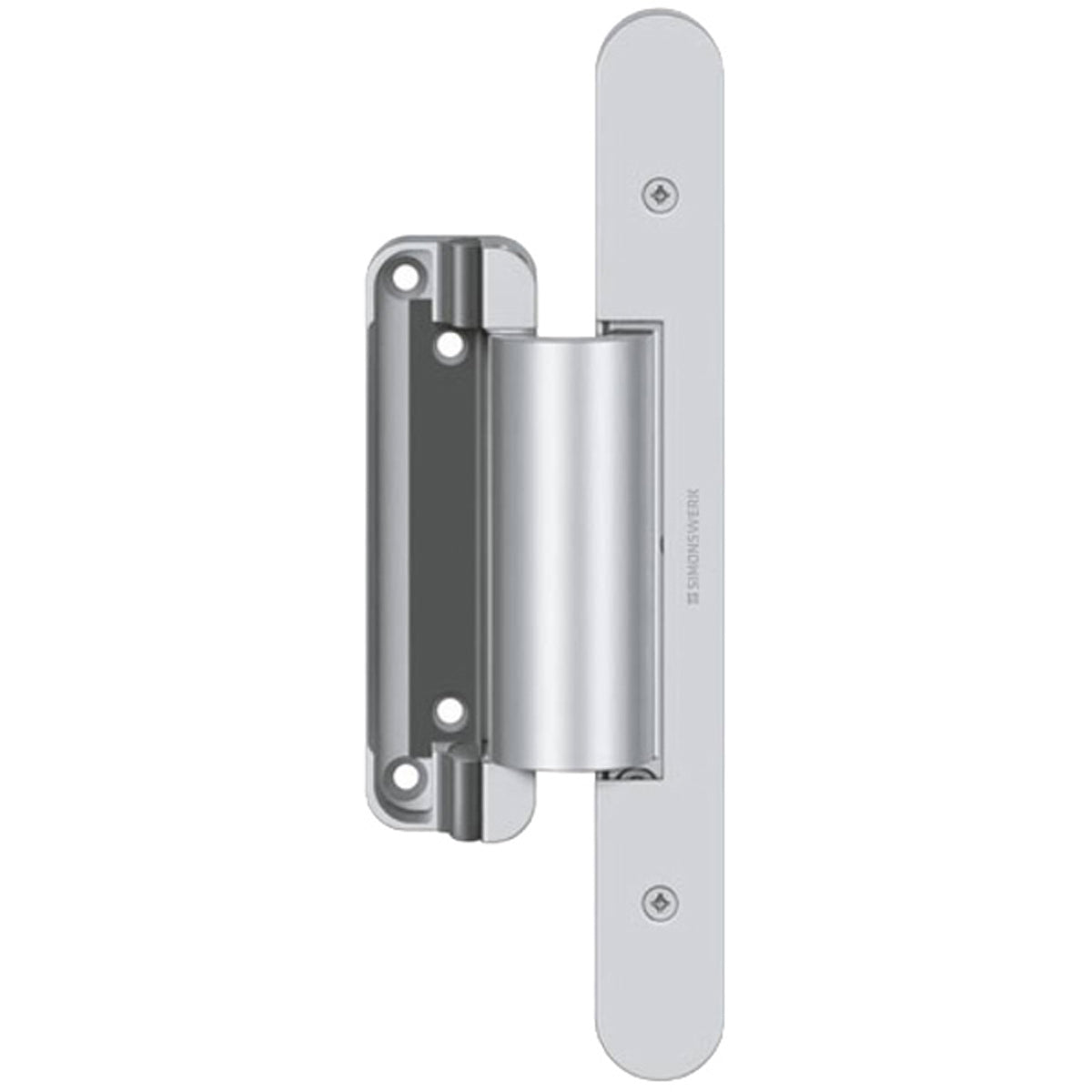

The TE680 3D FD in Satin Chrome Look is a premium SIMONSWERK concealed door hinge for carefully specified architectural installations. It is hidden when the door is closed, keeping exposed hinge knuckles out of the finished door line.

The TE680 3D FD is intended for rebated timber entrance doors and incorporates a continuous sealing system with an 18 mm overlap width. Check the FD preparation and relevant sealing details before machining the door.

Satin Chrome Look provides a cool metallic appearance for coordinating with chrome-look interior fittings. The word look describes the finish appearance; it should not be used to infer the construction material of the hinge.

Model-specific technical information

• Exact model: TE680 3D FD
• Version: REBATED FD
• Finish: Satin Chrome Look (SW 124)
• Reference capacity: up to 160 kg using two hinges on a 1 m × 2 m door leaf, subject to manufacturer technical conditions
• Minimum door thickness: 60.0 mm
• Frame width: 30 mm; hinge length: 250 mm
• Country of origin: Germany
• SIMONSWERK manufacturer part number: 5 400685 0 12403
• Stock code: HIB219A
• Quantity supplied: one hinge

comfortable 3D adjustment (side ± 3.0 mm, height ± 3.0 mm, compression ± 1.5 mm). Follow the manufacturer’s sequence when setting alignment.

Optional routing accessories

The manufacturer lists 52511095 (door, overlap 21 mm and 22 mm), 52511105 (door, overlap 23 mm and 24 mm), 52511115 (door, overlap 25 mm, 26 mm and 27 mm), 52511125 (frame, overlap 21 mm), 52511135 (frame, overlap 22 mm and 23 mm), 52511145 (frame, overlap 24 mm and 25 mm), 52511155 (frame, overlap 26 mm), 52511165 (frame, overlap 27 mm) for this exact version. Templates require the appropriate universal milling frame when used with the SIMONSWERK jig system. Jigs, templates and milling frames are optional accessories, purchased separately from the hinge.

Installation guidance and related hinges

Read the SIMONSWERK TE680 3D FD technical information and routing instructions before preparation. Check door dimensions, weight, frame construction and any receiver capacity or closer forces. The quoted load is a reference for two hinges, not one hinge. At an opening position of 180°, additional door fixing may be needed.

Browse the TECTUS concealed hinge range for related models and finishes, or contact Hart Wholesale with the exact door details.

Is this the same as a standard TE680 hinge?

Order by the full model and version name: TE680 3D FD. Specialist versions can have different preparation, capacity and accessory requirements. Match the manufacturer number before replacing an existing hinge.

What does one order unit contain?

One TE680 3D FD hinge in Satin Chrome Look, SW 124. Optional routing equipment and separately listed installation accessories are purchased separately.

How do I confirm the correct part?

Use stock code HIB219A, manufacturer part number 5 400685 0 12403, the full version name and SW 124. A similar appearance alone does not establish interchangeability.
