Grass Tiomos PCC Concealed Corner Hinge — 35mm Cup, Pie-Cut, Screw-On, Without Soft-Close

The Grass Tiomos PCC is a premium concealed cup hinge engineered specifically for pie-cut corner cabinet doors — the angled doors used in corner units where two doors meet at 45°. With a full-cup 35mm drill hole and screw-on fixing, it installs cleanly into standard European-drilled door blanks without the need for a press-fit clip plate.

Offering 3-dimensional adjustment via a compatible mounting plate, the Tiomos PCC delivers precise door alignment across height, depth, and lateral axes. The straight crank type suits standard overlay applications, and the low cup drilling depth of 11.8mm makes it suitable for doors up to 24mm thick — with a factory setting optimised for 19mm door thickness at 3.5mm cup distance.

Supplied without soft-close mechanism — ideal for installations where Tiomos Click-On soft-close or Blumotion is added separately, or where a clean, unassisted close is preferred.

Required Products

The following mounting plate is required for installation:

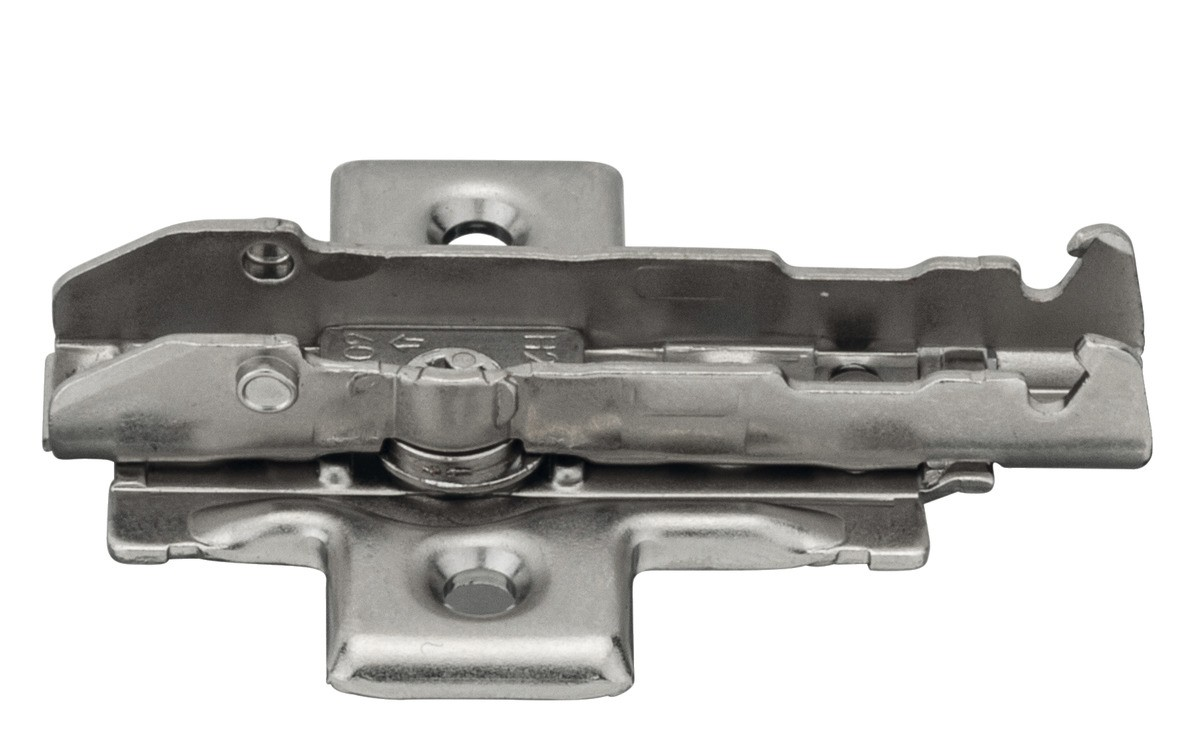

• Grass Tiomos Cruciform Mounting Plate — Hospa Screw, 0mm Height (Art. 348.38.511)

Key Features

• Designed for pie-cut corner cabinet doors — connects two angled door fronts in a corner unit
• 35mm cup diameter with full-cup drill hole
• Low cup drilling depth: 11.8mm
• Suitable for door thickness up to 24mm
• Drilling pattern: 45/9.5
• Crank type: Straight (overlay)
• Cup fixing: Screw-on
• 3-dimensional adjustment with appropriate mounting plate
• Without soft-close — compatible with Tiomos Click-On soft-close accessories
• Material: Zinc alloy
• Finish: Nickel-plated (NP)
• Compatible with Tiomos Click On System mounting plates
• Hospa Ø 3.5mm countersunk screws required — order separately

Technical Specifications

• Art. No.: 348.29.600
• Model No.: F045138517228
• Cup drilling diameter: 35mm
• Cup drilling depth: 11.8mm
• Drilling pattern: 45/9.5
• Crank type: Straight
• Door processing: With cup drilling
• Cup fixing: Screw fixing
• Function: Without soft-close
• Material: Zinc alloy
• Max door thickness: 24mm

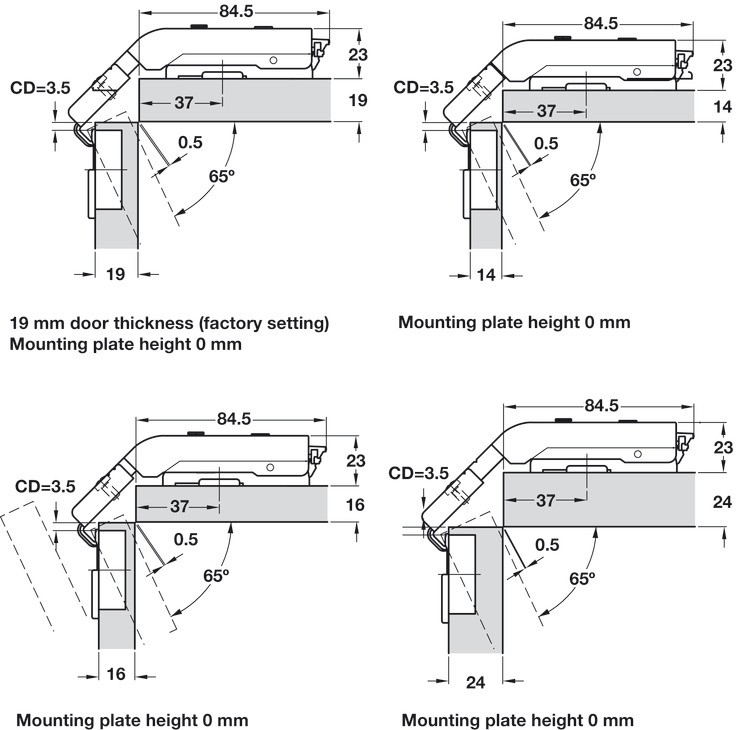

• Factory setting: 19mm door thickness, 3.5mm cup distance
• Adjustment: 3-dimensional (with appropriate mounting plate)
