Convert compatible MOVENTO runners and LEGRABOX drawer components to smooth handleless operation with this TIP-ON BLUMOTION L5 push-to-open set. A light press on the drawer front activates the mechanical opening support, while the integrated BLUMOTION system provides controlled soft closing.

The L5 version is intended for heavier pull-outs with a recommended total drawer weight of 35–70kg. It is designed for compatible 70kg cabinet profiles with nominal runner lengths from 450–650mm. Always confirm the runner type, nominal length and expected total pull-out weight before ordering.

Push-to-open and soft-close operation

TIP-ON BLUMOTION combines mechanical push-to-open convenience with soft-close control. It is ideal for handleless kitchens, utility furniture, storage units and other furniture where a clean, uninterrupted drawer front is required.

No electrical connection is needed. Correct component selection, accurate installation and front-gap adjustment are essential for reliable opening and closing.

Designed for heavier drawers and pull-outs

The L5 operating range is recommended for a total pull-out weight of 35–70kg. Total pull-out weight means the combined weight of the drawer, front and contents. This set is recommended for use with compatible 70kg MOVENTO or LEGRABOX cabinet profiles.

• System: TIP-ON BLUMOTION
• Unit: L5
• Recommended total pull-out weight: 35–70kg
• Compatible runner lengths: 450–650mm nominal length
• Recommended cabinet profile: Compatible 70kg profile
• Compatible systems: Selected MOVENTO and LEGRABOX applications
• Opening: Mechanical push-to-open
• Closing: Soft-close BLUMOTION

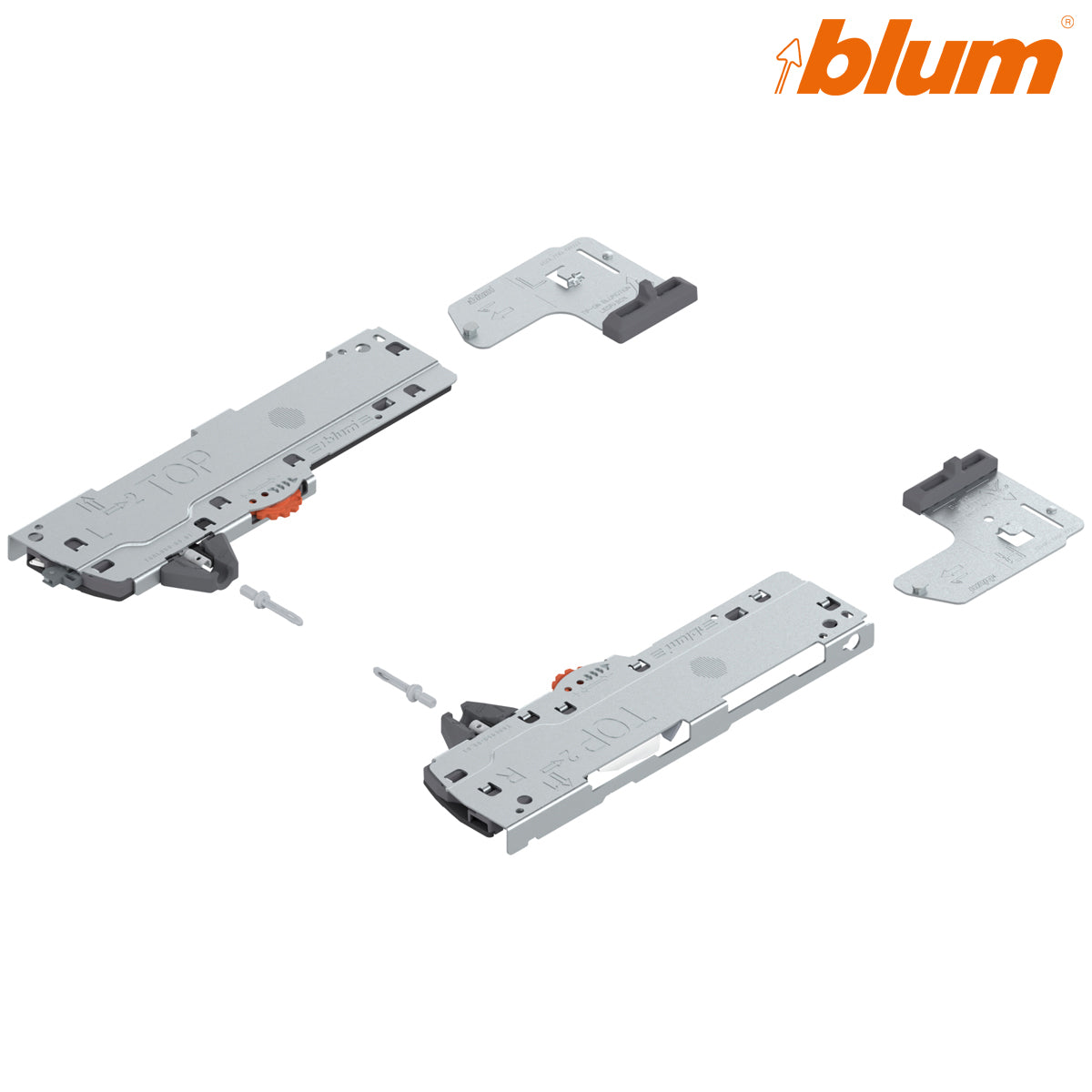

Set contents

• TIP-ON BLUMOTION operating units for the left and right sides
• TIP-ON BLUMOTION latches for the left and right sides
• Two synchronisation adapters

Please note: Drawer runners and the synchronisation connecting bar are not included. The correct connecting bar must be ordered separately when required.

Synchronised opening

Synchronisation helps enlarge the trigger area across the drawer front, allowing the push-to-open action to respond more consistently when the front is pressed away from the centre. The adapters supplied with this set connect the operating units to the separately available synchronisation bar.

Check the internal cabinet width and system requirements before selecting the connecting bar. Follow the appropriate MOVENTO or LEGRABOX installation instructions when cutting and fitting the bar.

Compatibility checks

Before ordering, confirm that the existing or planned drawer uses compatible MOVENTO runners or LEGRABOX drawer components, a suitable 70kg cabinet profile and a nominal runner length between 450mm and 650mm. Also calculate the expected total weight of the completed pull-out.

This set is a system-specific conversion component and is not a universal push-to-open accessory. It should not be used with an unverified drawer runner system.

Frequently asked questions

What does this set do?

It adds mechanical push-to-open operation and controlled soft closing to a compatible MOVENTO or LEGRABOX drawer system.

Which drawer weights is the L5 unit designed for?

The recommended total pull-out weight is 35–70kg, including the drawer, drawer front and contents.

Which runner lengths are compatible?

The L5 set is intended for compatible nominal runner lengths from 450mm to 650mm.

Are the MOVENTO or LEGRABOX runners included?

No. This is the TIP-ON BLUMOTION operating set only. Compatible drawer runners must already be installed or purchased separately.

Is the synchronisation connecting bar included?

No. Two synchronisation adapters are included, but the connecting bar is a separate product and must be ordered when required.

Does the system require electricity?

No. TIP-ON BLUMOTION uses a mechanical opening system combined with soft-close operation.
