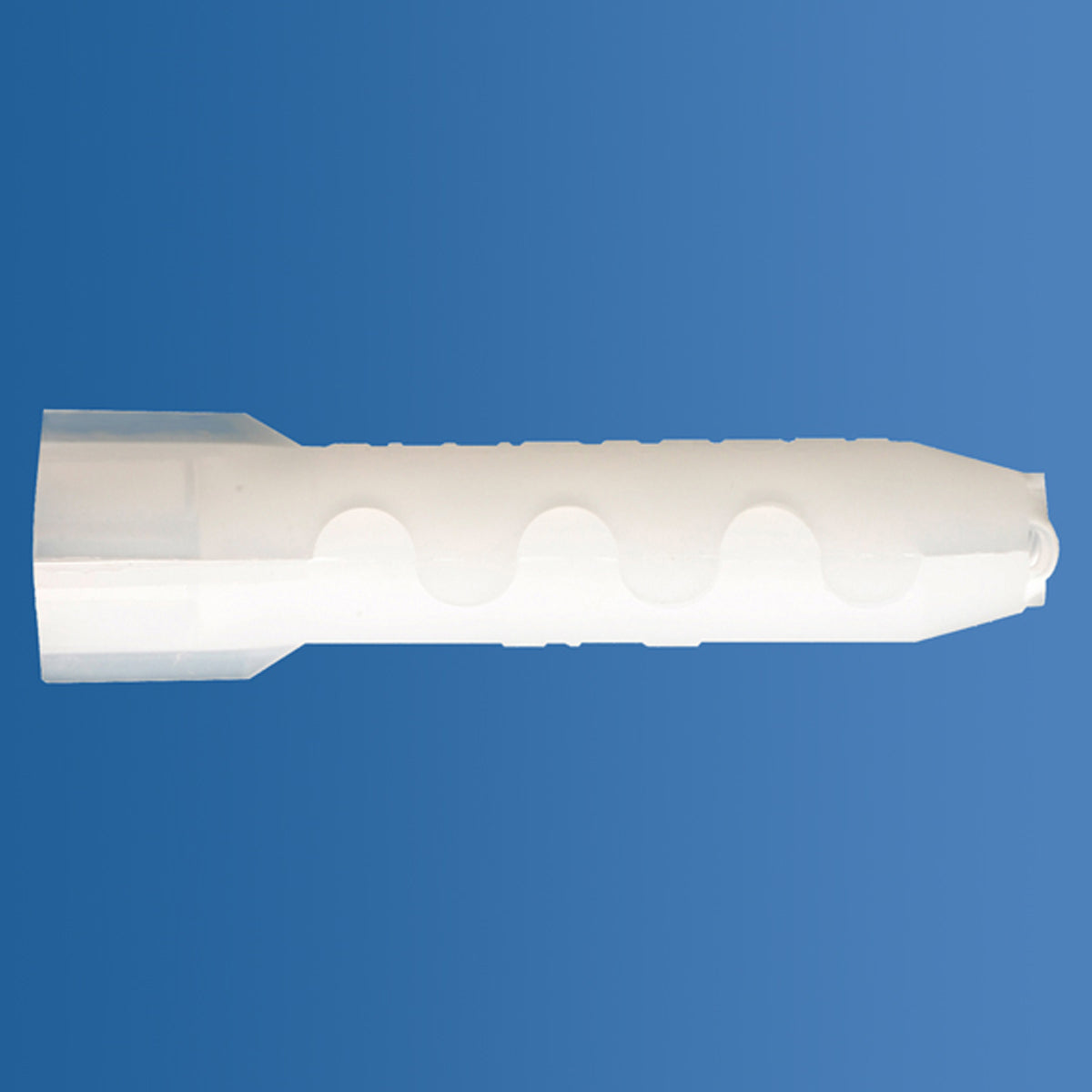

Toggler ALLIGATOR A10 10mm Solid-Wall Anchor

The Toggler ALLIGATOR A10 is a 10mm unflanged wall anchor designed primarily for secure fixing into suitable solid materials. Its polypropylene body expands and conforms inside the drilled hole as the screw is installed, helping create a firm connection in materials such as concrete, brick, stone and masonry.

The unflanged A10 design is suitable for push-through installation where the anchor is inserted through the fixture. It requires a 10mm hole with a minimum depth of approximately 64mm.

Key benefits

• For suitable solid materials: designed for fixing into concrete, brick, stone, masonry and compatible blockwork.
• 10mm fixing diameter: the anchor and required drill diameter are both 10mm.
• Unflanged design: suitable for push-through installation through an appropriate fixture.
• Polypropylene construction: the anchor body does not corrode.
• Anti-rotation design: helps resist spinning while the screw is driven.
• Reusable fixing point: a suitable screw can normally be removed and reinserted without automatically replacing the anchor, provided the anchor and substrate remain sound.

Typical applications

• Concrete walls
• Brick and stone
• Solid masonry
• Compatible concrete and masonry block
• Wall-mounted brackets, rails and suitable fixtures
• Commercial maintenance and installation work

Always match the screw and fixing method to the substrate and intended load. The safe working load depends on the base material, hole quality, screw size, embedment depth, fixture and distance from unsupported edges.

Technical specifications

Related Toggler fixings

Compare the smaller ALLIGATOR A8 or choose the SnapSkru SP hollow-wall anchor with screws for suitable plasterboard and drywall applications.

Installation guidance

1. Confirm that the substrate is suitable and able to support the intended fixture.
2. Check for concealed pipes and electrical cables.
3. Use a correctly sized 10mm drill bit for the wall material.
4. Drill a straight hole to a minimum depth of approximately 64mm.
5. Remove loose drilling dust from the hole.
6. For push-through installation, align the fixture and insert the A10 anchor through the fixture into the hole.
7. Insert a compatible fully threaded screw or lag bolt.
8. Tighten until the fixture is secure without overtightening or damaging the anchor or substrate.

Only the threaded section of the screw should engage within the anchor. Any unthreaded shank should remain within the fixture rather than entering the anchor body.

Frequently asked questions

What materials can the A10 be used in?

The A10 is intended primarily for suitable solid materials including concrete, brick, stone and masonry. The condition and strength of the substrate must be checked before installation.

What size drill bit is required?

Use a 10mm drill bit suitable for the wall material.

How deep should the hole be?

The minimum verified hole depth is approximately 64mm. The hole must also accommodate the selected screw and fixture thickness.

Is the A10 flanged?

No. The A10 is an unflanged anchor intended for suitable push-through installation. Toggler AF models are the flanged versions.

Can the A10 be used in plasterboard?

This listing is positioned primarily for solid-wall materials. No plasterboard load is published for this size, so select a fixing specifically rated for the relevant board construction.

Is a screw included?

The current product record does not confirm that a screw is included. A suitable screw or lag bolt should be sourced separately unless the packaging confirms otherwise.

How much weight can the A10 support?

The safe working load depends on the substrate, screw, embedment, installation quality, fixture and edge distance. Consult verified technical data for the exact installation.

What is the Hart Wholesale stock code?

The Hart Wholesale stock code is SFT002D.
