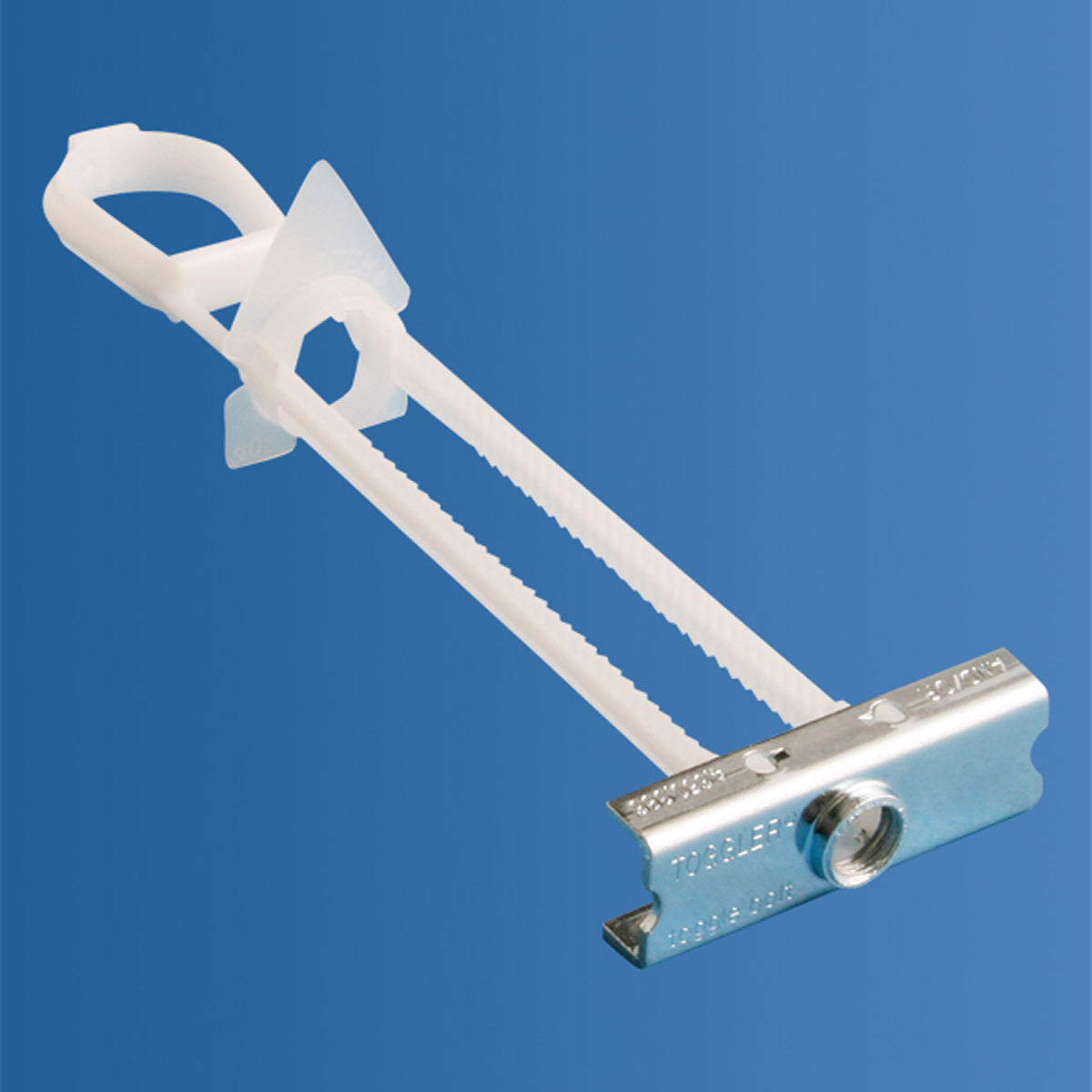

Toggler SNAPTOGGLE BM10S Stainless Hollow-Wall Anchor

The Toggler SNAPTOGGLE BM10S is a stainless-channel hollow-wall anchor designed to create a secure M10 metal-to-metal fixing point in compatible cavity-wall materials. The 304 stainless steel channel is positioned behind the wall using the attached straps and retained by a polypropylene cap.

The BM10S requires a 19mm installation hole, accommodates a 10–64mm grip range and needs at least 48mm clear space behind the wall for installation.

Key benefits

• 304 stainless steel channel: provides a stainless alternative to the standard zinc-plated BM10 channel.
• M10 threaded fixing: creates a reusable metal-to-metal connection for a compatible M10 bolt.
• Removable fixture: the bolt can be removed while the correctly installed anchor remains behind the wall.
• Controlled positioning: the straps hold the channel against the rear surface while the cap is installed.
• Defined grip range: accommodates compatible wall and fixture build-ups from 10mm to 64mm.
• Positive rear support: the solid channel spreads the fixing force behind the wall.

Typical applications

• Suitable hollow and cavity-wall installations
• Plasterboard and drywall where permitted by the manufacturer
• Wall-mounted brackets, rails and suitable fixtures
• Cabinet and shelving installations
• Commercial maintenance and refurbishment work

The safe working load depends on the wall material, wall thickness, substrate condition, anchor spacing, fixture design and loading direction. Do not publish a universal load figure without verified technical data for the exact installation.

Technical specifications

Related Toggler fixings

Compare the standard zinc-plated BM10, the stainless BM8S or the Toggler Hollow Wall Anchor with Screw.

Installation guidance

1. Confirm that the wall material, wall thickness and cavity depth are suitable.
2. Check for concealed pipes and electrical cables before drilling.
3. Drill a clean 19mm hole.
4. Pass the stainless steel channel through the hole.
5. Pull the straps forward until the channel sits flat against the rear of the wall.
6. Slide the plastic cap along the straps until its flange sits flush against the wall.
7. Move the straps from side to side to snap them off level with the cap.
8. Position the fixture and insert a compatible M10 bolt.
9. Tighten securely without crushing or damaging the wall material.

The required bolt length depends on the wall thickness and the thickness of the item being fixed. Do not publish a universal bolt length unless the supplied bolt specification is confirmed.

Frequently asked questions

What is the difference between BM10 and BM10S?

The BM10S uses a 304 stainless steel metal channel. The standard BM10 uses a zinc-plated steel channel. The straps and cap are polymer components on both versions.

What thread size does the BM10S accept?

The BM10S uses an M10 × 1.5 metric thread.

What size installation hole is required?

The BM10S requires a 19mm installation hole. Do not use the 13mm specification associated with the smaller BM5 and BM6 models.

What wall thickness can it accommodate?

The verified grip range is 10–64mm. A minimum clear space of 48mm is required behind the wall.

Can the fixture be removed after installation?

Yes. The compatible bolt can be removed while the correctly installed anchor remains behind the wall, allowing the fixture to be removed and refitted.

Is an M10 bolt included?

The current product record does not confirm that a bolt is included. A compatible M10 bolt should be sourced separately unless the packaging confirms otherwise.

How much weight can the BM10S support?

The safe working load depends on the substrate, wall thickness, installation quality, fixing spacing, fixture and loading direction. Consult verified technical information for the exact application.

Is the BM10S suitable for outdoor or marine use?

The anchor has a 304 stainless steel channel, but complete installation suitability also depends on the bolt, surrounding components and environment. Do not claim exterior or marine suitability without verified guidance.
