Trend PH/JIG/BK 3-in-1 Pocket Hole Jig Kit

Create strong, accurate pocket-hole joints in solid timber and sheet materials with the Trend PH/JIG/BK 3-in-1 Pocket Hole Jig. Its versatile design can produce either twin or single pocket holes, making it suitable for wide boards, narrow components, new woodworking projects and repair work.

The hardened drilling sleeves guide the supplied 9.5 mm HSS drill bit accurately, helping produce consistent pocket holes. Tool-free adjustment, reversible depth gauges and a built-in drill-depth gauge make setting up the jig quick and straightforward.

Three versatile configurations

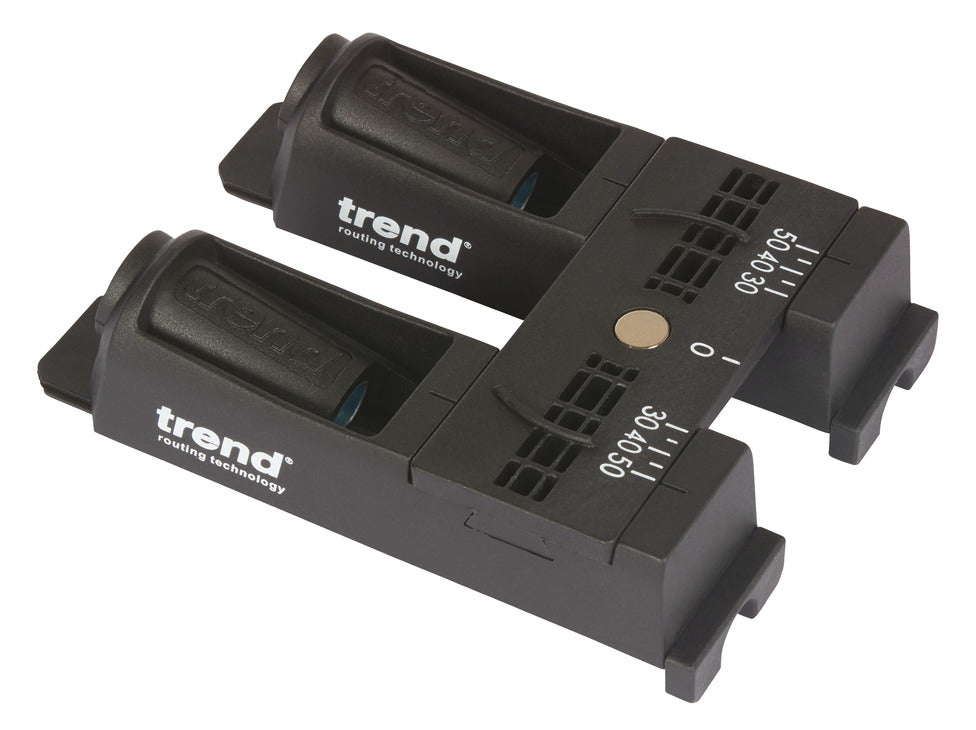

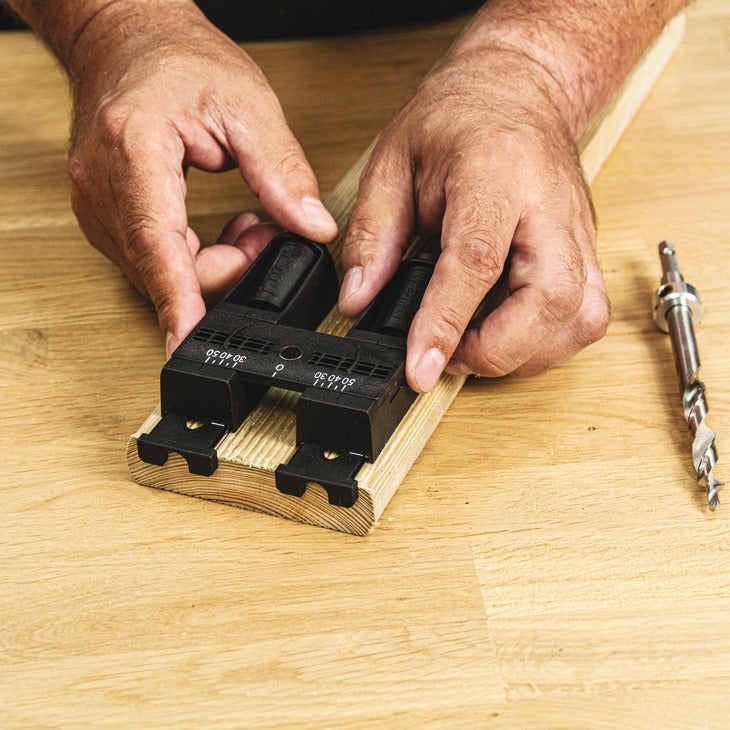

• Twin-hole configuration: produces two consistently spaced pocket holes for wider components.
• Single-hole configuration: suitable for narrow stock and individual fixing positions.
• Repair configuration: the adaptor plate and reversible depth gauges help position the jig for repairs and work in restricted areas.

Key features

• Multi-function pocket-hole jig for single or twin-hole drilling
• Suitable for material from 12.7 mm to 38 mm thick

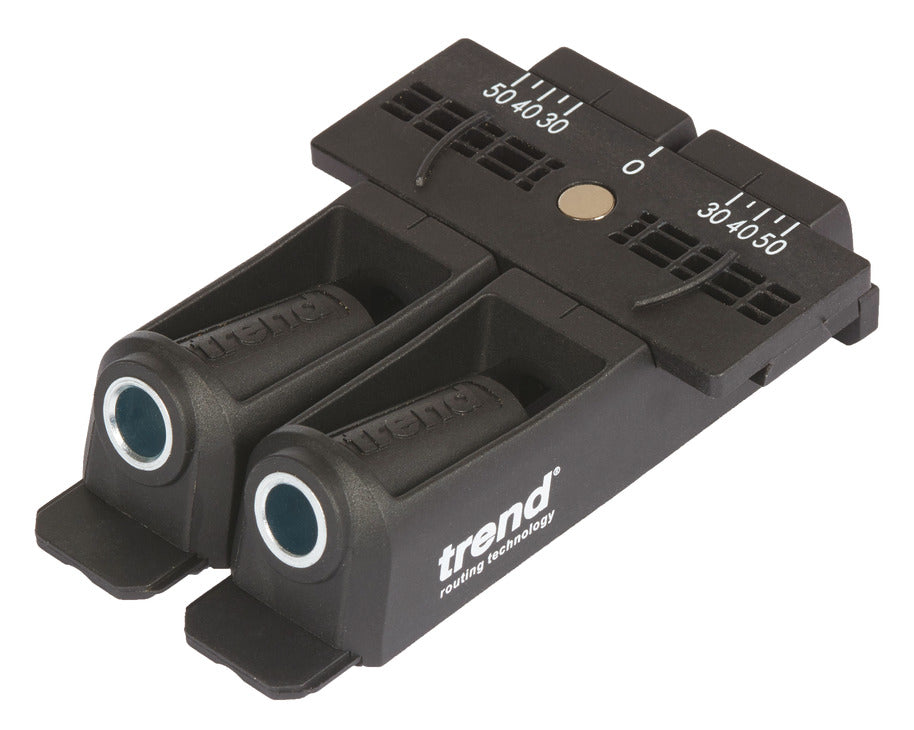

• Adjustable hole pitch from 28 mm to 50 mm
• Hardened drilling sleeves for accurate, consistent pocket holes
• Suitable for both wide and narrow workpieces

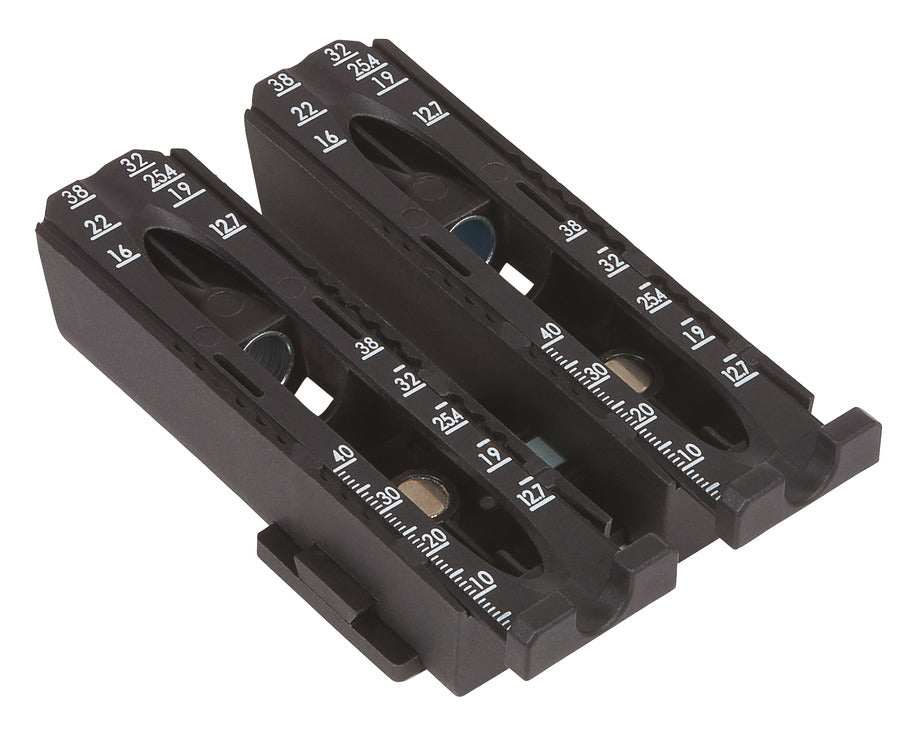

• Reversible depth gauges for new projects and repair work

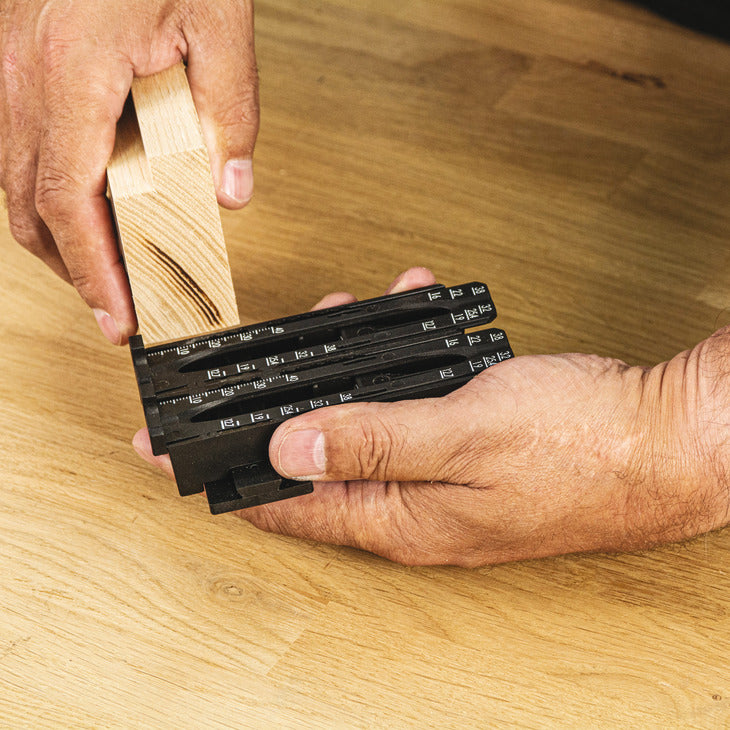

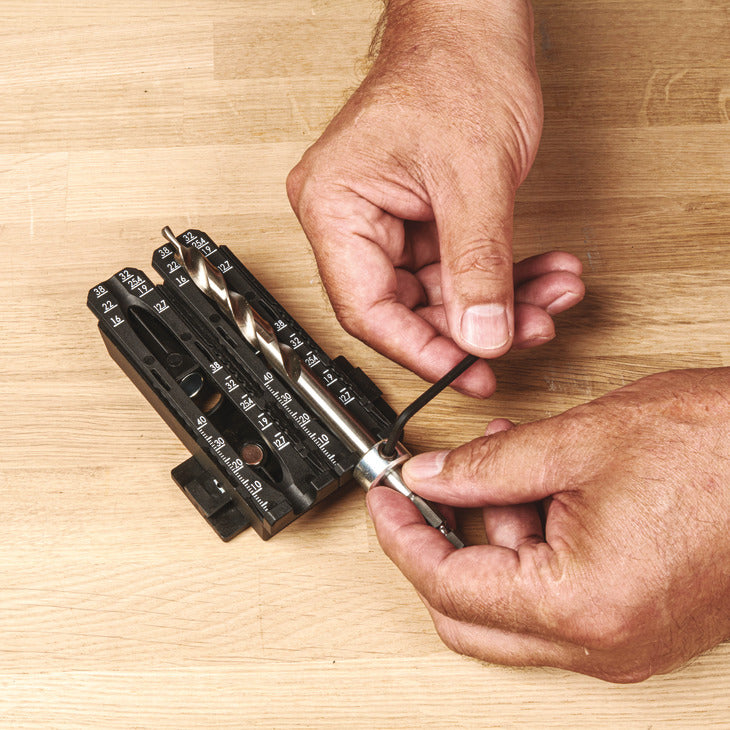

• Built-in gauge for fast drill-depth setting
• Fast, tool-free adjustment
• Portable design for workshop or on-site use
• Suitable for hardwood, softwood and wood-based sheet materials

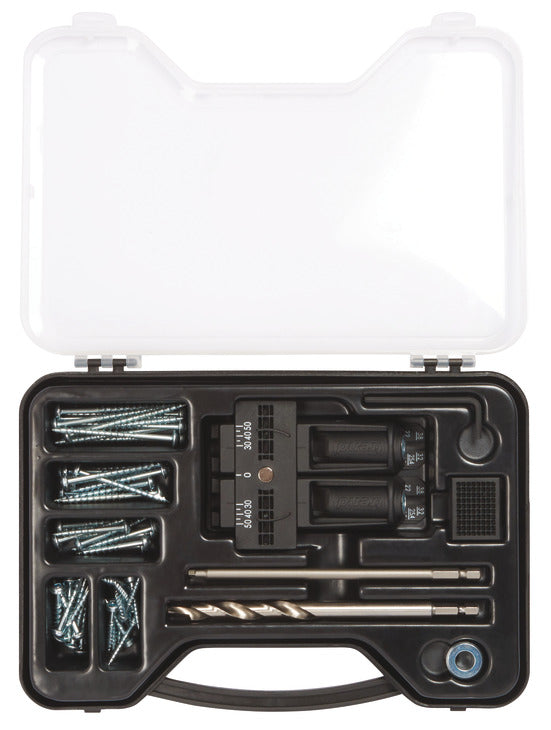

• Supplied in a carry case with drill bit, driver bit and screws

Technical specifications

Compatible pocket-hole screw sizes

• No. 6 × 25 mm
• No. 7 × 25 mm
• No. 7 × 30 mm
• No. 7/8 × 30 mm
• No. 8 × 37 mm
• No. 8 × 50 mm
• No. 8 × 63 mm

Choose the appropriate screw length and thread type for the material thickness, timber type and joint being produced.

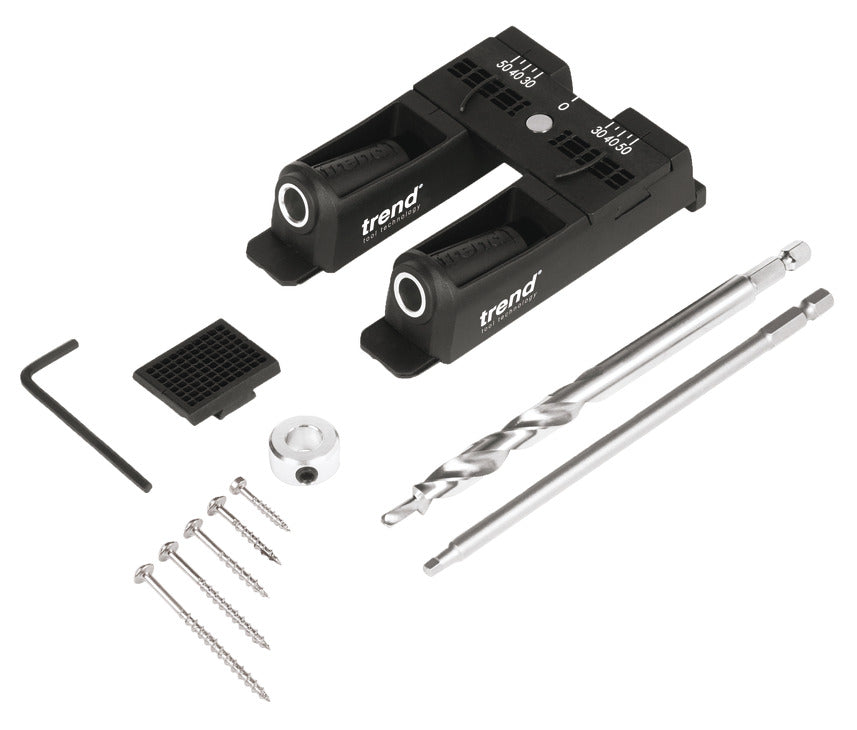

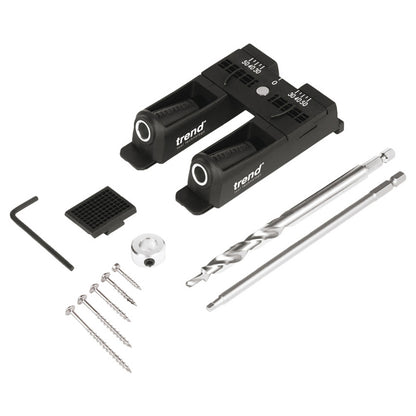

Supplied with

• 1 × Trend PH/JIG/BK 3-in-1 pocket-hole jig
• 1 × 9.5 mm HSS drill bit with depth collar
• 1 × 150 mm No. 2 square-drive bit
• 1 × adaptor plate
• 1 × 3 mm A/F hex key

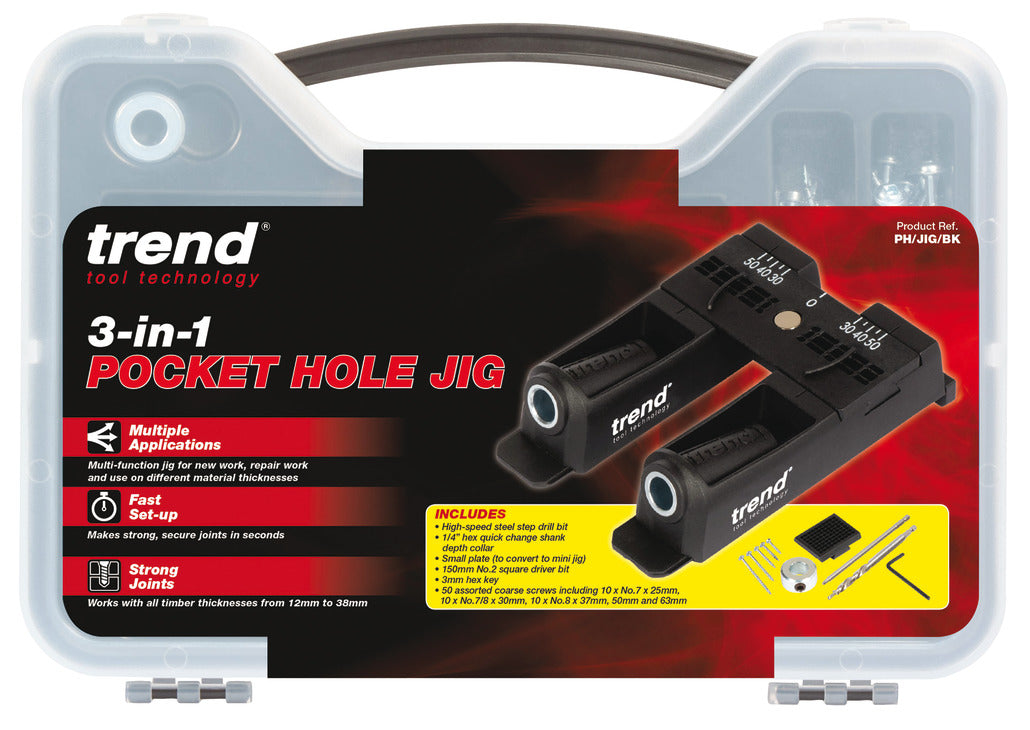

• 1 × carry case
• 50 × assorted pocket-hole screws

Typical applications

Ideal for cabinet making, furniture construction, face frames, shelving, carcasses, tables, frames, edge-to-edge joints and general joinery repairs. The compact design is equally useful in a workshop or when completing work on site.

Why use pocket-hole joinery?

Pocket-hole joints provide a quick method of creating strong, discreet screwed connections. The angled pocket guides the screw securely into the adjoining component, making this system useful for assembling furniture, cabinets and frames without complicated traditional joints.

Frequently asked questions

What material thickness can this jig accommodate?

The jig is suitable for timber and wood-based sheet material from 12.7 mm to 38 mm thick.

Can it drill both single and twin pocket holes?

Yes. The jig can be configured for twin pocket holes in wider material or a single pocket hole in narrow components and repair applications.

Can the spacing between the holes be adjusted?

Yes. The twin-hole pitch can be adjusted from 28 mm to 50 mm to suit the workpiece and joint.

What materials can it be used with?

It is suitable for hardwood, softwood and wood-based sheet materials such as MDF, plywood and blockboard. Always choose screws suitable for the material being joined.

Does the kit include everything needed to drill the pocket holes?

The kit includes the jig, 9.5 mm HSS drill bit with depth collar, 150 mm square-drive bit, adaptor plate, hex key and 50 assorted screws. A suitable electric or cordless drill is required.

Can it be used for repair work?

Yes. Its single-hole configuration, adaptor plate and reversible depth gauges make it suitable for many furniture, cabinet and joinery repairs.

Do I need to secure the jig while drilling?

The jig and workpiece must be held securely. The required fixing method depends on the selected configuration and application. Follow the Trend operating instructions before drilling.
