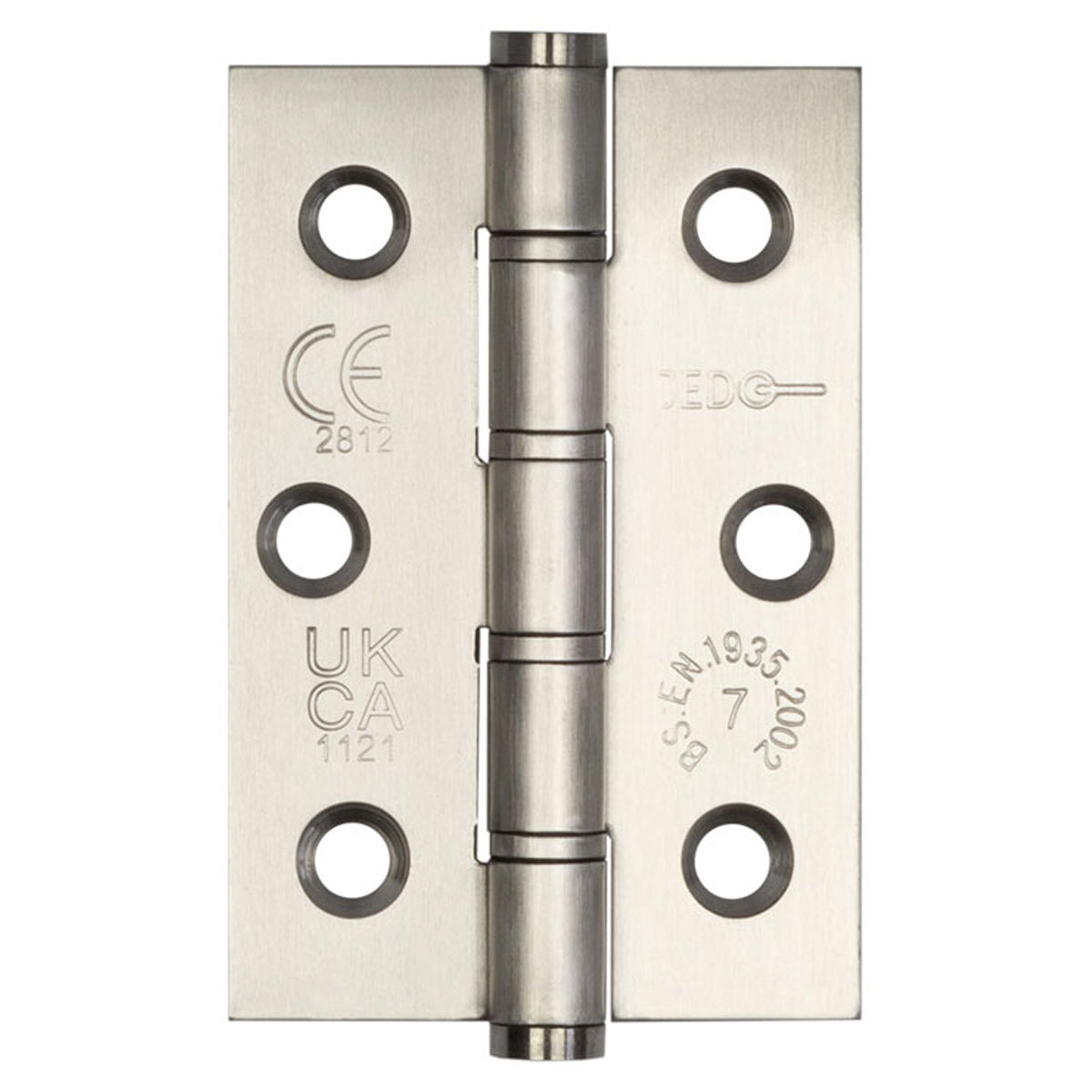

The Frelan J9504SSS Ball Bearing Hinge is a practical 76mm hinge with a compact profile for internal doors. Built from Grade 201 stainless steel with a satin finish, it is FD30 fire rated and provides durability for residential and commercial interiors.

KEY FEATURES

• Type: Ball Bearing Hinge

• Material Grade: 201 Stainless Steel

• Finish: Satin Stainless Steel

• Max Door Weight: 40kg (3 hinges)

• Standards: BS EN 1935.

• Fire Rating: FD30

• Certifire: No

• Hinge Grade: 7

• Corrosion Grade: 4

• Mechanical Warranty: 10 Years

• Use: Internal, Residential / Commercial

• UKCA / CE: Yes / Yes

DIMENSIONS

• Height (H): 76mm

• Width (W): 50mm

• Knuckle (L): 10mm

• Thickness (T): 2mm
