MK1 Shootbolt Locking System — 20mm Retractable Lock

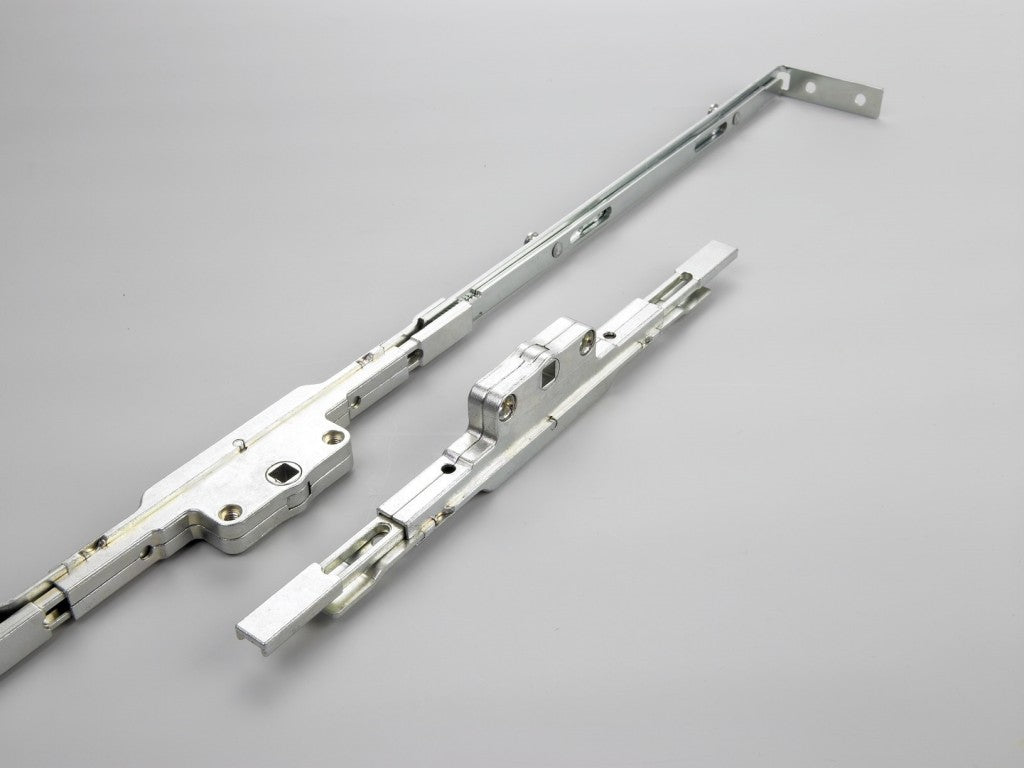

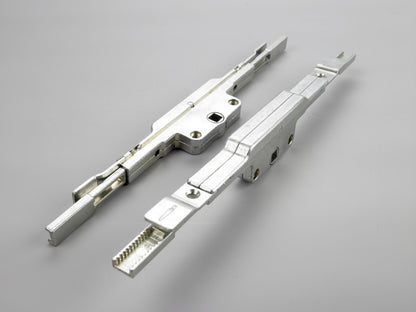

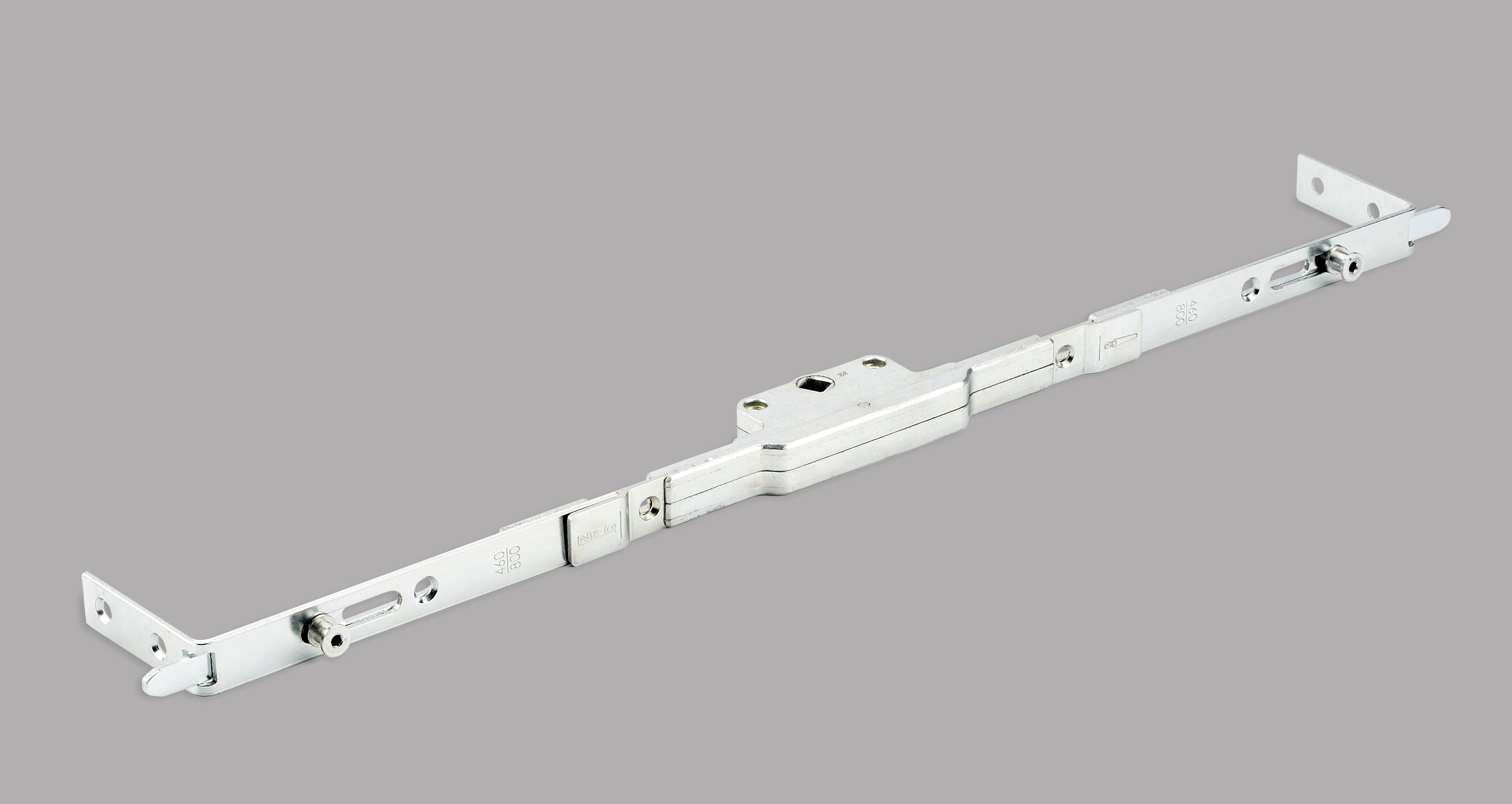

The WF2937Y MK1 Shootbolt Locking System is engineered to the most exacting standards, delivering a secure, smooth-closing multipoint locking solution for French windows and casement applications. Steel shootbolts engage into robust, profile-specific solid zinc keeps to protect the vulnerable corner of the window, while mushroom cams provide additional strength and precise weatherseal compression adjustment.

Exceptionally versatile, the MK1 is suitable for low handle height applications and a wide range of French window designs — including slave window configurations via its cam-free gearbox.

Key Features & Benefits

• Rigorously tested — see related downloads for full test data
• Corner security — cams and shootbolts on extensions travel towards the vulnerable corners of the window
• Profile-specific solid zinc keeps — enhanced security and a precise fit
• Cam-free gearbox — ideal for slave window applications
• Supercoat finish — exceptional resistance to corrosion for long-term durability
• Low handle height options — suitable for multi-occupancy dwellings
• Adjustable cams (±1mm) — fine-tune weatherseal compression on site
• Night vent facility — provided on keeps for ventilation security
• French window compatible — full range of matching keeps available
• Strong, smooth and reliable gearbox — built for long-life performance
• 10-year mechanical guarantee

Technical Specification

• SKU: WF2937Y
• Bolt throw: 20mm retractable
• Finish: Supercoat
• Keep type: Profile-specific solid zinc
• Cam adjustment: ±1mm
• Guarantee: 10 years mechanical
