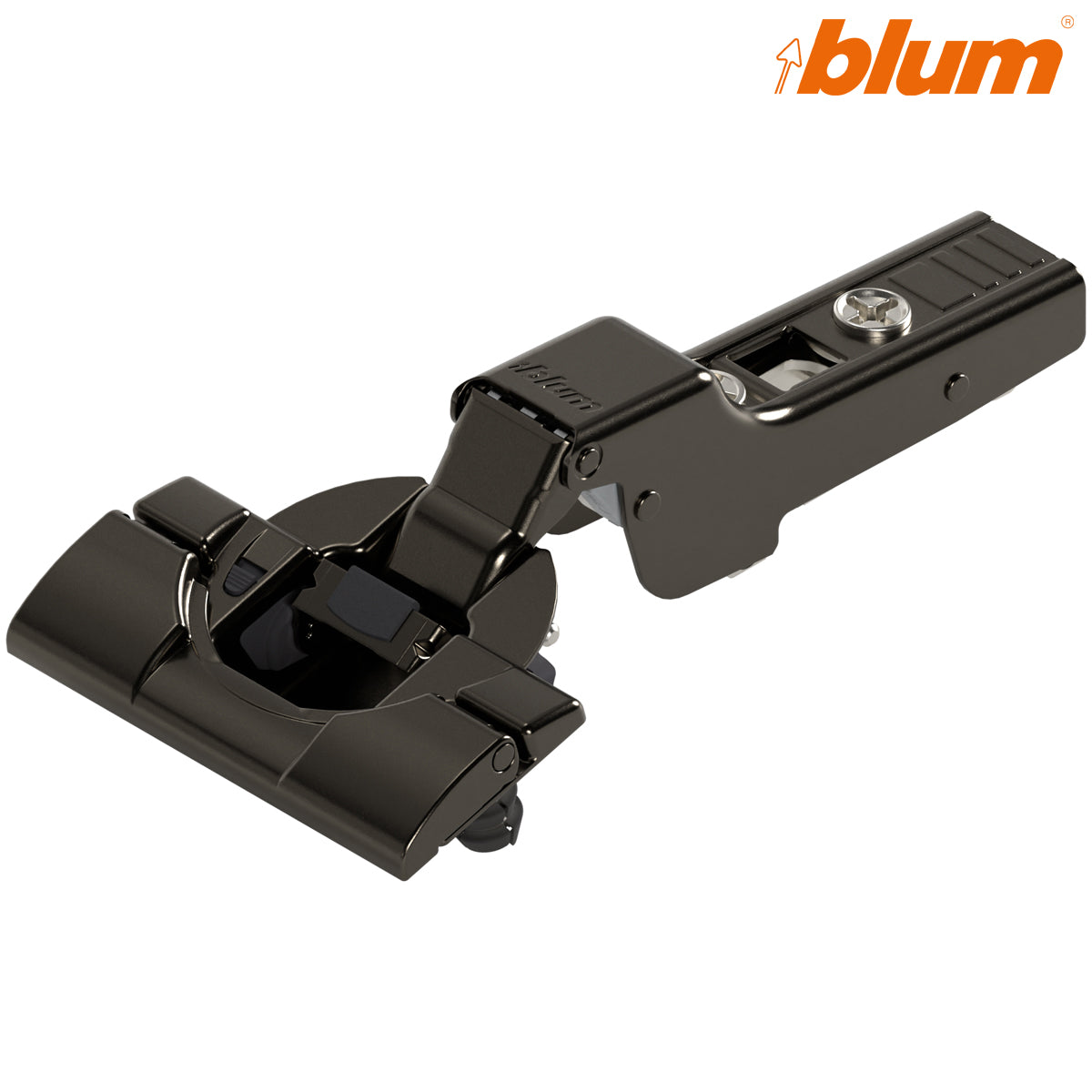

Blum 71B3690 BLUMOTION 110° Half Overlay INSERTA Hinge – Onyx Black

Blum 71B3690 BLUMOTION 110° Half Overlay INSERTA Hinge – Onyx Black

Stock Code: HIO71B3690

£3.97 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B3690 CLIP top BLUMOTION 110° Half Overlay INSERTA Hinge – Onyx Black

The Blum 71B3690 CLIP top BLUMOTION hinge is designed for dual or half-overlay cabinet-door applications. Its cranked hinge arm allows two doors to share the same central cabinet partition while each door covers only part of the panel edge.

Finished in premium Onyx Black, this concealed hinge is particularly suitable for dark cabinetry, open shelving and furniture where the hinge may remain visible when the door is open.

The integrated BLUMOTION mechanism provides smooth, controlled soft closing without requiring a separate damper. BLUMOTION can also be deactivated on individual hinges when less closing resistance is needed for a small or lightweight door.

Key features

  • Genuine Blum CLIP top BLUMOTION concealed hinge
  • Designed for dual and half-overlay cabinet doors
  • Cranked hinge arm for shared central partitions
  • 110° opening angle
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated when required
  • Tool-free INSERTA hinge-cup fixing
  • No separate hinge-cup fixing screws required
  • 35mm steel hinge cup
  • Tool-free CLIP attachment to the mounting plate
  • Three-dimensional door adjustment
  • Premium Onyx Black finish
  • Supplied as one hinge

Technical specifications

Manufacturer Blum
Blum part number 71B3690
Hart stock code HIO71B3690
Hinge system CLIP top BLUMOTION
Door application Dual/half overlay
Hinge-arm type Cranked/half overlay
Opening angle 110°
Closing mechanism Spring closing with integrated, deactivatable BLUMOTION
Hinge-cup fixing INSERTA tool-free locking
Hinge-cup diameter 35mm
Cup drilling depth 13mm
Fixing holes Two 8mm holes on 45mm centres
Cup drilling distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3mm / −2mm
Height adjustment Through the selected mounting plate
Material Steel
Finish Onyx Black
Quantity One hinge
Mounting plate included? No – order separately

Where is a half-overlay hinge used?

A half-overlay hinge is normally used where two cabinet doors are fitted to opposite sides of the same central partition. The cranked hinge arm positions each door so that both can close correctly while sharing the panel.

This differs from a standard overlay hinge, where one door generally covers most of the cabinet-side edge, and an inset hinge, where the door closes inside the cabinet opening.

Tool-free INSERTA fixing

Prepare a 35mm hinge-cup drilling to a depth of 13mm together with two 8mm fixing holes on 45mm centres. Insert the hinge cup and operate the built-in locking lever. The expanding dowels secure the hinge without separate screws or insertion machinery.

Mounting plate required

HIO71B3690 is supplied as one hinge. A compatible Blum CLIP mounting plate must be selected separately. The correct plate height depends on the required door position, drilling distance and cabinet construction.

Compare this hinge with the Blum 71B3590 full-overlay INSERTA hinge or the Blum 71B3790 inset INSERTA hinge.

Browse the complete Blum INSERTA hinge collection or view all Blum CLIP top hinges.

Frequently asked questions

What does dual or half overlay mean?

It means the hinge is designed for two doors sharing a central cabinet partition. Each door overlays only part of the panel edge.

Does the Blum 71B3690 include soft close?

Yes. The BLUMOTION soft-close mechanism is integrated directly into the hinge.

Can BLUMOTION be switched off?

Yes. The damping function can be deactivated on individual hinges when less closing resistance is required.

Does INSERTA require fixing screws?

No. The built-in INSERTA lever expands the integrated dowels inside the prepared fixing holes.

Is a mounting plate supplied?

No. A compatible Blum CLIP mounting plate must be ordered separately.

What drilling pattern is required?

The hinge requires a 35mm cup hole, 13mm deep, and two 8mm fixing holes positioned on 45mm centres.

TECHNICAL DETAILS

  • Application: Dual
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
