BLUM CLIP BLUMOTION HINGE 110deg INSET INSERTA ONYX

BLUM CLIP BLUMOTION HINGE 110deg INSET INSERTA ONYX

Stock Code: HIO71B3790

£4.00 GBP
Sale
View full details

PRODUCT DESCRIPTION

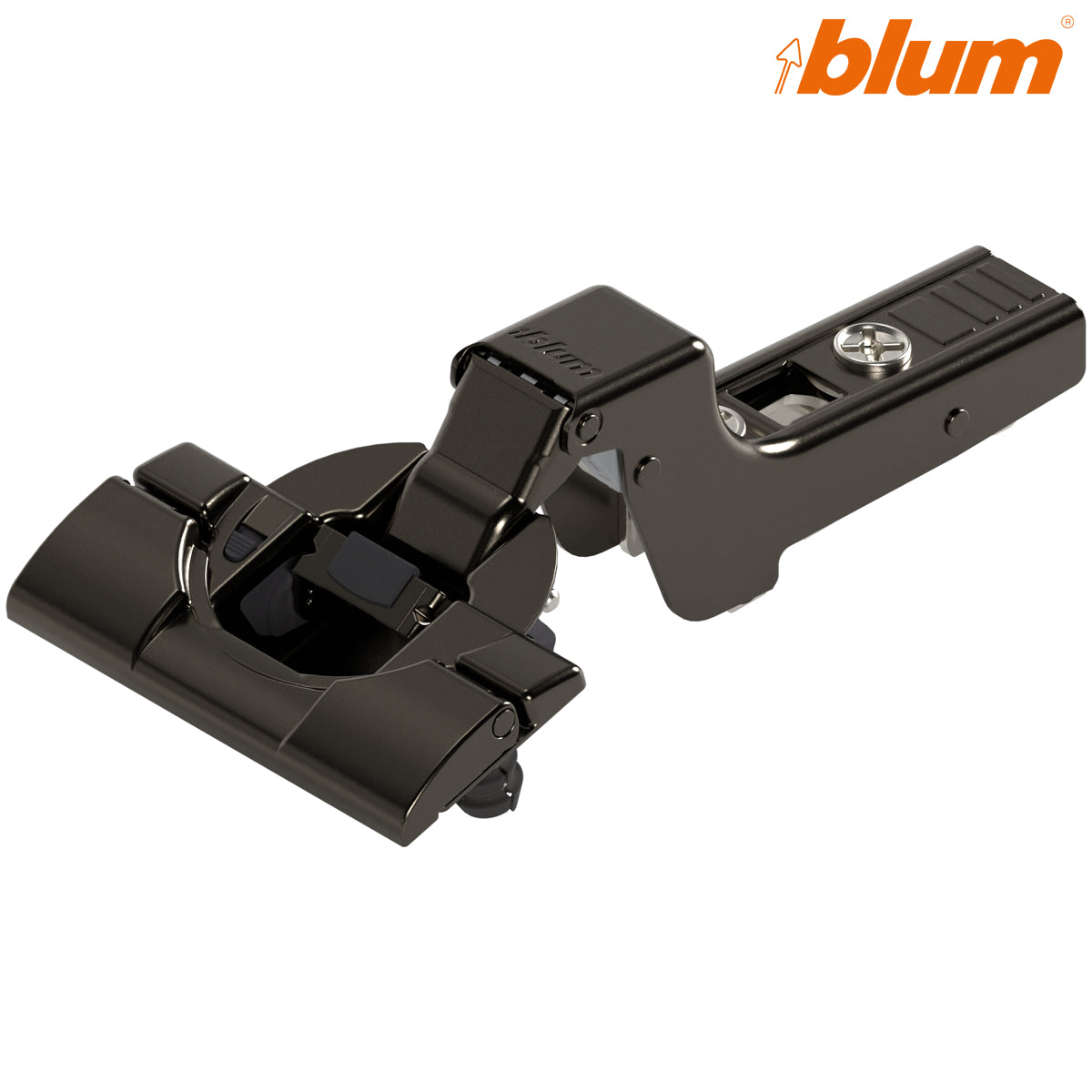

Blum 71B3790 CLIP top BLUMOTION 110° inset INSERTA hinge – Onyx Black

The Blum 71B3790 is a concealed CLIP top hinge for inset cabinet doors that close inside the cabinet opening. Its cranked arm positions the door within the cabinet rather than allowing it to cover the front edge of the cabinet side.

The Onyx Black finish suits dark cabinetry and contemporary furniture interiors. Integrated BLUMOTION soft close controls the final movement of the door, and the damping function can be deactivated on individual hinges when less closing resistance is required.

Technical details

  • Blum part number: 71B3790
  • Hart Wholesale SKU: HIO71B3790
  • Type: CLIP top BLUMOTION concealed hinge
  • Application: inset
  • Hinge arm: cranked for inset doors
  • Opening angle: 110°
  • Closing action: spring closing with integrated, deactivatable BLUMOTION
  • Hinge-cup fixing: INSERTA tool-free locking
  • Hinge-cup diameter: 35 mm
  • Cup drilling depth: 13 mm
  • Fixing holes: two 8 mm holes on 45 mm centres
  • Cup drilling distance: 3–7 mm
  • Side adjustment: ±2 mm
  • Depth adjustment: +3/-2 mm
  • Height adjustment: through the selected mounting plate
  • Material: steel
  • Finish: Onyx Black
  • Quantity: one hinge
  • Mounting plate: supplied separately

Inset cabinet-door planning

An inset door closes inside the cabinet opening and normally sits flush with the front edges of the cabinet sides. Door thickness, cup drilling distance, mounting-plate position and the required clearance around the door all affect the installation, so check the complete door and cabinet dimensions before drilling.

The cranked arm is designed for the geometry required by an inset application. Do not substitute a straight-arm overlay hinge when the door must sit inside the opening.

Tool-free INSERTA installation

Prepare a 35 mm hinge-cup hole approximately 13 mm deep, together with two 8 mm fixing holes on 45 mm centres. Position the cup in the prepared drilling and operate the integrated INSERTA locking mechanism. The built-in expanding dowels secure the hinge cup without separate fixing screws.

Mounting plate required

A compatible Blum CLIP mounting plate must be ordered separately. For inset applications, select the mounting-plate position and height to suit the door thickness, cabinet construction and required clearances. Test the door movement before final adjustment.

For the verified nickel counterpart, see the Blum 71B3790 inset INSERTA hinge. For screw-on cup fixing, compare the 71B3750 inset screw-on hinge. Browse the Blum CLIP top hinge range.

Matching components

The mounting plate, cover caps and other installation components are supplied separately. This listing is for one hinge.

Frequently Asked Questions

What is an inset cabinet hinge?

An inset hinge positions the closed door inside the cabinet opening instead of allowing it to cover the front edge of the cabinet side.

Does the Blum 71B3790 include soft close?

Yes. BLUMOTION soft close is integrated directly into the hinge cup.

Can BLUMOTION be deactivated?

Yes. The damping function can be switched off on an individual hinge when less closing resistance is required.

Does INSERTA require fixing screws?

No. The integrated INSERTA mechanism locks the hinge cup into the prepared fixing holes without separate cup-fixing screws.

Is a mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

What drilling pattern is required?

The hinge requires a 35 mm cup hole approximately 13 mm deep, plus two 8 mm fixing holes positioned on 45 mm centres.

Is one hinge supplied?

Yes. This listing is for one hinge.

TECHNICAL DETAILS

  • Application: Inset
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
