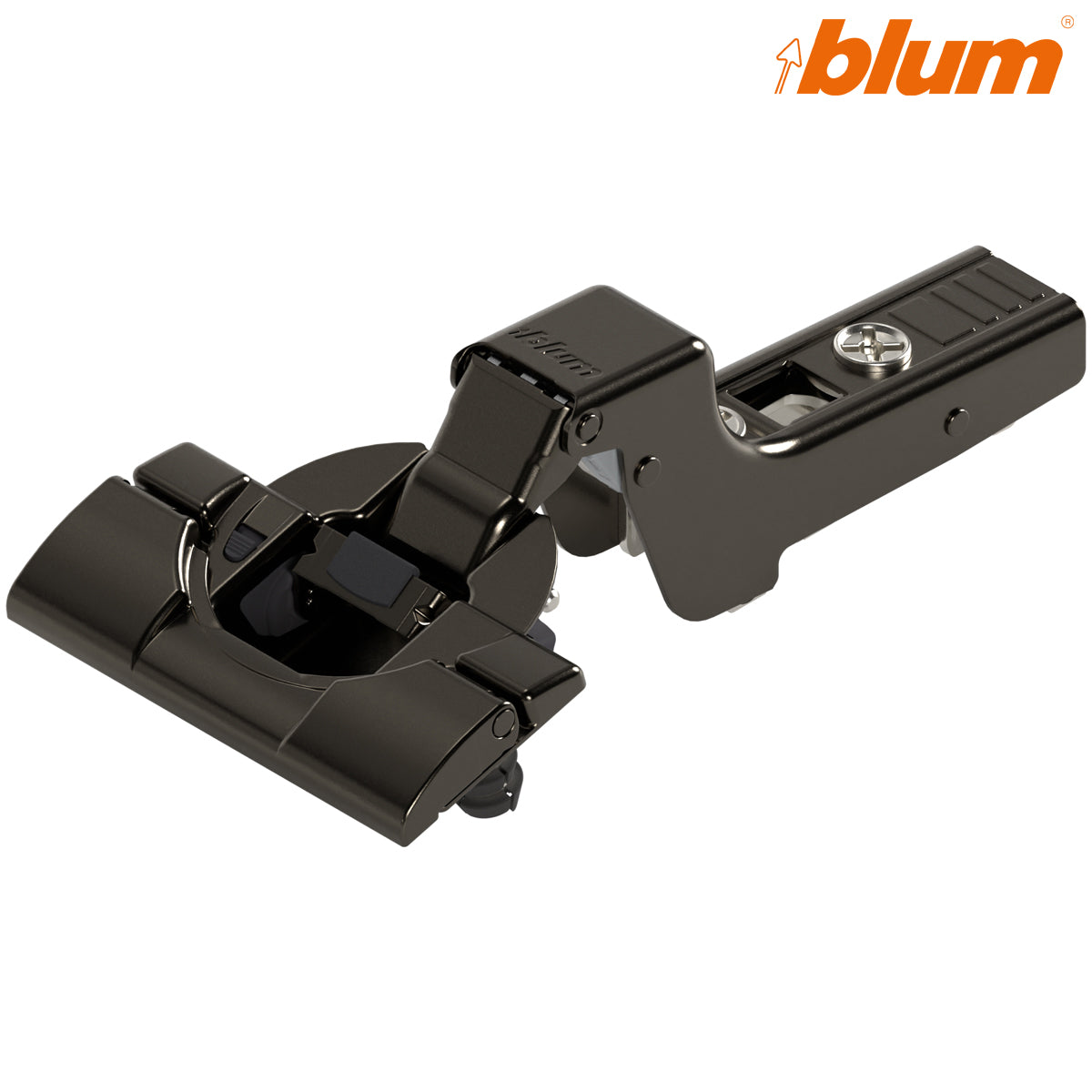

  • Blum 71B3790 CLIP top BLUMOTION 110 degree inset INSERTA cabinet hinge in Onyx Black – HIO71B3790
1 1

Blum 71B3790 BLUMOTION 110° Inset INSERTA Hinge – Onyx Black

Blum 71B3790 BLUMOTION 110° Inset INSERTA Hinge – Onyx Black

Stock Code: HIO71B3790

£4.00 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B3790 CLIP top BLUMOTION 110° Inset INSERTA Hinge – Onyx Black

The Blum 71B3790 CLIP top BLUMOTION hinge is designed for inset cabinet doors that close inside the cabinet opening rather than covering the front edge of the cabinet sides. Its cranked hinge arm positions the door accurately within the cabinet while allowing a practical 110° opening angle.

The premium Onyx Black finish coordinates particularly well with dark doors, black mounting plates and contemporary cabinet interiors. It provides a discreet, coordinated appearance when the hinge becomes visible with the door open.

BLUMOTION soft closing is integrated directly into the hinge cup, delivering smooth and controlled door movement without requiring a separate damper. The damping function can be deactivated on individual hinges when less resistance is required for smaller or lighter doors.

Key features

  • Genuine Blum CLIP top BLUMOTION concealed hinge
  • Designed specifically for inset cabinet doors
  • Cranked hinge arm positions the door inside the cabinet opening
  • 110° opening angle
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated when required
  • Tool-free INSERTA hinge-cup installation
  • No separate hinge-cup fixing screws required
  • 35mm steel hinge cup
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Premium Onyx Black finish
  • Supplied as one hinge

Technical specifications

Manufacturer Blum
Blum part number 71B3790
Hart stock code HIO71B3790
Hinge system CLIP top BLUMOTION
Door application Inset
Hinge-arm type Cranked/inset
Opening angle 110°
Closing mechanism Spring closing with integrated, deactivatable BLUMOTION
Hinge-cup fixing INSERTA tool-free locking
Hinge-cup diameter 35mm
Cup drilling depth 13mm
Fixing holes Two 8mm holes on 45mm centres
Cup drilling distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3mm / −2mm
Height adjustment Through the selected mounting plate
Material Steel
Finish Onyx Black
Quantity One hinge
Mounting plate included? No – order separately

Designed for inset cabinet doors

An inset door closes within the cabinet opening, leaving the front edges of the cabinet sides visible. This differs from an overlay hinge, where the closed door covers part or all of the cabinet-side edge.

Accurate planning is especially important with inset doors. Door thickness, drilling distance, mounting-plate height and the required clearance around the door must all be considered before drilling. A trial installation is recommended where cabinet dimensions or door-edge profiles vary.

Tool-free INSERTA installation

Prepare a 35mm hinge-cup hole to a depth of 13mm together with two 8mm fixing holes positioned on 45mm centres. Position the hinge cup in the prepared drilling and operate its built-in locking lever. The integrated expanding dowels secure the hinge without separate screws or insertion machinery.

Mounting plate required

HIO71B3790 is supplied as one hinge. A compatible Blum CLIP mounting plate must be purchased separately. The mounting-plate position and height must be selected to suit the inset application, door thickness and required door clearances.

Compare this product with the Blum 71B3590 overlay INSERTA hinge or the Blum 71B3690 half-overlay INSERTA hinge.

Browse all Blum INSERTA hinges or explore the complete Blum CLIP top hinge range.

Frequently asked questions

What is an inset cabinet hinge?

An inset hinge positions the closed door inside the cabinet opening, rather than allowing it to overlay the front edge of the cabinet sides.

Does the Blum 71B3790 include soft close?

Yes. The BLUMOTION soft-close mechanism is integrated directly into the hinge.

Can BLUMOTION be switched off?

Yes. The damping function can be deactivated on an individual hinge when less closing resistance is required.

Does INSERTA require fixing screws?

No. The built-in INSERTA lever expands the integrated dowels inside the prepared fixing holes, securing the cup without separate screws.

Is a mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

What drilling pattern is required?

The hinge requires a 35mm cup hole, 13mm deep, plus two 8mm fixing holes positioned on 45mm centres.

TECHNICAL DETAILS

  • Application: Inset
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
