Blum TANDEMBOX 378M/378K Front Marking Template Set ZML.3580.01 transfers the fixing positions from an assembled TANDEMBOX drawer to its wooden front. The set is made for TANDEMBOX 378M and 378K applications and includes two orange templates plus four K drawer-side flags.

With the assembled drawer inserted, fit the templates, set the required overlay, position the front and tap lightly. The points mark where the front fixings need to be prepared.

Key features and benefits

• Compatible with TANDEMBOX 378M and 378K drawer sides
• Transfers the front-fixing positions onto the wooden drawer front
• Adjustable stop helps establish the required front overlay
• Marks positions with a controlled light tap instead of drilling them
• Two templates allow the fixing positions to be marked on both sides
• Four supplied flags support the TANDEMBOX K drawer-side positioning-dowel application
• Nylon and steel construction

Verified compatibility

• Compatible system: Blum TANDEMBOX
• Compatible drawer sides: 378M and 378K
• Main task: Marking wooden drawer-front fixing positions
• K application: Use the supplied K drawer-side flags for the positioning dowel
• Gallery application: Use with the separate ZML.3600 gallery marking template where gallery-front drilling positions also need to be marked

This set is not listed by Blum for TANDEMBOX 378N or METABOX drawer sides. Match the drawer-side designation and Blum part number before ordering.

How to mark a standard drawer front

1. Assemble the compatible TANDEMBOX drawer and insert it into the cabinet.
2. Position one marking template on each drawer side.
3. Set the template stops to the required front overlay.
4. Support, position and align the wooden front against the templates.
5. Apply a light, even tap to transfer the front-fixing positions.
6. Remove the front and check both marks before drilling or fixing.
7. Fit and adjust the front in accordance with Blum’s assembly information.

K drawer sides and gallery applications

For 378K, use the four supplied flags for the positioning dowel. For a compatible high-fronted pull-out with a gallery, add the separate ZML.3600 template to mark the gallery front-fixing drilling position; ZML.3600 is not included.

Technical specifications

• Brand: Blum
• Product type: Drawer-front marking-template set
• Blum part number: ZML.3580.01
• Hart SKU: JIG4002
• Compatible drawer-side designations: 378M and 378K
• Application: Marking front-fixing positions
• Material: Nylon and steel
• Colour: Orange with black and steel components
• Package quantity: 2 templates and 4 flags
• GTIN: Not verified

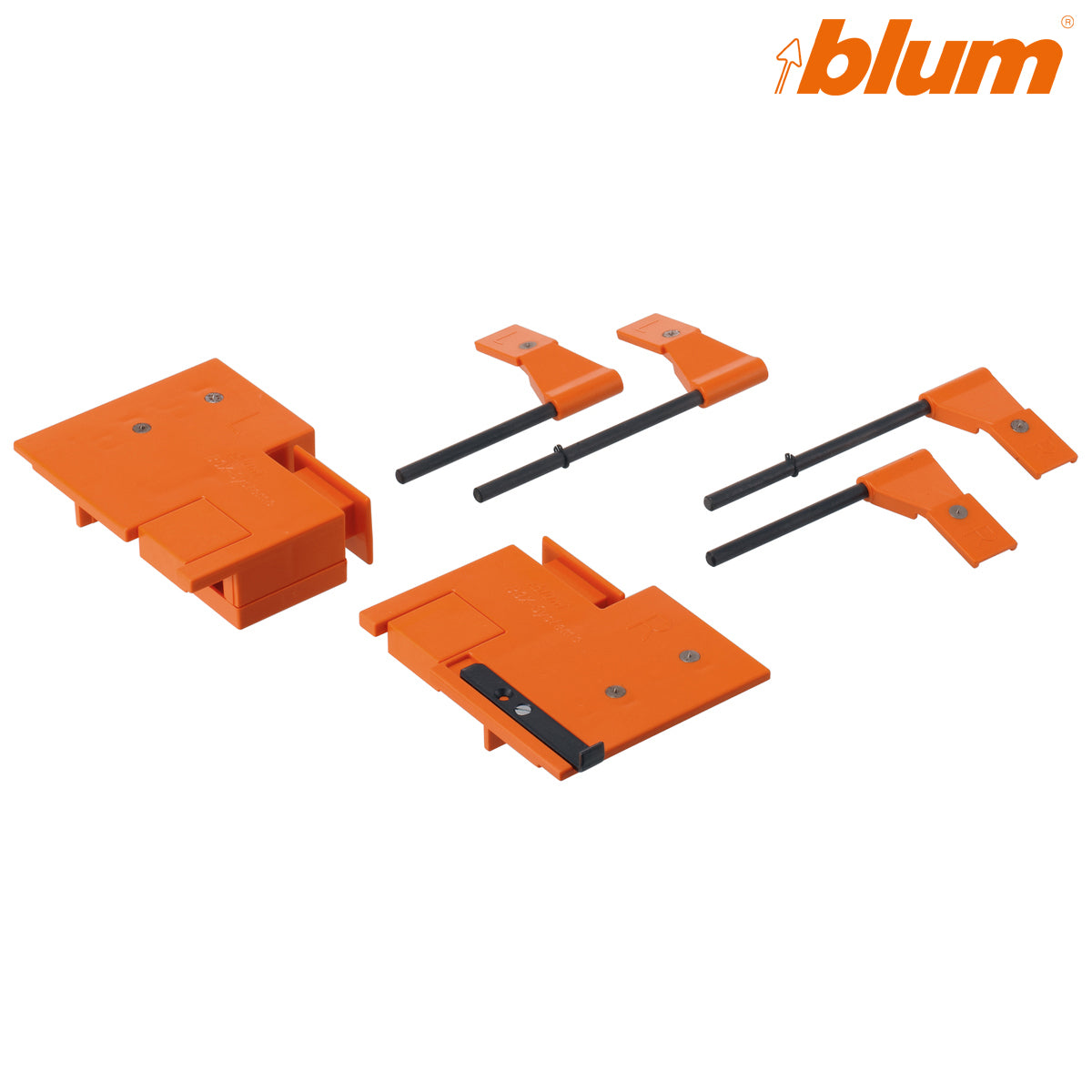

Package contents

• 2 × Blum TANDEMBOX front marking templates
• 4 × flags for the TANDEMBOX K drawer-side positioning dowel

Drawer components, front fixings, ZML.3600 gallery marking template, drill bits, screws and hand tools are not included.

Choose the correct Blum marking template

• Blum ZML.3510 templates for TANDEMBOX 378N
• Blum ZML.3600 gallery marking template for TANDEMBOX 378M/378K
• Blum ZML.1510 templates for METABOX 3x0N
• Blum ZML.1500 templates for METABOX 3x0M/3x0K/3x0H
• View all Blum assembly tools and jigs

Frequently asked questions

Selection check: Confirm TANDEMBOX 378M or 378K and Blum part number ZML.3580.01 before ordering.
