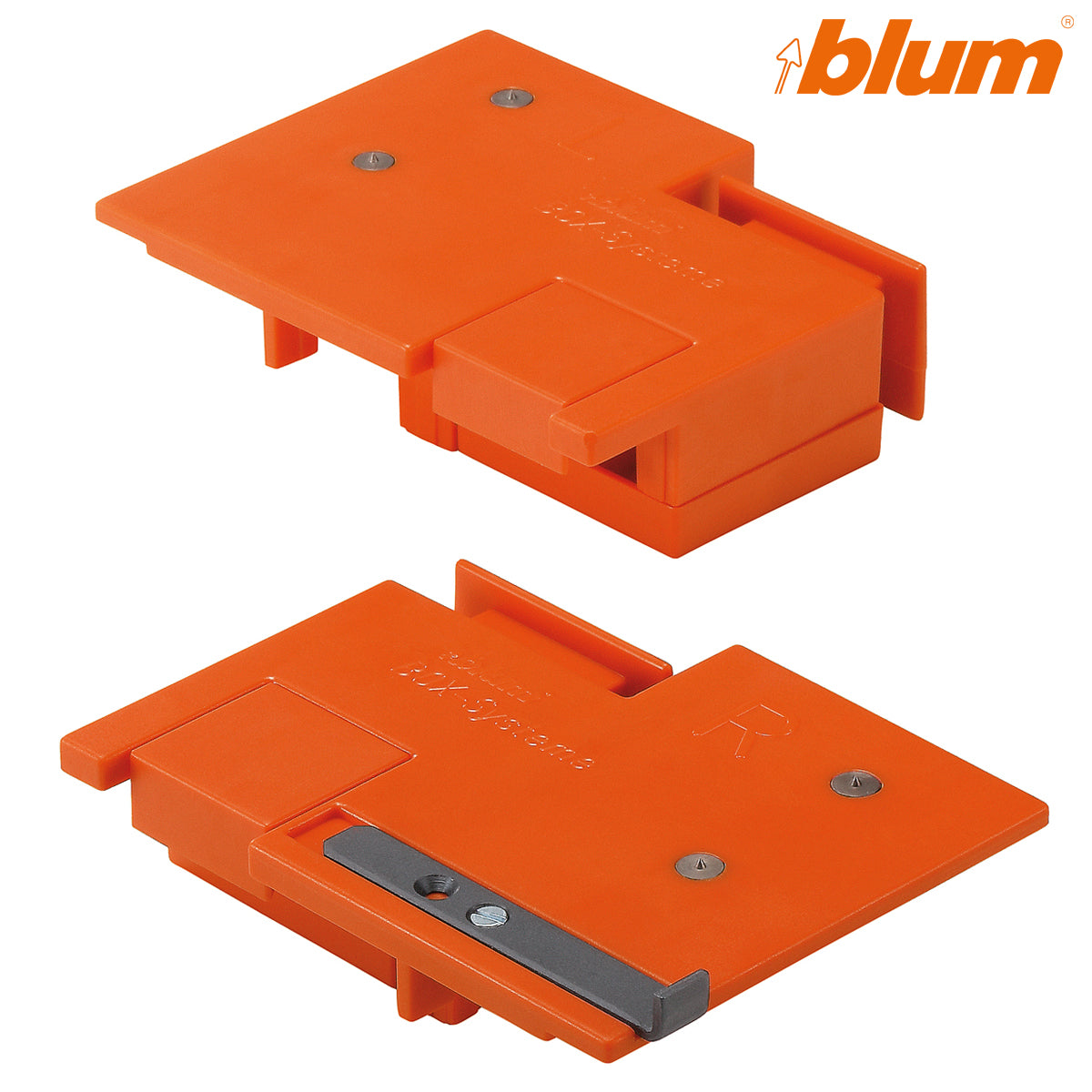

  • Pair of orange Blum TANDEMBOX 378N front marking templates ZML.3510 showing steel marking pins
1 1

Blum TANDEMBOX 378N Front Marking Templates ZML.3510

Blum TANDEMBOX 378N Front Marking Templates ZML.3510

Stock Code: JIG4001

£65.20 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum TANDEMBOX 378N Front Marking Templates ZML.3510 are designed to transfer the fixing positions from an assembled TANDEMBOX 378N drawer directly onto its wooden front.

Fit both templates after inserting the assembled drawer. Set the overlay, position the front and tap lightly to mark the front-fixing positions.

Key features and benefits

  • Genuine Blum front marking-template set
  • Blum part number ZML.3510
  • Hart stock code JIG4001
  • Designed specifically for TANDEMBOX 378N drawer sides
  • Transfers front-fixing positions onto the wooden drawer front
  • Adjustable stop for setting the required front overlay
  • Used on the assembled, inserted drawer
  • Marks positions with a controlled light tap
  • Left and right templates supplied as a pair
  • Constructed from nylon and steel

What is ZML.3510 used for?

The set transfers fixing locations from an assembled TANDEMBOX 378N drawer to the back of its wooden front before attachment and adjustment.

It is not for METABOX, other TANDEMBOX heights or gallery-front drilling.

Compatibility

  • Compatible system: TANDEMBOX
  • Compatible drawer side: 378N
  • Task: Marking wooden front-fixing positions
  • Not for: METABOX 3x0N, 3x0M, 3x0K or 3x0H
  • Not for: TANDEMBOX 378M or 378K

Confirm the reference: 378N is correct; do not substitute 358N.

How to use the marking templates

  1. Assemble the 378N drawer and insert it into the cabinet.
  2. Fit one marking template to each drawer side.
  3. Set the stops to the required front overlay.
  4. Position and align the drawer front against the templates.
  5. Apply a light, even tap to transfer the fixing positions.
  6. Remove them and check the marks before drilling or fixing.
  7. Attach and adjust the front to Blum instructions.

Support the front, verify orientation and handle the pointed marking pins carefully.

Technical specifications

  • Brand: Blum
  • Product type: Drawer-front marking-template set
  • Blum part number: ZML.3510
  • Hart SKU: JIG4001
  • System: TANDEMBOX
  • Drawer-side designation: 378N
  • Application: Marking front-fixing positions
  • Adjustment: Front-overlay stop
  • Material: Nylon and steel
  • Colour: Orange with steel components
  • Package quantity: 2 templates
  • GTIN: Not verified

Package contents

  • 2 × Blum TANDEMBOX 378N front marking templates ZML.3510

Drawer components, front fixings, gallery template, drill bits, screws and hand tools are not included.

Choose the correct Blum marking template

Frequently asked questions

Which drawer system is ZML.3510 for?

Blum specifies ZML.3510 for TANDEMBOX 378N drawer sides.

Is this suitable for METABOX?

No. Match METABOX drawer-side designations to ZML.1510 or ZML.1500.

Does the set fit TANDEMBOX 378M or 378K?

No. Blum lists ZML.3580.01 for TANDEMBOX 378M and 378K applications.

Does it drill fixing holes?

No. Its pins mark positions with a light tap; complete drilling or fixing separately.

How many templates are supplied?

Two templates are included so the left and right front-fixing positions can be transferred.

Should the drawer be installed before marking?

Yes. Blum instructs users to position the templates on the assembled drawer after it has been inserted into the cabinet, then set the overlay and mark the front.

Selection check: Confirm TANDEMBOX 378N and ZML.3510 before ordering.

TECHNICAL DETAILS

  • Colour: Orange
  • Material: Nylon / steel
