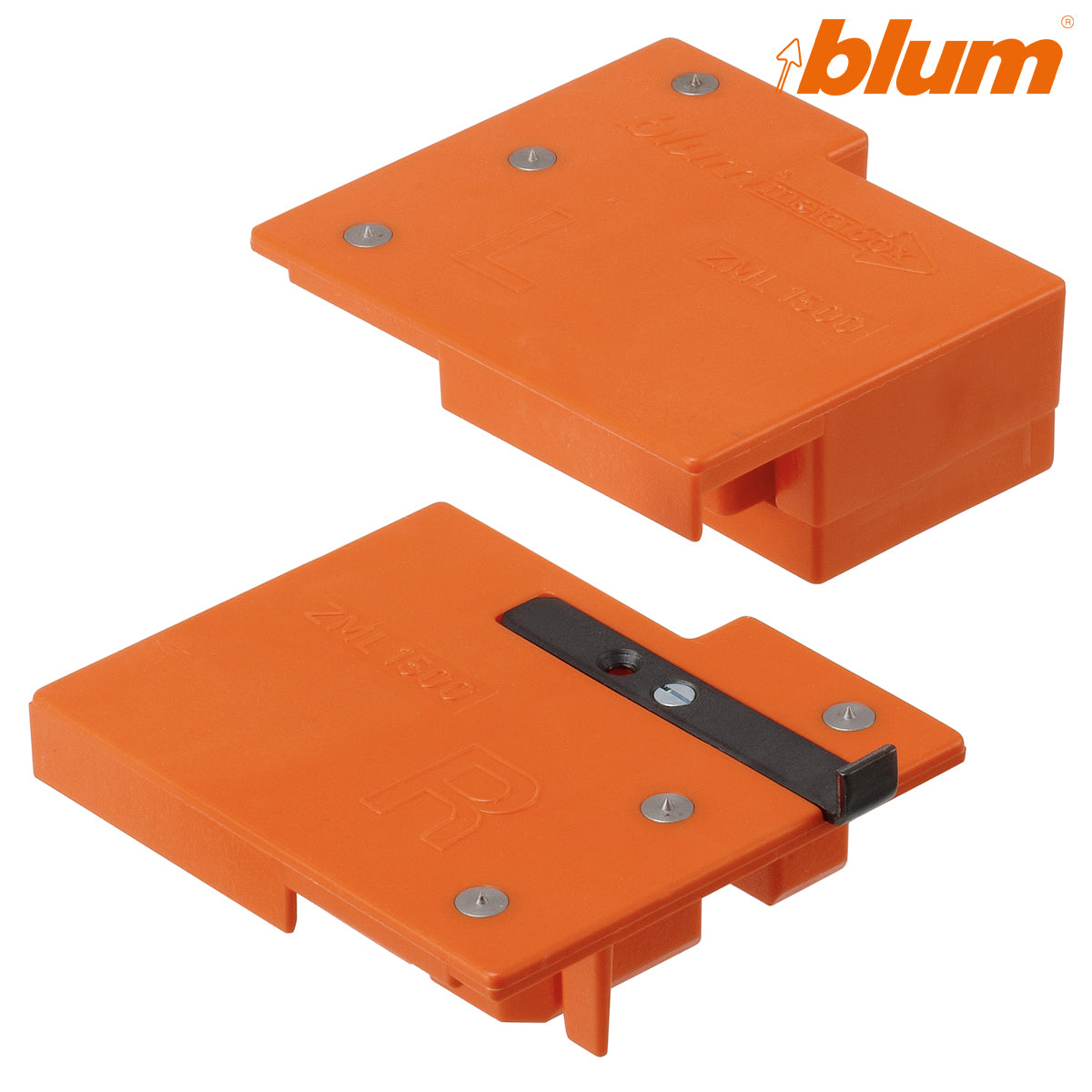

Blum METABOX 3x0M/3x0K/3x0H Front Marking Templates ZML.1500 are a left-and-right pair for transferring front-fixing positions from an assembled compatible METABOX drawer to its wooden front.

Insert the assembled drawer into the cabinet, fit the templates, set the required front overlay and position the front. A controlled light tap transfers the fixing locations, ready for checking before drilling and fitting.

Key features and benefits

• Compatible with METABOX 3x0M, 3x0K and 3x0H drawer sides
• Transfers the positions of the wooden-front fixings
• Adjustable stop helps set the required front overlay
• Marks both sides of the front with a light tap
• Two templates supplied for left and right positioning
• Can accept the separate ZML.8000.02 gallery marking template
• Nylon and steel construction

Verified compatibility

• Compatible system: Blum METABOX
• Compatible drawer sides: 3x0M, 3x0K and 3x0H
• Main task: Marking wooden drawer-front fixing positions
• Gallery application: Add ZML.8000.02 where the gallery front-fixing drilling position needs marking
• Not for: METABOX 3x0N
• Not for: TANDEMBOX drawer sides

Confirm 3x0M, 3x0K or 3x0H before ordering; “0M/K/H” is incomplete.

How to mark a standard drawer front

1. Confirm the drawer side is METABOX 3x0M, 3x0K or 3x0H.
2. Assemble the drawer and insert it into the cabinet.
3. Position one ZML.1500 template on each drawer side.
4. Set the stops to the required front overlay.
5. Support and align the wooden front against the templates.
6. Apply a light, even tap to transfer the fixing positions.
7. Remove the front and check the marks before drilling or fixing.
8. Fit and adjust the front to Blum’s assembly information.

Gallery application

For a compatible high-fronted pull-out, attach the separate ZML.8000.02 to mark the gallery fixing position. It is not included.

Technical specifications

• Brand: Blum
• Product type: Drawer-front marking-template set
• Blum part number: ZML.1500
• Hart SKU: JIG4004
• System: METABOX
• Compatible drawer sides: 3x0M / 3x0K / 3x0H
• Application: Marking front-fixing positions
• Adjustment: Front-overlay stop
• Material: Nylon and steel
• Colour: Orange with steel components
• Package quantity: 2 templates
• GTIN: Not verified

Package contents

• 1 × left-hand Blum METABOX marking template ZML.1500
• 1 × right-hand Blum METABOX marking template ZML.1500

METABOX components, front-fixing brackets, ZML.8000.02 gallery template, drill bits, screws and hand tools are not included.

Choose the correct Blum marking template

• Blum ZML.1510 templates for METABOX 3x0N
• Blum ZML.3510 templates for TANDEMBOX 378N
• Blum ZML.3580.01 templates for TANDEMBOX 378M/378K
• View all Blum assembly tools and jigs

Frequently asked questions

Selection check: Confirm METABOX 3x0M, 3x0K or 3x0H and Blum part number ZML.1500 before ordering.
