Blum 74T1790BTL 107° Inset Unsprung INSERTA Hinge

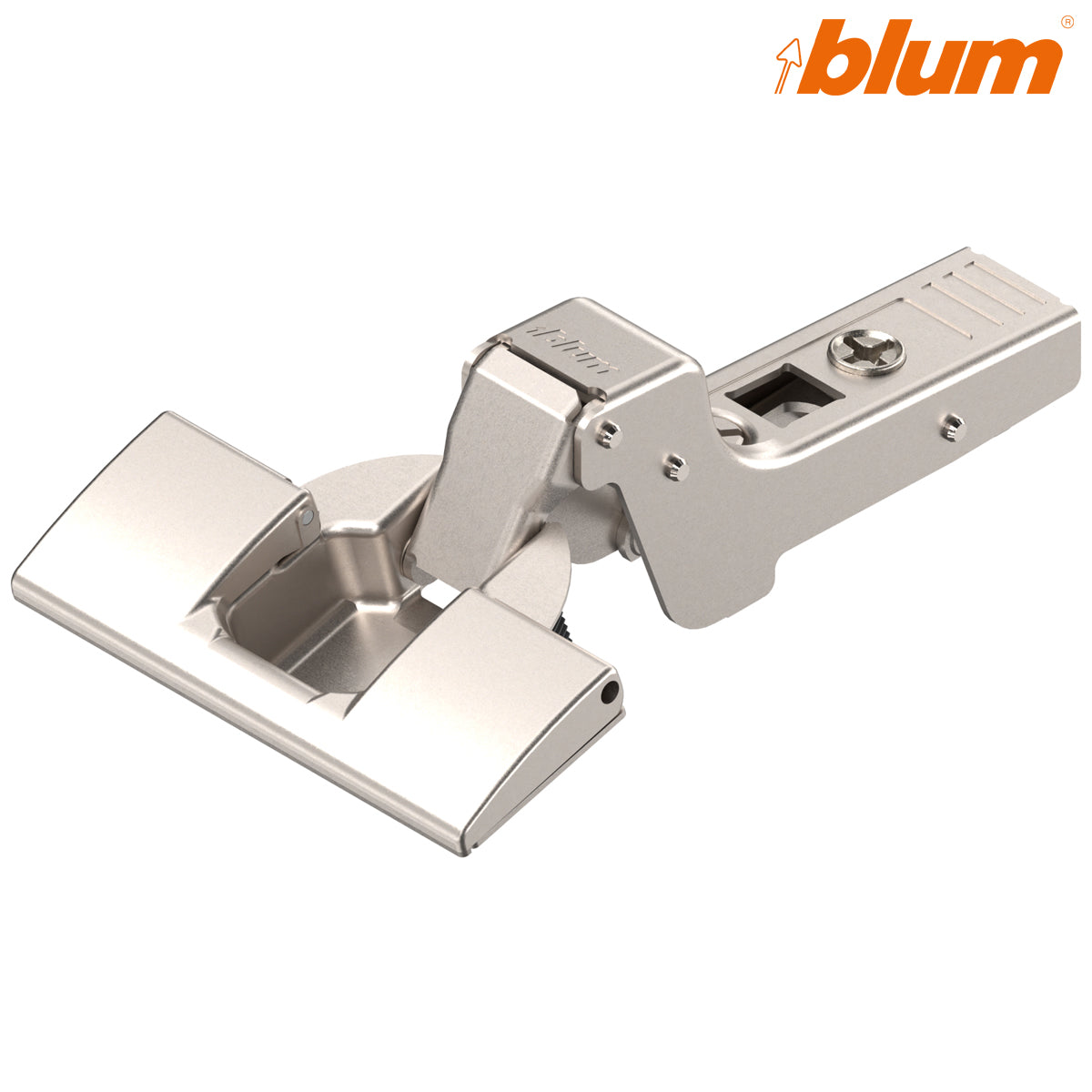

The Blum 74T1790BTL CLIP top hinge is an unsprung concealed hinge for inset cabinet doors between 15mm and 24mm thick. It combines a fully cranked hinge arm with Blum’s tool-free INSERTA cup fixing, making it particularly suitable for efficient cabinet production and handleless doors operated by a separate TIP-ON push-to-open unit.

Because this hinge contains no closing spring, it does not pull the door back towards the cabinet. This allows a compatible TIP-ON mechanism to push the door forward smoothly when the front is pressed.

Key features

• Genuine Blum CLIP top concealed cabinet hinge
• Complete Blum reference 74T1790BTL
• Designed for inset cabinet-door applications
• Suitable for door thicknesses from 15mm to 24mm
• Unsprung hinge with no self-closing mechanism
• Suitable for TIP-ON push-to-open doors
• 107° opening angle
• Fully cranked 18mm hinge arm
• Tool-free INSERTA hinge-cup fixing
• Tool-free CLIP connection to the mounting plate
• Spiral-tech depth adjustment
• Three-dimensional door adjustment with a suitable plate
• All-steel construction with a nickel-plated finish
• Supplied individually

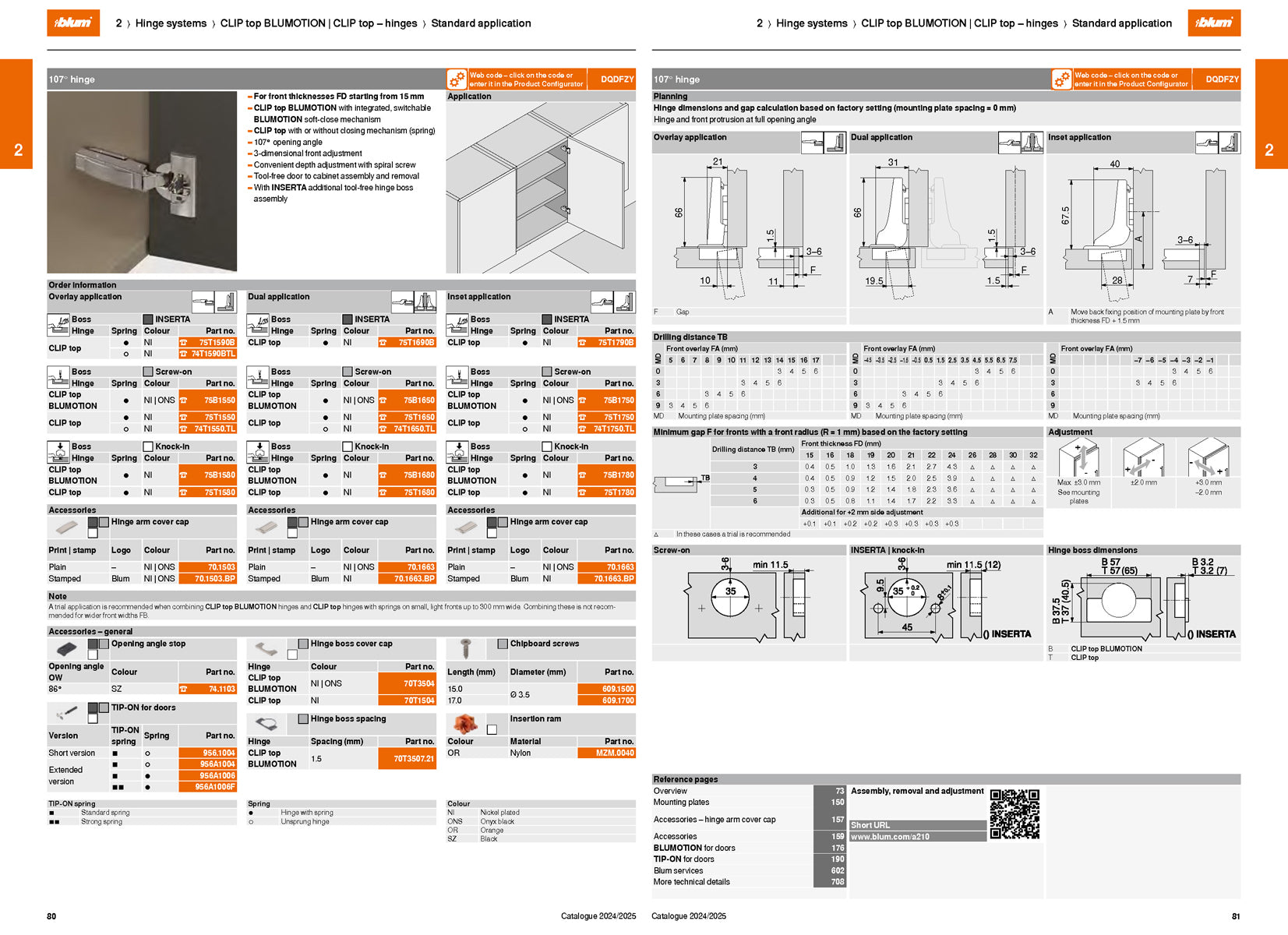

Technical specification

Inset cabinet-door application

An inset cabinet door closes within the cabinet opening, leaving the front edges of the cabinet sides visible. The fully cranked arm of the 74T1790BTL positions the door inside this opening and provides a practical 107° opening angle.

Inset installations require accurate planning because the finished gaps are affected by the door thickness, cup drilling distance, mounting-plate height and cabinet construction. The mounting-plate fixing position must also be set back correctly for the thickness of the door. A trial installation is recommended before drilling a complete set of doors.

Unsprung operation for TIP-ON

The 74T1790BTL does not contain a self-closing spring. This makes it suitable for handleless cabinets using a separate Blum TIP-ON door unit. Pressing the closed door activates the TIP-ON plunger, which moves the door forward far enough to be opened by hand.

This product does not contain BLUMOTION and will not provide soft closing. The correct TIP-ON unit must be selected according to the size, weight and construction of the door.

How INSERTA fixing works

INSERTA provides fast, tool-free attachment of the hinge cup to a correctly drilled cabinet door. The cup is placed into the 35mm boring, and the INSERTA lever is closed to expand the two integrated fixings inside the prepared Ø8mm side holes.

The two side holes use Blum’s 45/9.5mm drilling pattern. INSERTA therefore requires more than the central 35mm cup hole, but no separate hinge-cup fixing screws are needed.

CLIP mounting and door adjustment

The hinge arm connects to a compatible Blum CLIP mounting plate without tools. The door can be removed and refitted without disturbing the adjustment screws, making cabinet installation and maintenance quicker.

Once fitted, the door can be adjusted sideways and in depth. Height adjustment is provided by the selected mounting plate.

Related Blum products

• Blum 956.1004 short TIP-ON door unit and magnet
• Choose a compatible Blum CLIP mounting plate
• Compare the 74T1750.TL screw-on unsprung version
• View the sprung 107° inset INSERTA hinge
• View all Blum CLIP top hinges
• Read the Blum hinge selection guide

Supplied as one hinge only. The compatible mounting plate and TIP-ON mechanism must be ordered separately. INSERTA hinge-cup fixing screws are not required.

Frequently asked questions

Does the Blum 74T1790BTL have soft close?

No. This hinge does not contain BLUMOTION and is not soft-closing. It is an unsprung hinge intended primarily for TIP-ON push-to-open doors.

Why is the hinge unsprung?

An unsprung hinge does not pull the door closed. This allows a separate TIP-ON plunger to push the cabinet door open without working against a self-closing hinge spring.

What drilling does INSERTA require?

INSERTA requires a 35mm hinge-cup boring and two additional Ø8mm side-fixing holes. The side holes use Blum’s 45/9.5mm drilling pattern.

Does INSERTA require fixing screws?

No. Closing the INSERTA lever expands the hinge’s integrated fixings inside the correctly drilled side holes, securing the cup without separate screws.

Is a mounting plate included?

No. The hinge is supplied individually. A compatible Blum CLIP mounting plate must be ordered separately.

What is the difference between 74T1790BTL and 74T1750.TL?

Both are 107° unsprung inset hinges. The 74T1790BTL has tool-free INSERTA cup fixing, while the 74T1750.TL uses a traditional screw-on cup.
