Name: BLUM CLIP HINGE 107deg DUAL UNSPRUNG SCREW-ON
Brand: JULIUS BLUM UK LTD
SKU: HI74T1650TL
Price: 1.38 GBP
Availability: InStock

PRODUCT DESCRIPTION

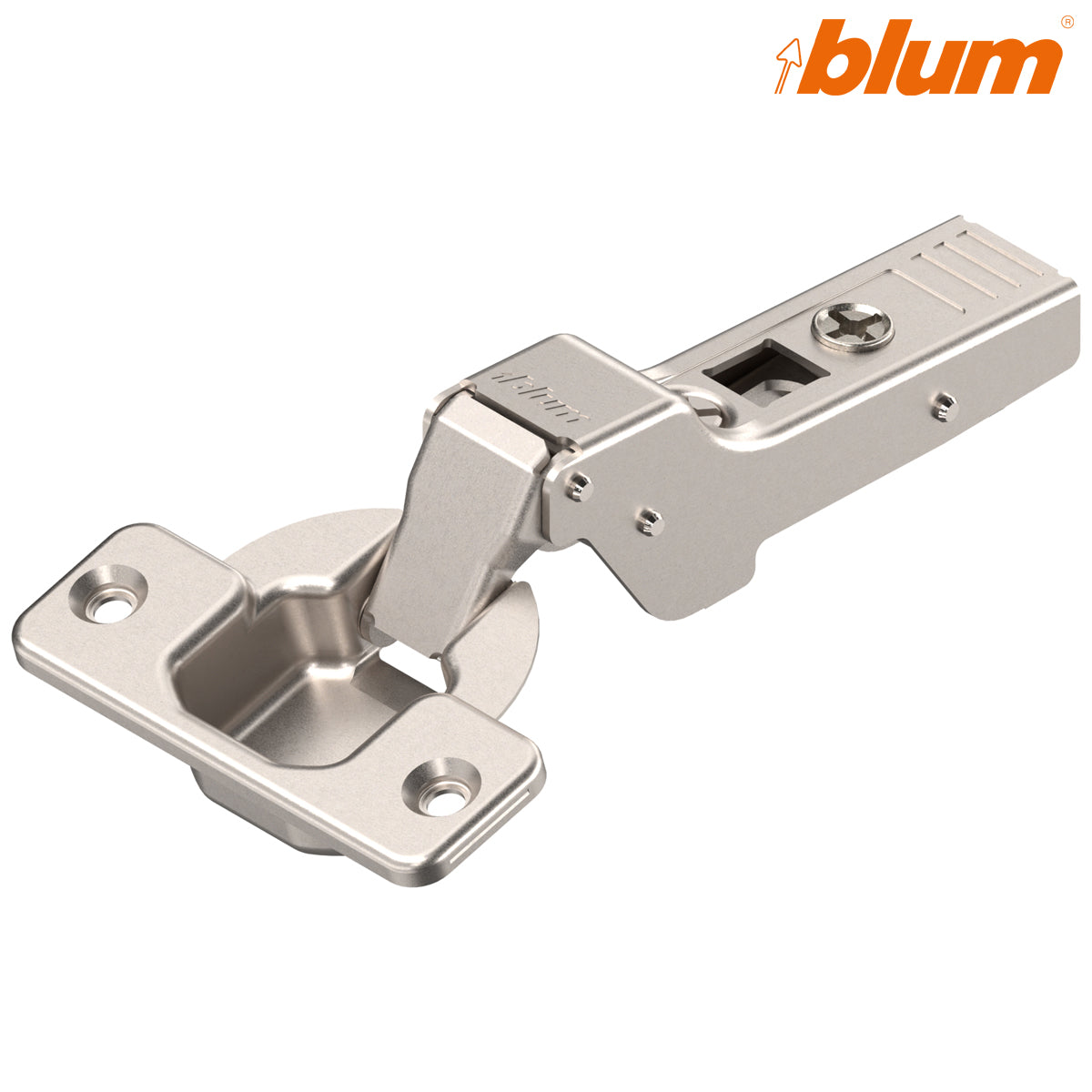

Blum Clip Top Thin Door Hinge - 107°, Dual Overlay, Unsprung, Screw-On, Nickel - HI74T1650TL

The Blum Clip Top Thin Door Hinge opening to 107° for dual overlay applications is specifically engineered for thin cabinet doors, typically 15-24mm thick, where a standard hinge cup would break through the door face. In an unsprung configuration with screw-on boss plate fixing, it is ideal for face-frame cabinet installations where the door overlays the frame on both sides. Designed for use with Blum Tip-On push-to-open mechanisms.

Part of the Blum Clip Top Hinges range. Pair with a Blum Clip Top Mounting Plate for a complete hinge solution. For the full Blum range visit our Blum collection.

Part number: HI74T1650TL
Opening angle: 107°
Application: Dual overlay - ideal for face-frame cabinets
Door thickness: 15–24mm thin door
Soft-close: Unsprung - designed for use with Blum Tip-On push-to-open mechanisms
Fixing: Screw-on boss plate
Finish: Nickel
Supplied as: 1 piece
Tool-free door removal and rehanging
3-dimensional adjustment for precise door alignment

Technical attributes

application	standard hinge
Cranking	Dual application
Opening angle	107
Closing mechanism	unsprung
hinge variant	Special exterior lever
hinge variant	with free movement for TIP-ON
Cover cap type	94M3603
Cover cap type	70.1663
Boss material	Steel boss
boss finish	Nickel plated
Boss assembly	screw-on
Flange width	57 mm
Flange length	20 mm
Flange height	3.2 mm
diameter hinge boss drilling	35 mm
distance between drillings	45 mm
eccentric position of fixing holes to hinge boss hole	9.5 mm
boss drilling depth	11.5 mm
Minimum drilling distance	3 mm
Maximum drilling distance	6 mm
arm material	Steel
arm finish	Nickel plated
collision measurement (hinge arm height)	31 mm
Fixed dimension / factory setting	1.5 mm
Type of side adjustment	With screw
Side adjustment	+/-2 mm
Type of depth adjustment	convenient with spiral screw
Depth adjustment	+3/-2 mm
Gap	1.5 mm
Item package	1 piece
packaging	Commercial packing
product combination	No
