PRODUCT DESCRIPTION

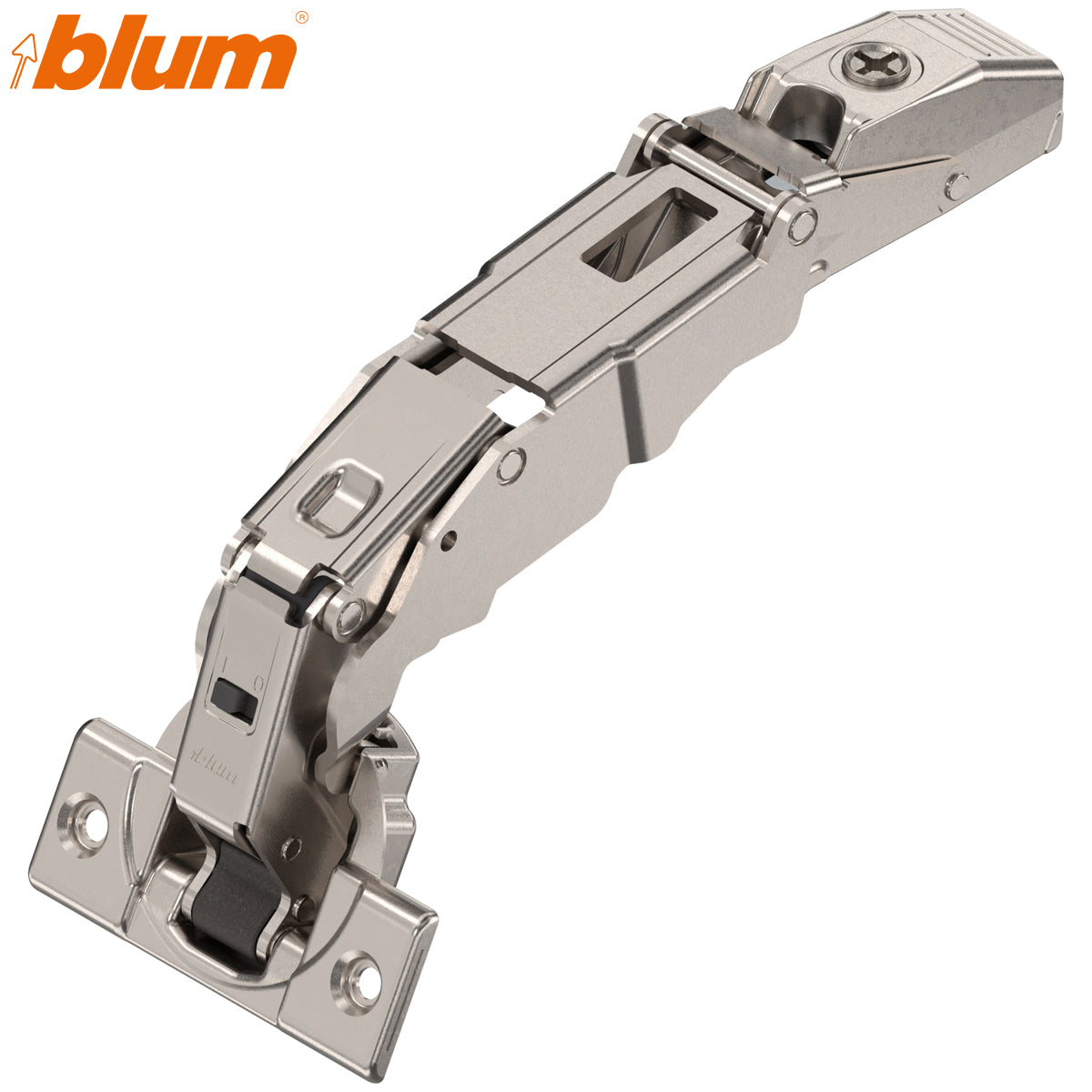

Blum 71B7550 CLIP top BLUMOTION 155° Overlay Hinge

The Blum 71B7550 is a wide-opening overlay cabinet hinge with a conventional screw-on cup and integrated BLUMOTION soft close. A 155° opening can make it easier to access pantry units, storage cabinets and fittings behind the door. Its zero-protrusion geometry can provide clearance for internal drawers and pull-outs when the overlay, plate position and cabinet are planned correctly; always check the completed installation rather than assuming clearance.

Choose and fit the screw-on version

Fit the 35 mm cup into a correctly prepared cabinet door and secure it with suitable screws. The hinge arm clips onto a separately purchased, compatible Blum CLIP mounting plate for tool-free door removal. This version is not an INSERTA or knock-in cup. Plan door thickness, edge profile, drilling distance, overlay, neighbouring surfaces and handle clearance before drilling. The existing product specification describes use with compatible doors up to 24 mm thick, subject to Blum's planning dimensions and a trial fitting.

  • Blum article 71B7550; Hart SKU HI71B7550.
  • 155° wide-opening overlay hinge with zero-protrusion geometry when correctly planned.
  • Sprung self-closing action and integrated, individually switchable BLUMOTION.
  • 35 mm screw-on cup and CLIP connection to a cabinet-side mounting plate.
  • Nickel-plated construction; one hinge supplied, mounting plate not included.

Measure clearance alongside walls, neighbouring fronts and appliances before installation. If the full opening is unsuitable, check a compatible opening-angle stop against the specific hinge and cabinet before ordering. Choose a Blum CLIP top mounting plate and browse CLIP top hinges. For a 155° overlay BLUMOTION alternative with tool-free cup fixing, compare the 71B7590 INSERTA hinge; it needs a different door drilling pattern.

Frequently Asked Questions

Does this hinge include soft close?

Yes. BLUMOTION is integrated and can be switched off on an individual hinge when needed.

Will an inner drawer clear the open door?

The hinge has zero-protrusion geometry, but actual clearance depends on the cabinet layout, overlay, plate position and adjustment. Check with a trial installation.

Is the cup screw-on or INSERTA?

71B7550 has a conventional 35 mm screw-on cup. The 71B7590 is the separate INSERTA version.

Is the mounting plate included?

No. Choose a compatible Blum CLIP mounting plate separately.

Is this supplied as a pair?

No. One hinge is supplied.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
