BLUM CLIP BLUMOTION WIDE HINGE 155deg 0-PROTRUSION OVERLAY INSERTA

BLUM CLIP BLUMOTION WIDE HINGE 155deg 0-PROTRUSION OVERLAY INSERTA

Stock Code: HI71B7590

£6.79 GBP
Sale
View full details
Previous
BLUM CLIP BLUMOTION WIDE HINGE 155deg DUAL SCREW-ON
Next
BLUM CLIP BLUMOTION PROFILE HINGE 125deg 0-PROTRUSION OVERLAY SCREW-ON

PRODUCT DESCRIPTION

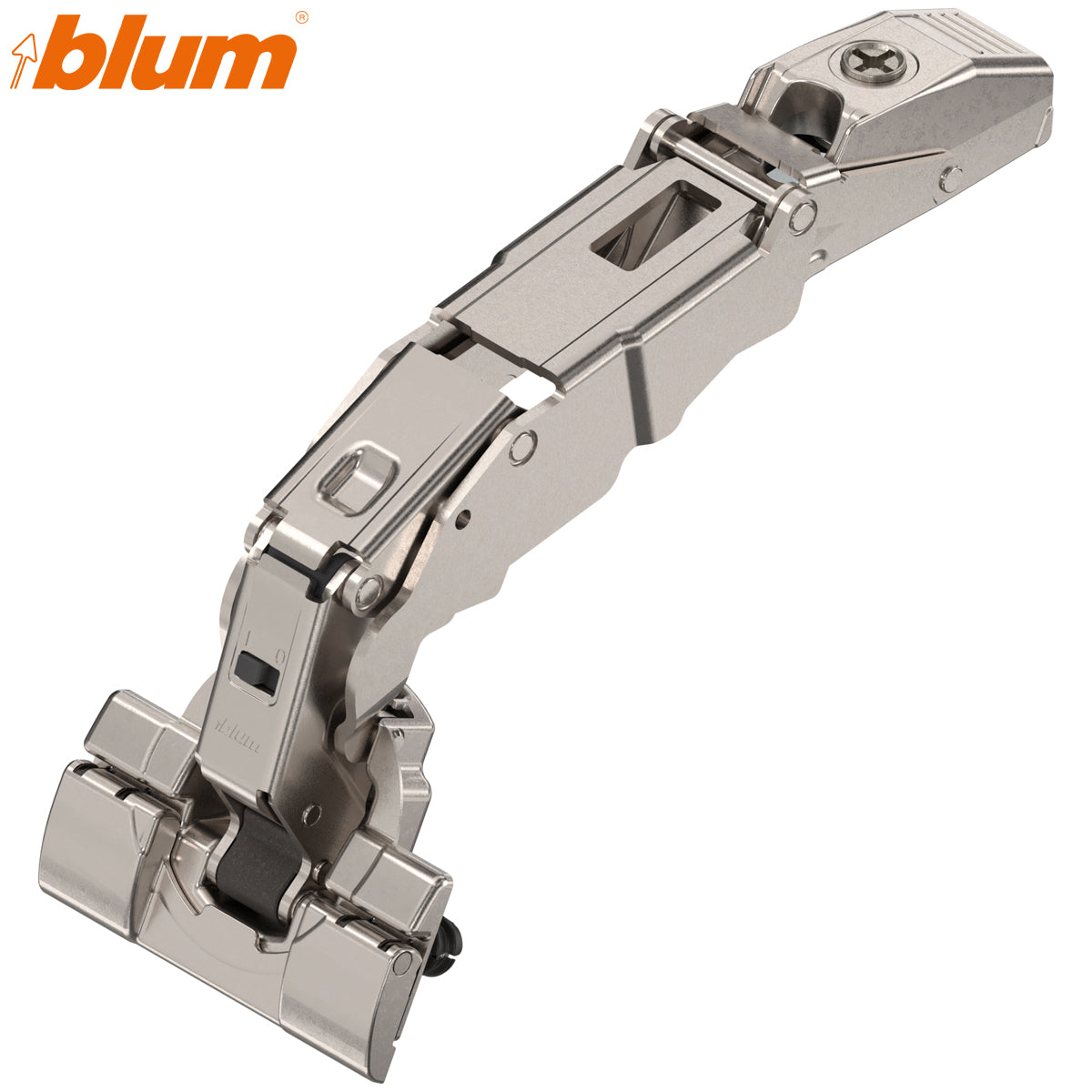

Blum 71B7590 CLIP top BLUMOTION 155° INSERTA Hinge

The Blum 71B7590 is a wide-angle overlay hinge with a 155° opening, integrated BLUMOTION soft close and tool-free INSERTA cup fixing. Its zero-protrusion geometry can help the open door clear the path of internal drawers and pull-outs when the cabinet, overlay and mounting plate are planned correctly. Check the actual clearance with a trial installation rather than assuming every pull-out layout will fit.

INSERTA fixing and installation

INSERTA secures the hinge cup to an accurately prepared cabinet door without separate cup-fixing screws. It still needs a complete drilling pattern, including the 35 mm cup bore and the additional fixing holes specified for this hinge. The arm clips onto a compatible Blum CLIP mounting plate, sold separately, so the door can be removed without disturbing the cup. INSERTA is not interchangeable with a screw-on or knock-in cup drilling pattern.

  • Blum article 71B7590; Hart SKU HI71B7590.
  • 155° wide-opening overlay hinge with zero-protrusion geometry when correctly planned.
  • Sprung self-closing action with integrated, switchable BLUMOTION.
  • Tool-free INSERTA cup fixing and CLIP connection to the cabinet-side plate.
  • Nickel-plated finish; one hinge supplied, mounting plate not included.

Plan door thickness and profile, drilling, overlay, plate height and nearby walls, handles and other fronts before installation. The current product specification describes compatible doors up to 24 mm thick subject to planning, not an automatic clearance guarantee. Browse Blum CLIP top mounting plates and the CLIP top hinge range. For a conventional screw-on cup in a related 155° overlay application, compare the 71B7550 screw-on hinge. Check any optional opening-angle stop against this exact hinge before ordering.

Frequently Asked Questions

What does INSERTA mean?

It is Blum's tool-free hinge-cup fixing for a correctly drilled door. It does not mean the door needs no drilling.

Does this hinge include soft close?

Yes. Integrated BLUMOTION controls closing and can be switched off on an individual hinge.

Will an inner drawer clear the open door?

The hinge has zero-protrusion geometry, but clearance depends on the actual overlay, plate position, cabinet and inner fitting. Check a trial installation.

Is the mounting plate included?

No. Select a compatible Blum CLIP mounting plate separately.

What is the difference from 71B7550?

71B7590 has INSERTA cup fixing; 71B7550 uses conventional screw-on cup fixing. Their door preparation differs.

Is it supplied as a pair?

No. One hinge is supplied.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
