PRODUCT DESCRIPTION

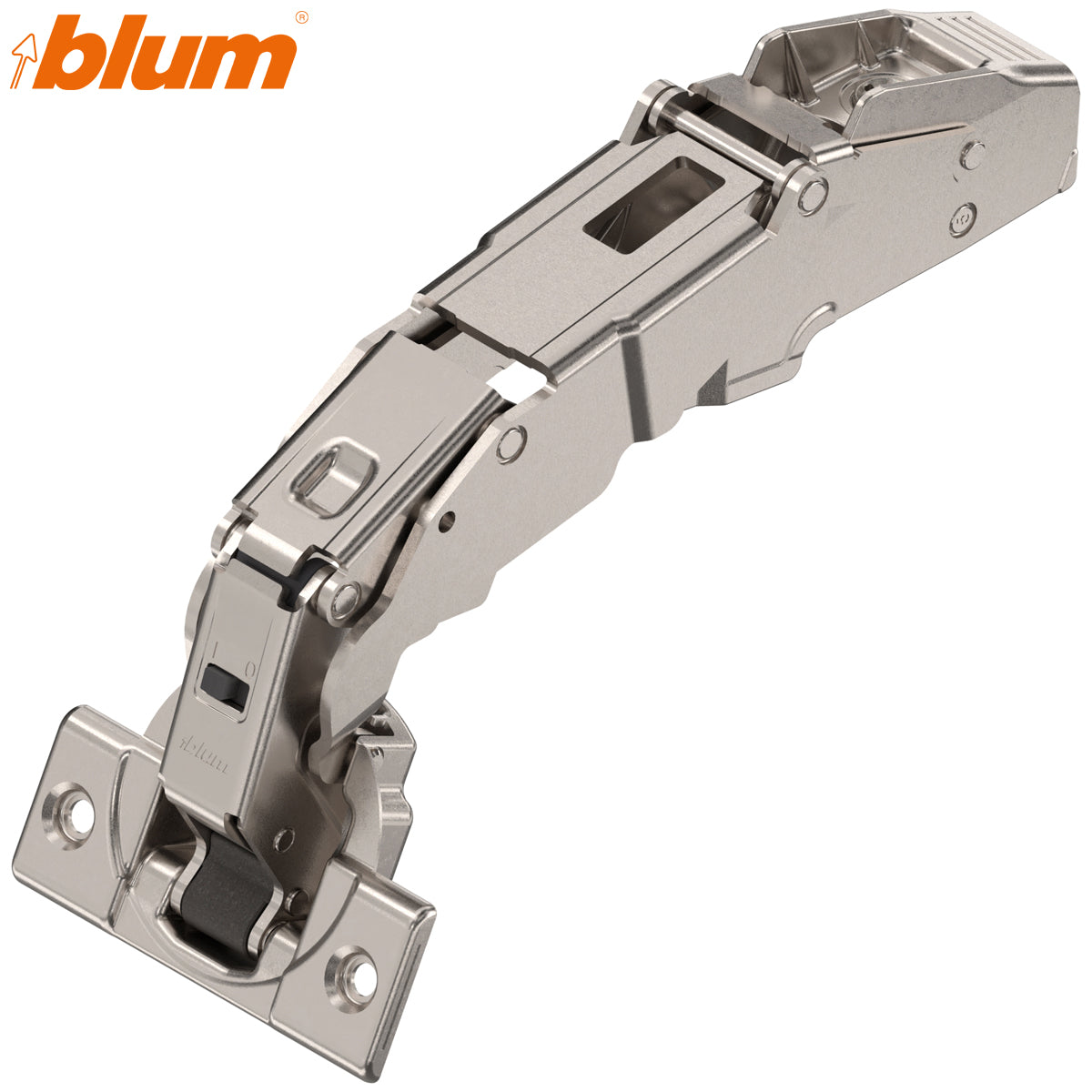

Blum 71B7650 CLIP top BLUMOTION 155° Half-Overlay Hinge

The Blum 71B7650 is a wide-opening hinge for a dual or half-overlay cabinet application, where two doors share a central partition and each covers part of that panel. Its half-cranked arm, 155° opening and integrated BLUMOTION soft closing offer wide access with controlled closing. This is the screw-on cup version, not the INSERTA version.

Plan the shared-panel installation

The 35 mm hinge cup attaches to a prepared door with suitable screws; the arm clips without tools onto a separately purchased compatible Blum CLIP mounting plate. Plan panel thickness, door overlay, drilling distance, plate height and nearby walls or handles before fitting. An internal drawer or pull-out may benefit from the wide opening, but do not assume zero-protrusion clearance from the full-overlay version applies to this half-overlay configuration. Check the actual door and pull-out path with a trial installation.

  • Blum part 71B7650; Hart SKU HI71B7650.
  • 155° dual / half-overlay application with half-cranked hinge arm.
  • Sprung self-closing action and integrated, switchable BLUMOTION.
  • 35 mm screw-on cup; CLIP connection to the cabinet-side mounting plate.
  • Nickel-plated finish; one hinge supplied, mounting plate sold separately.

Browse Blum CLIP top mounting plates. If the cabinet requires a full-overlay screw-on hinge rather than this half-overlay version, compare the 71B7550 155° hinge. That is a different arm geometry, not a direct substitute. Check any angle restrictor or inset conversion against current Blum planning details before use.

Frequently Asked Questions

What is dual or half overlay?

Two cabinet doors share a central partition, each covering part of the panel. It does not mean two hinges are supplied.

Is 71B7650 a full-overlay hinge?

No. It has a half-cranked arm for a half-overlay application. The 71B7550 is the separate full-overlay screw-on version.

Does it include soft closing?

Yes. BLUMOTION is integrated and can be deactivated on an individual hinge.

What does screw-on mean?

The cup is secured to the door with screws; it does not mean the cabinet-side mounting plate is included.

Will an internal pull-out clear the open door?

That depends on the actual half-overlay layout, door dimensions, plate and pull-out. Confirm clearance with a trial fitting.

Is it sold as a pair?

No. This listing is for one hinge.

TECHNICAL DETAILS

  • Application: Dual
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
