PRODUCT DESCRIPTION

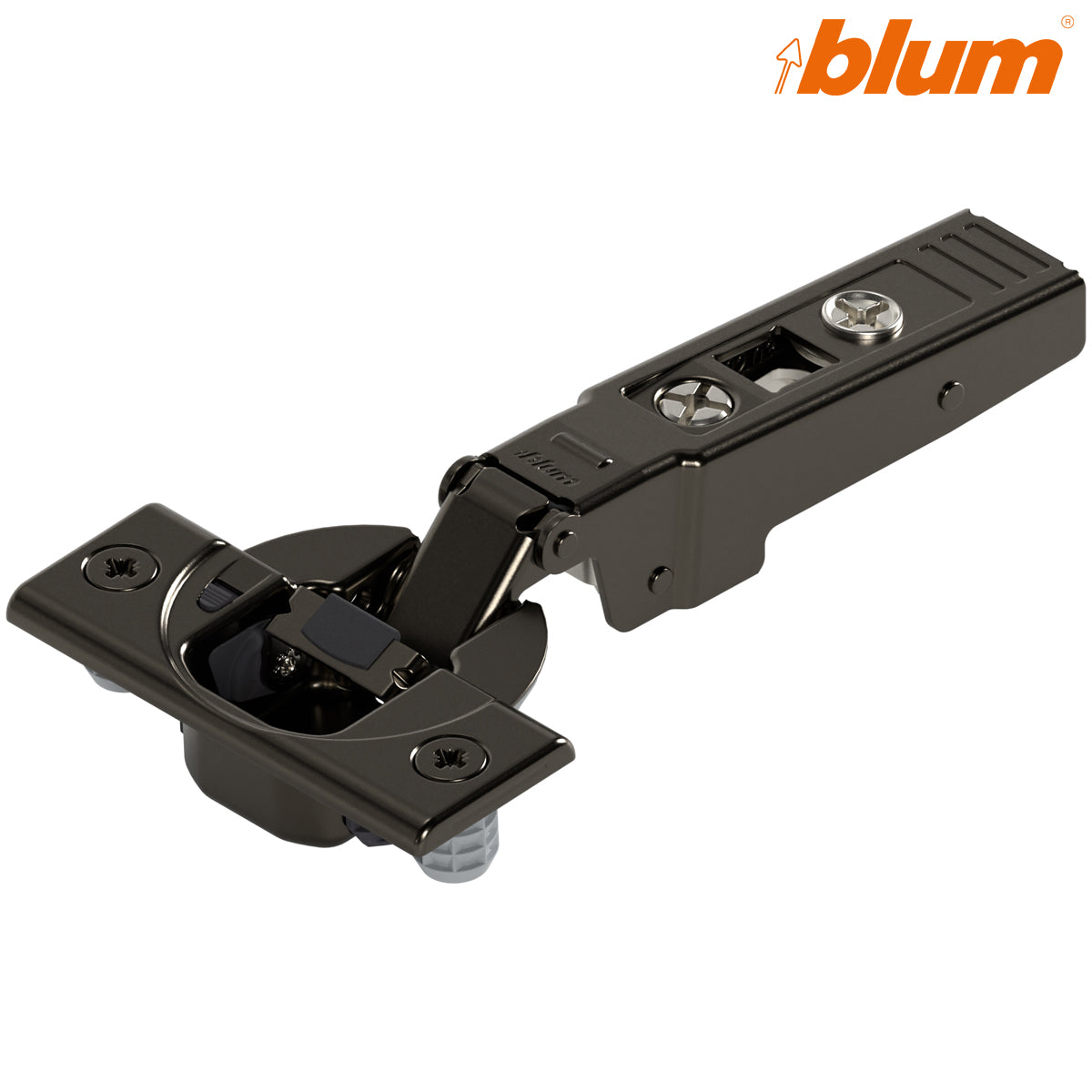

Blum 71B9580 CLIP top BLUMOTION 95° thick/profile-door overlay knock-in hinge – Onyx Black

The Blum 71B9580 is a 95° concealed overlay hinge for thick and profiled cabinet doors. Its straight arm positions the closed door over the cabinet side panel, while the controlled opening angle suits installations where a wider-opening hinge is unnecessary or could cause interference.

The Onyx Black finish coordinates with dark cabinetry and contemporary furniture interiors. Integrated BLUMOTION provides controlled closing, and the damping function can be deactivated on individual hinges when less resistance is required.

Technical details

  • Blum part number: 71B9580
  • Hart Wholesale SKU: HIO71B9580
  • Type: CLIP top BLUMOTION concealed hinge
  • Application: overlay
  • Hinge arm: straight
  • Opening angle: 95°
  • Recommended front thickness: approximately 16–32 mm, subject to application planning
  • Closing action: spring closing with integrated, switchable BLUMOTION
  • Hinge-cup fixing: knock-in with pre-fitted dowels
  • Hinge-cup diameter: 35 mm
  • Cup drilling depth: 13 mm
  • Fixing holes: two 8 mm holes on 45 mm centres
  • Fixing-hole offset: 9.5 mm
  • Cup drilling distance: 3–7 mm
  • Side adjustment: approximately ±2 mm
  • Depth adjustment: approximately +3/-2 mm
  • Material: steel
  • Finish: Onyx Black
  • Quantity: one hinge
  • Mounting plate: supplied separately

Overlay-door planning

An overlay hinge positions the closed door over the front edge of the cabinet side panel. The exact overlay depends on the cup drilling distance, door thickness, selected mounting-plate height, edge profile and cabinet construction.

Plan the complete 95° opening movement and confirm the required clearances before drilling. Thick or profiled fronts may need a trial installation to verify the door gap and movement.

Knock-in cup fixing

The knock-in hinge cup uses pre-fitted dowels that are pressed into two correctly drilled 8 mm fixing holes beside the 35 mm cup recess. This creates a repeatable fixing arrangement without separate cup-fixing screws.

Knock-in installation should be completed using suitable insertion equipment or an appropriate workshop assembly method. It is different from the lever-operated, tool-free INSERTA fixing system.

The knock-in specification applies to the hinge-to-door connection. A separate Blum CLIP mounting plate is still required on the cabinet.

For the verified nickel counterpart, see the Blum 71B9580 95° overlay knock-in hinge. For screw-on cup fixing, compare the Blum 71B9550 screw-on hinge. Browse the Blum CLIP top hinge range.

Matching components

The mounting plate, suitable insertion equipment, fixing components and decorative cover caps are supplied separately. This listing is for one hinge.

Frequently Asked Questions

What is a knock-in Blum hinge?

A knock-in hinge has pre-fitted fixing dowels that are pressed into correctly prepared holes in the door, removing the need for separate hinge-cup fixing screws.

Is knock-in the same as INSERTA?

No. INSERTA uses a lever-operated, tool-free locking mechanism. A knock-in hinge uses pre-fitted dowels and normally requires suitable insertion equipment.

Is the Blum 71B9580 suitable for thick doors?

Yes. It is designed for thick and profiled fronts. Planning information covers front thicknesses from approximately 16–32 mm, subject to the door profile and opening clearance.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can BLUMOTION be deactivated?

Yes. The integrated BLUMOTION mechanism can be switched off when reduced closing resistance is needed for a smaller or lighter door.

What opening angle does this hinge provide?

This hinge provides a controlled 95° opening angle. Check the complete cabinet and door clearances before installation.

Is this the nickel-plated version?

No. HIO71B9580 is finished in Onyx Black. The active nickel counterpart is listed separately as HI71B9580.

Is one hinge supplied?

Yes. This listing is for one hinge. The mounting plate is not included.

TECHNICAL DETAILS

  • Application: Overlay
  • Diameter: 35mm
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
