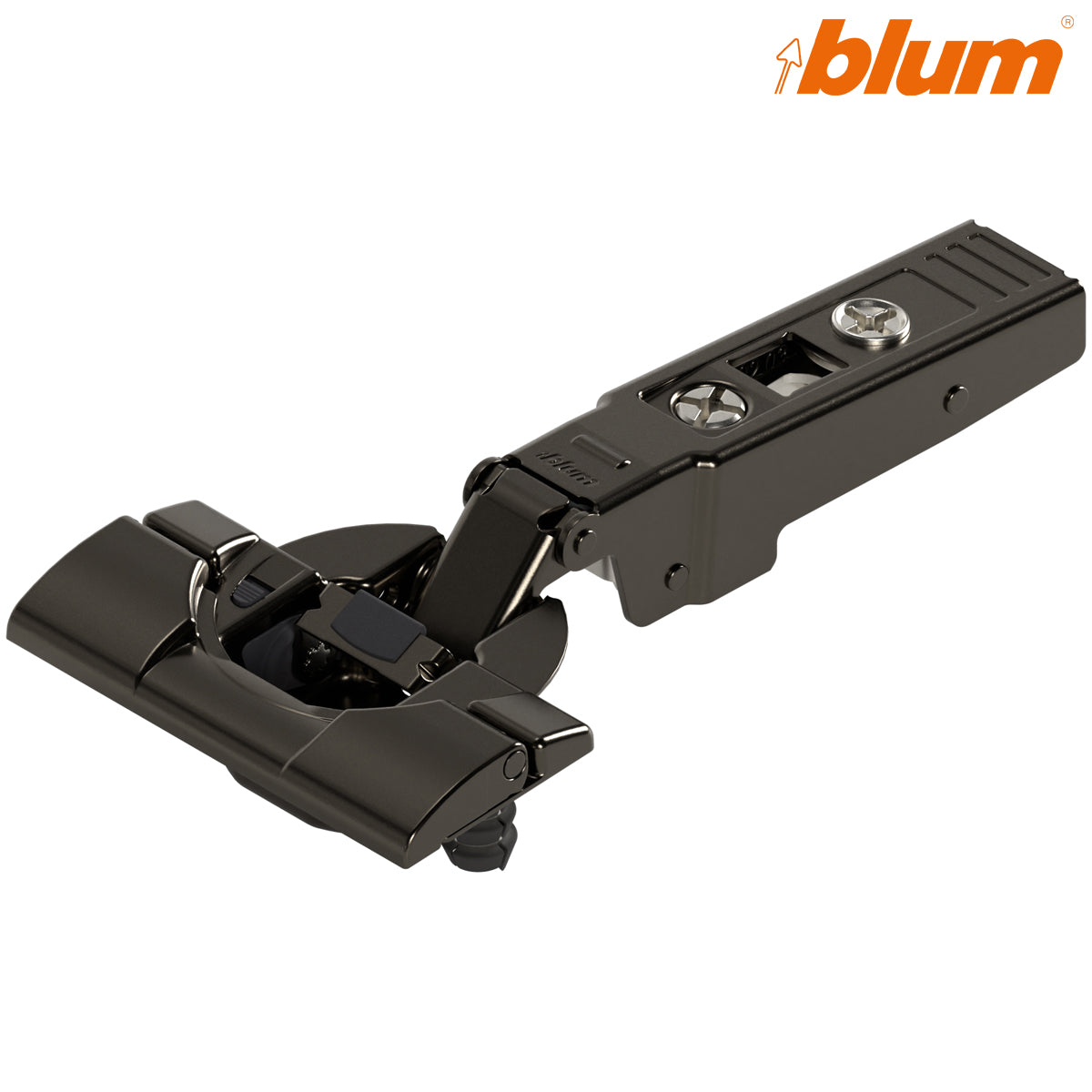

Blum 71B9590 CLIP top BLUMOTION 95° thick/profile-door overlay INSERTA hinge – Onyx Black

The Blum 71B9590 is a specialist 95° concealed hinge for overlay cabinet doors with thick or decoratively profiled fronts. Its straight arm is intended for overlay applications, with the final door position determined by the selected mounting plate, cup drilling distance and cabinet construction.

The Onyx Black finish coordinates with dark cabinetry and contemporary furniture interiors. Integrated BLUMOTION provides controlled closing, and the damping function can be deactivated on individual hinges when less resistance is required.

Technical details

• Blum part number: 71B9590
• Hart Wholesale SKU: HIO71B9590
• Type: CLIP top BLUMOTION concealed hinge
• Application: overlay thick or profiled cabinet door
• Hinge arm: straight
• Opening angle: 95°
• Closing action: spring closing with integrated, switchable BLUMOTION
• Hinge-cup fixing: INSERTA tool-free locking
• Hinge-cup diameter: 35 mm
• Cup drilling depth: 13 mm
• Fixing holes: two 8 mm holes on 45 mm centres
• Cup drilling distance: 3–7 mm, subject to application planning
• Side adjustment: approximately ±2 mm
• Depth adjustment: approximately +3/-2 mm by spiral screw
• Height adjustment: up to approximately ±3 mm with a suitable mounting plate
• Material: steel
• Finish: Onyx Black
• Quantity: one hinge
• Mounting plate: supplied separately

INSERTA tool-free installation

INSERTA secures the hinge cup into a correctly prepared door without conventional cup-fixing screws. The 35 mm cup and two 8 mm fixing holes must be drilled accurately before the INSERTA locking mechanism is closed.

INSERTA describes the connection between the hinge cup and the door. A compatible Blum CLIP mounting plate is still required on the cabinet and must be ordered separately.

Planning a thick or profiled door

Available clearance changes according to the door thickness, edge profile, cup drilling distance and mounting-plate height. For unusually thick or deeply profiled fronts, make a trial installation before drilling every door.

Check the existing hinge number, 95° opening angle, overlay arm configuration, INSERTA cup fixing and Onyx Black finish before ordering a replacement. Do not mix CLIP top BLUMOTION and standard non-BLUMOTION CLIP top hinges on the same cabinet door.

For the verified nickel counterpart, see the Blum 71B9590 overlay INSERTA hinge. For screw-on fixing, compare the Blum 71B9550 screw-on hinge. For knock-in fixing, compare the Blum 71B9580 knock-in hinge. Browse the Blum CLIP top hinge range.

Matching components

The cabinet mounting plate and optional cover caps are supplied separately. This listing is for one hinge.

Frequently Asked Questions

Is the Blum 71B9590 intended for thick cabinet doors?

Yes. It has specialist geometry for thick and decoratively profiled furniture fronts. Exact suitability depends on the door thickness, edge profile, cup position and selected mounting plate.

What does INSERTA mean?

INSERTA is Blum’s tool-free method of securing the hinge cup into a prepared 35 mm cup hole with two additional 8 mm fixing holes. It does not describe the cabinet mounting plate.

Is a mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected according to the cabinet construction and required door overlay.

Can BLUMOTION be deactivated?

Yes. The integrated BLUMOTION mechanism can be switched off when reduced closing resistance is desirable for a small or lightweight door.

Can this hinge be used with TIP-ON push-to-open?

Not as a normal combination. This is a sprung, self-closing BLUMOTION hinge. A properly planned unsprung hinge application should be used for TIP-ON push-to-open doors.

What opening angle does this hinge provide?

This hinge provides a controlled 95° opening angle. Check the complete cabinet and door clearances before installation.

Is one hinge supplied?

Yes. This listing is for one hinge. The mounting plate is not included.
