BLUM CLIP BLUMOTION PROFILE HINGE 95deg OVERLAY SCREW-ON

BLUM CLIP BLUMOTION PROFILE HINGE 95deg OVERLAY SCREW-ON

Stock Code: HI71B9550

£3.39 GBP
Sale
View full details
Previous
BLUM CLIP BLUMOTION PROFILE HINGE 95deg OVERLAY KNOCK-IN
Next
Blum 71B950A CLIP top BLUMOTION 95° Overlay Aluminium-Frame Hinge

PRODUCT DESCRIPTION

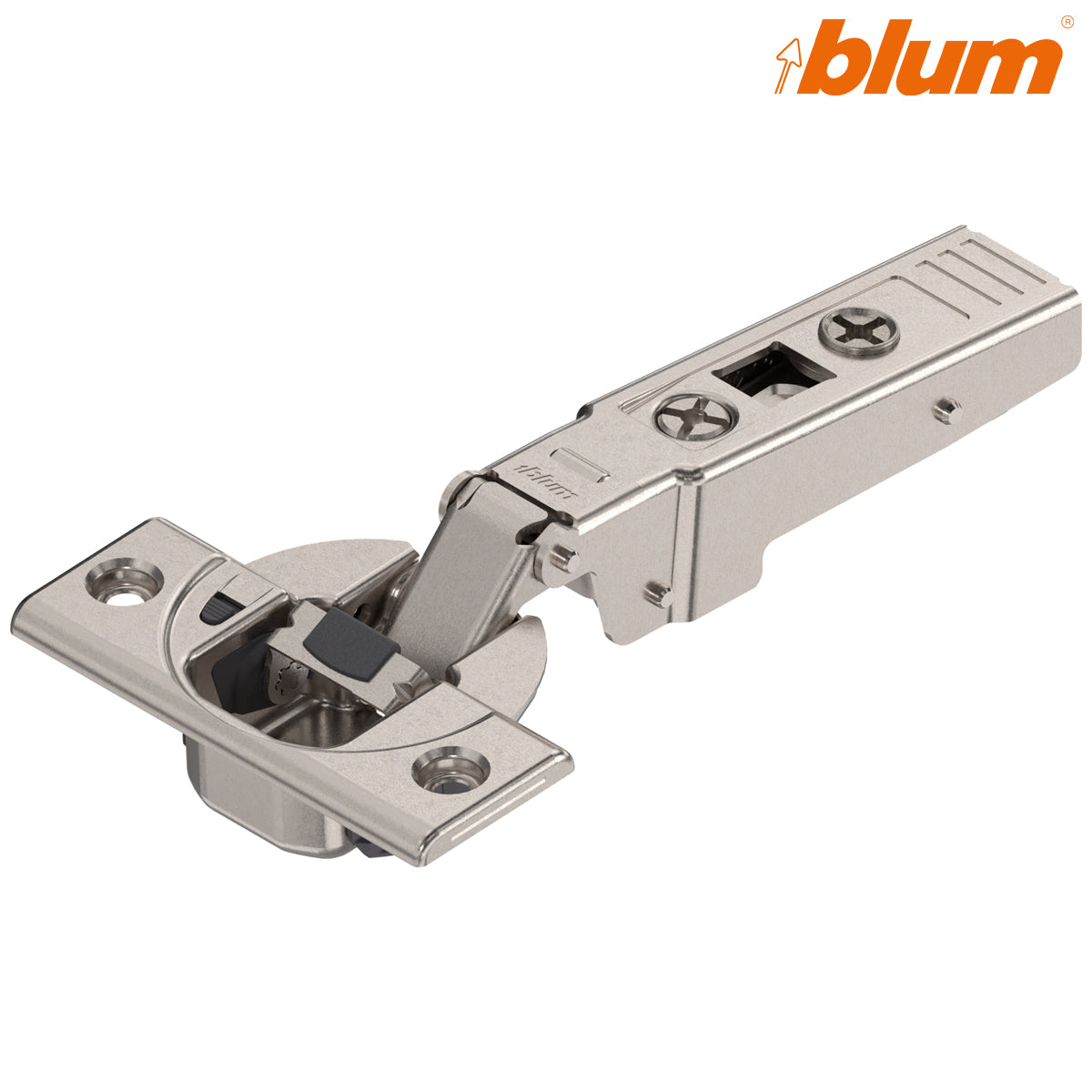

Blum 71B9550 CLIP top BLUMOTION 95° Overlay Hinge

The Blum 71B9550 is a nickel-plated, sprung overlay hinge for compatible thick or profiled cabinet fronts. Its straight arm positions the closed door over the cabinet side and its 95° opening suits installations where a wider opening is not needed. Integrated BLUMOTION provides controlled soft closing and can be deactivated on an individual hinge when less damping is required.

Plan the door and cup fixing

This version has a conventional screw-on 35 mm cup, secured into a correctly prepared door with suitable screws. It is not the shaped boss used for a narrow aluminium-profile frame, nor the INSERTA version. The arm clips onto a separately purchased Blum CLIP mounting plate without tools. Check the actual front thickness and edge profile, cup drilling distance, plate height, overlay and opening clearance before drilling; a trial installation is sensible for profiled fronts.

  • Blum article 71B9550; Hart SKU HI71B9550.
  • 95° overlay application for compatible thick and profiled furniture fronts.
  • Sprung self-closing action with integrated, switchable BLUMOTION.
  • Screw-on 35 mm cup; the existing specification lists 13 mm cup depth, 45 mm fixing-hole centres, 9.5 mm offset and 3–7 mm cup drilling distance.
  • Nickel-plated steel; one hinge supplied, mounting plate and suitable cup screws separate.

Browse Blum CLIP top mounting plates and the CLIP top hinge range. For a 95° overlay BLUMOTION hinge with INSERTA cup fixing, compare the 71B9590; it uses a different door-fixing method. If you need a narrow aluminium-profile frame hinge, select a hinge specifically designed for that profile instead.

Frequently Asked Questions

What is an overlay cabinet hinge?

It positions the closed door over the cabinet side. The finished overlay depends on the cabinet, cup drilling and mounting plate.

Is 71B9550 for a thick or profiled door?

Yes, provided the actual front profile, drilling and opening clearance suit the planned installation. Do not choose solely from a thickness figure.

Is it an aluminium-frame hinge?

No. This version has a conventional 35 mm screw-on cup, unlike a shaped boss for a narrow aluminium profile.

Is the mounting plate included?

No. Select a compatible cabinet-side Blum CLIP plate separately.

Can BLUMOTION be switched off?

Yes. The integrated damping can be deactivated on an individual hinge when required.

TECHNICAL DETAILS

  • Application: Overlay
  • Size: 95mm
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
