HOMEPAGE > BLUM AVENTOS HK-XS LIFT MECHANISM 0500-1200 MD TIP-ON

  • BLUM AVENTOS HK-XS LIFT MECHANISM 0500-1200 MD TIP-ON by JULIUS BLUM UK LTD
1 1

BLUM AVENTOS HK-XS LIFT MECHANISM 0500-1200 MD TIP-ON

BLUM AVENTOS HK-XS LIFT MECHANISM 0500-1200 MD TIP-ON

Stock Code: HI20K1301T

£10.09 GBP
Sale
View full details

PRODUCT DESCRIPTION

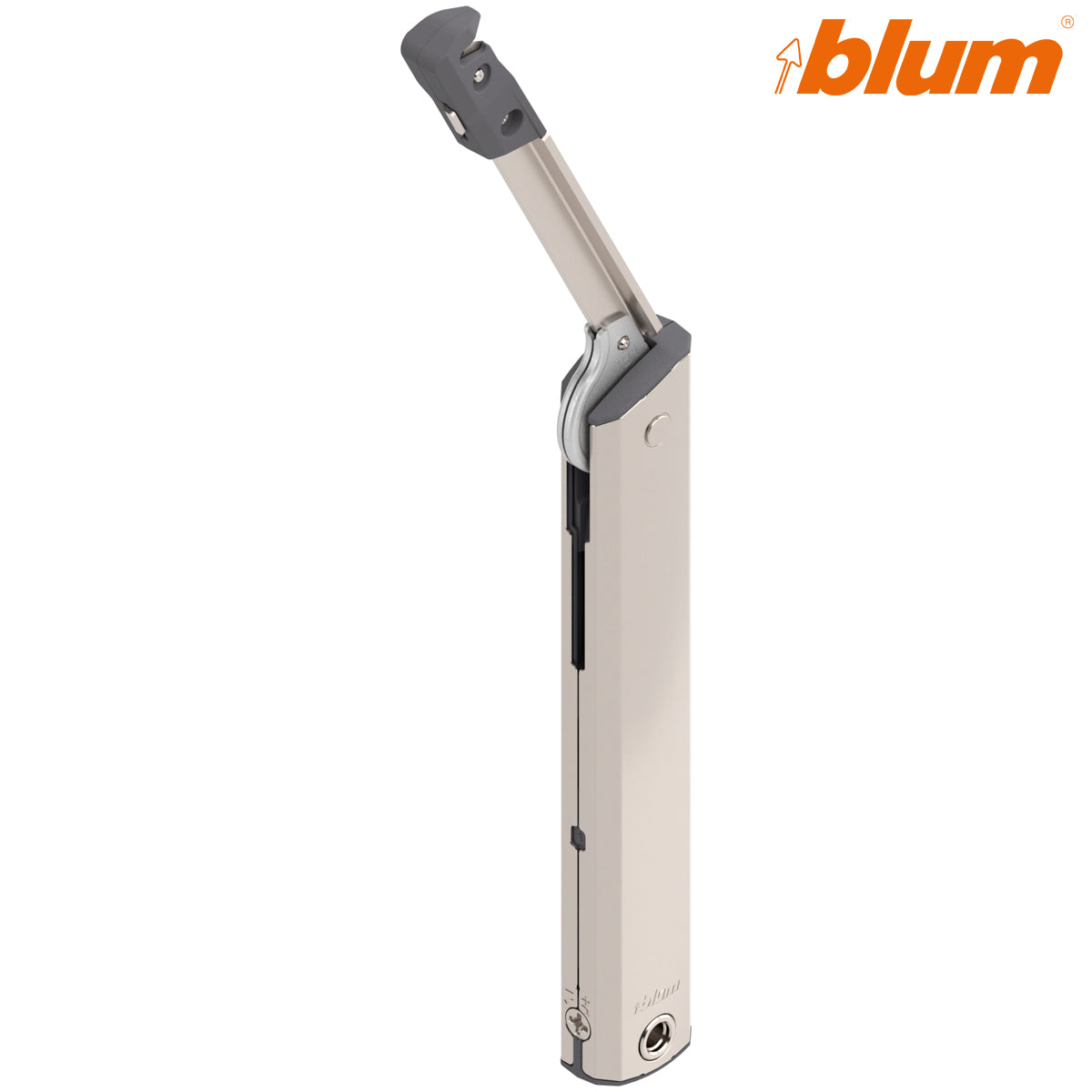

The Blum AVENTOS HK-XS lift mechanism MD TIP-ON 20K1301T is a compact stay-lift system with integrated TIP-ON for handleless small overhead cabinet fronts with an opening moment of 500–1200 Nmm. The front opens with a gentle push and rises upward, staying open to give clear access to the cabinet interior.

AVENTOS HK-XS TIP-ON is Blum’s push-to-open stay-lift for small wall unit doors and flap applications — ideal for handleless kitchen designs where a clean, uninterrupted front face is required.

Key features

  • Genuine Blum AVENTOS HK-XS lift mechanism with integrated TIP-ON
  • Blum article number 20K1301T
  • Stock code HI20K1301T
  • Opening moment range: 500–1200 Nmm (MD — Medium Duty)
  • Push-to-open handleless operation
  • Front holds securely in the open position
  • Supplied as 1 piece

Opening moment selection

TIP-ON versions for the HK-XS range:

Mechanism Opening moment Duty
20K1101T 200–1000 Nmm LD — Light Duty
20K1301T (this product) 500–1200 Nmm MD — Medium Duty
20K1501T 800–1600 Nmm HD — Heavy Duty

Use the Blum Product Configurator to calculate the correct opening moment for your front before ordering.

Required separately

This mechanism requires two front fixing brackets, ordered separately — one of each:

  • 20K4101 — AVENTOS HK-XS front fixing bracket (one required)
  • 20K5101 — AVENTOS HK-XS front fixing bracket (one required)

Both brackets must be ordered to complete the installation. Check the Blum Product Configurator for the full component list for your specific cabinet configuration.

Product details

  • Manufacturer: Blum
  • Range: AVENTOS HK-XS
  • Blum article number: 20K1301T
  • Stock code: HI20K1301T
  • Opening moment: 500–1200 Nmm
  • Duty: MD (Medium Duty)
  • Operation: TIP-ON push-to-open
  • Barcode: 9009494069174

Browse the full Blum AVENTOS HK range or use the Blum Product Configurator to verify your specification.

Frequently asked questions

What is the Blum AVENTOS HK-XS lift mechanism MD TIP-ON 20K1301T used for?

It is a compact push-to-open stay-lift for small overhead cabinet fronts with an opening moment of 500–1200 Nmm. The front opens with a gentle push and stays open.

What brackets are needed with this mechanism?

Two front fixing brackets are required, ordered separately — one 20K4101 and one 20K5101. Both must be ordered to complete the installation.

Is a separate TIP-ON catch required?

No. The TIP-ON function is integrated into this mechanism. No separate catch is needed.

What is the difference between LD, MD and HD?

LD, MD and HD refer to the opening moment range the mechanism is rated for. Use the Blum Product Configurator to calculate the correct opening moment for your front before selecting a mechanism.

TECHNICAL DETAILS

  • Colour: Nickel
