Name: BLUM CLIP HINGE 110deg OVERLAY UNSPRUNG INSERTA
Brand: JULIUS BLUM UK LTD
SKU: HI70T3590TL
Price: 2.13 GBP
Availability: InStock

PRODUCT DESCRIPTION

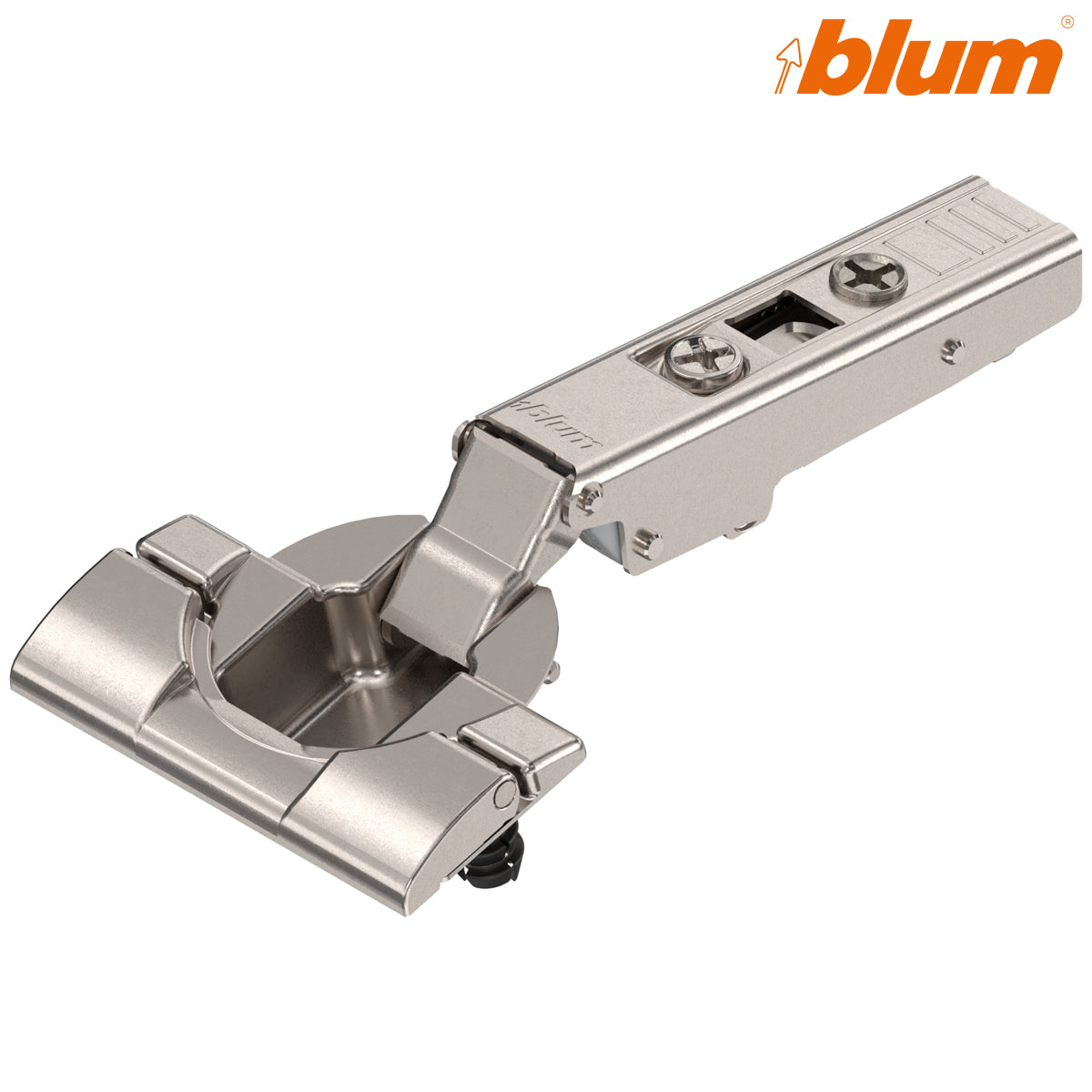

Blum 70T3590.TL CLIP Top 110° Overlay Unsprung INSERTA Hinge - Nickel

The Blum 70T3590.TL is a free-moving, unsprung concealed hinge for full-overlay cabinet doors. Its unsprung action makes it particularly suitable for handleless doors operated by Blum TIP-ON.

This version features Blum’s INSERTA hinge-cup fixing. The hinge cup can be secured to a correctly prepared cabinet door without screws or insertion machinery, making installation fast and repeatable.

The 70T3590.TL does not contain a closing spring or integrated BLUMOTION. When combined with a compatible TIP-ON unit, the cabinet door opens with a light press and moves freely without working against a hinge spring.

Key features

Genuine Blum CLIP top concealed hinge
Blum part number: 70T3590.TL
Hart Wholesale stock code: HI70T3590TL
Designed for full-overlay cabinet doors
110° opening angle
Unsprung, free-moving hinge action
Suitable for Blum TIP-ON handleless applications
Tool-free INSERTA hinge-cup fixing
Standard 35mm hinge cup
Two 8mm fixing holes on 45mm centres
Tool-free CLIP door attachment and removal
Three-dimensional door adjustment with a suitable mounting plate
Convenient spiral-screw depth adjustment
Suitable for cabinet doors up to 24mm thick
Nickel-plated steel construction
Supplied as one hinge

Technical specifications

Application	Standard hinge
Cranking	Overlay application
Opening angle	110
Closing mechanism	Unsprung
Hinge variant	With free movement for TIP-ON
Cover cap type	90M2503
Cover cap type	70.1503
Boss material	Steel boss
Boss finish	Nickel plated
Boss assembly	Tool-free with INSERTA

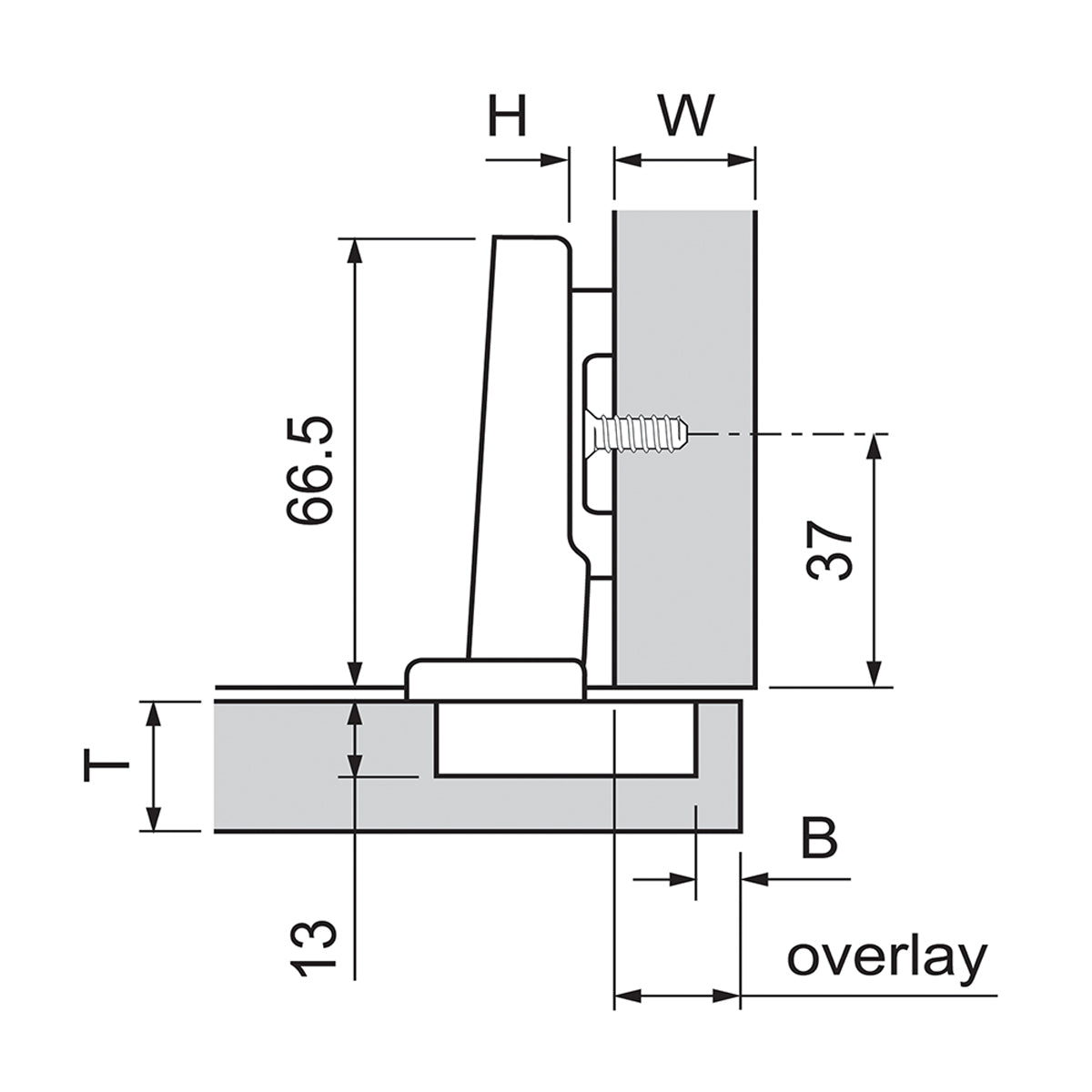

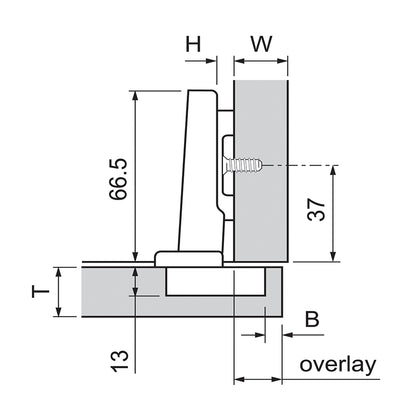

Flange width	57 mm
Flange length	27.5 mm
Flange height	6.4 mm
Diameter hinge boss drilling	35 mm
Diameter of fixing holes	8 mm
distance between drillings	45 mm
Eccentric position of fixing holes to hinge boss hole	9.5 mm
Boss drilling depth	13 mm
Minimum drilling distance	3 mm
Maximum drilling distance	7 mm
Arm material	Steel
Arm finish	Nickel plated
Collision measurement (hinge arm height)	21.5 mm
Fixed dimension / factory setting	11 mm
Type of side adjustment	With screw
Side adjustment	+/-2 mm
Type of depth adjustment	convenient with spiral screw
Depth adjustment	+3/-2 mm
Gap	1.5 mm
Item package	1 piece
Packaging	Commercial packing
Product combination	No

Designed for TIP-ON handleless doors

An unsprung hinge does not pull the cabinet door closed. This free movement allows a compatible TIP-ON ejector to push the door open when the front is pressed.

For standard overlay doors, pair the hinge with a suitable Blum TIP-ON short door unit and magnet. The TIP-ON mechanism is a separate product and is not supplied with this hinge.

What is Blum INSERTA?

INSERTA is Blum’s tool-free method of securing the hinge cup to the cabinet door. The hinge is placed into a correctly prepared drilling pattern consisting of one 35mm hinge-cup hole, two 8mm fixing holes, and 45mm fixing-hole centres. Closing the INSERTA locking flap expands the fixings and secures the hinge cup without screws.

INSERTA is different from a knock-in fixing, which normally requires suitable hinge-insertion machinery or a press-in ram.

Mounting plate required

INSERTA only describes how the hinge cup attaches to the cabinet door. It is not a mounting plate.

A compatible Blum CLIP cabinet-side mounting plate is required and must be purchased separately. The correct mounting-plate height and fixing method depend on the cabinet construction and required door overlay.

Frequently asked questions

Does the 70T3590.TL include soft close?

No. It does not include BLUMOTION or any other soft-close mechanism. Choose the Blum 71B3590 if integrated soft closing is required.

Is this a self-closing hinge?

No. The hinge is unsprung and does not pull the cabinet door closed. Its free-moving action makes it suitable for TIP-ON handleless doors.

Does INSERTA mean that no drilling is required?

No. INSERTA eliminates hinge-cup fixing screws, but the cabinet door must have the complete INSERTA drilling pattern: one 35mm cup hole and two 8mm fixing holes on 45mm centres.

Does INSERTA require installation machinery?

No. The INSERTA locking flap secures the hinge cup without screwdrivers or hinge-insertion machinery.

Is the TIP-ON unit included?

No. The TIP-ON ejector and magnetic catch are separate products.

Is a mounting plate included?

No. A compatible Blum CLIP cabinet-side mounting plate must be selected and purchased separately.

What is the difference between 70T3590.TL and 70T3550.TL?

Both are unsprung 110° overlay hinges. The 70T3590.TL uses tool-free INSERTA cup fixing, while the 70T3550.TL has a screw-on hinge cup.

What is the difference between 70T3590.TL and 71T3590?

The 70T3590.TL is unsprung and designed for free movement. The 71T3590 contains a closing spring that pulls the cabinet door closed. Neither version has integrated BLUMOTION.

Can the door be removed without tools?

Yes. The CLIP mechanism allows the cabinet door to be attached to or removed from a compatible mounting plate without tools.

TECHNICAL DETAILS

Application: Overlay
Colour: Nickel
