Blum 70M2580.TL CLIP 100° Overlay TIP-ON Knock-In Hinge – Nickel

Blum 70M2580.TL CLIP 100° Overlay TIP-ON Knock-In Hinge – Nickel

Stock Code: HI70M2580TL

£1.11 GBP
Sale
View full details

PRODUCT DESCRIPTION

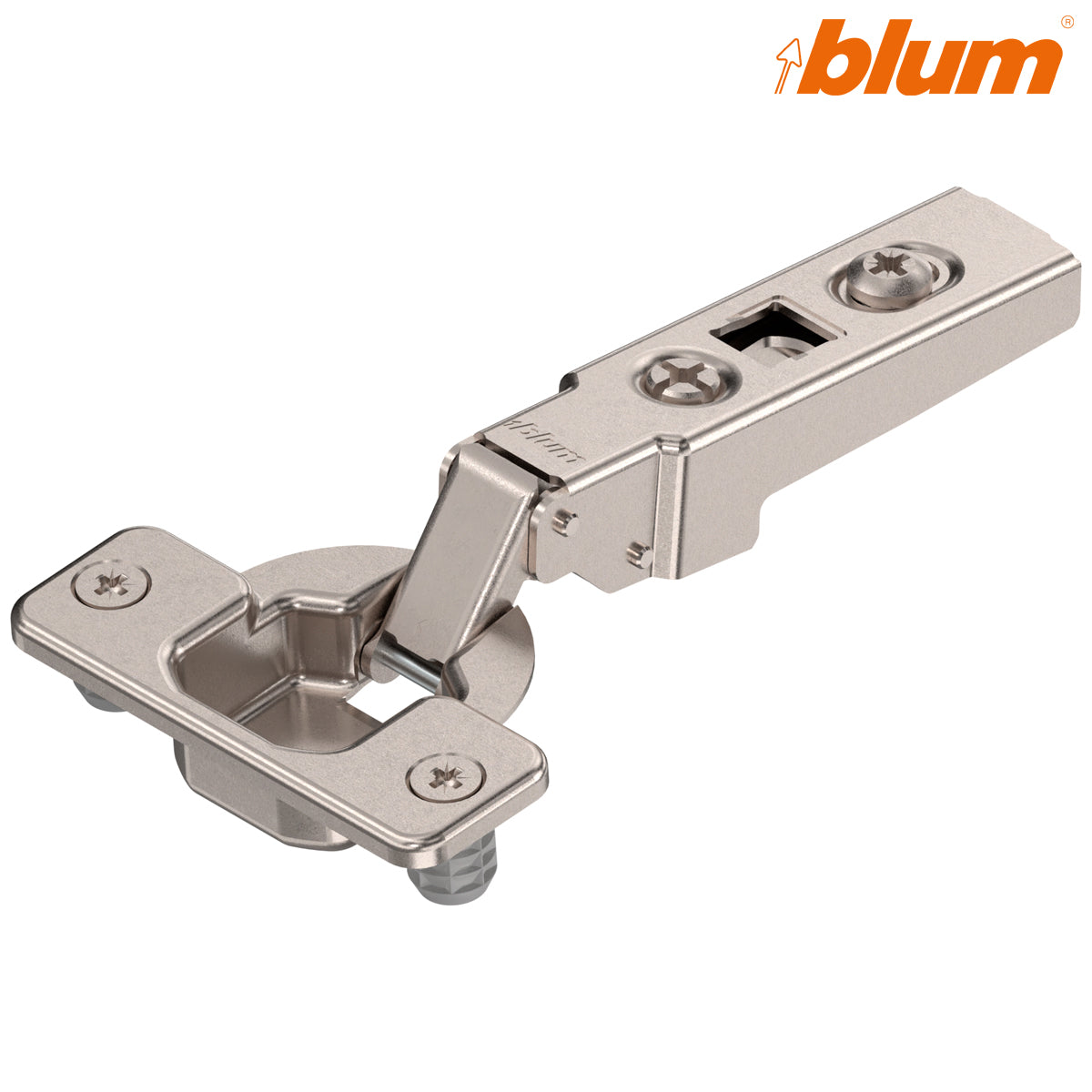

Blum 70M2580.TL CLIP 100° Overlay TIP-ON Knock-In Hinge

The Blum 70M2580.TL is an unsprung CLIP concealed hinge for full-overlay handleless cabinet doors. Its free-moving action is designed for use with a suitable Blum TIP-ON push-to-open unit.

The hinge opens to 100° and uses a shallow knock-in cup requiring a minimum drilling depth of only 10.5mm. This makes it useful where cup depth is restricted, subject to the door material and Blum’s planning requirements.

Important: this hinge has no closing spring and no soft-close damper. It is designed for TIP-ON push-to-open operation and should not be described as BLUMOTION compatible.

Full-overlay cabinet application

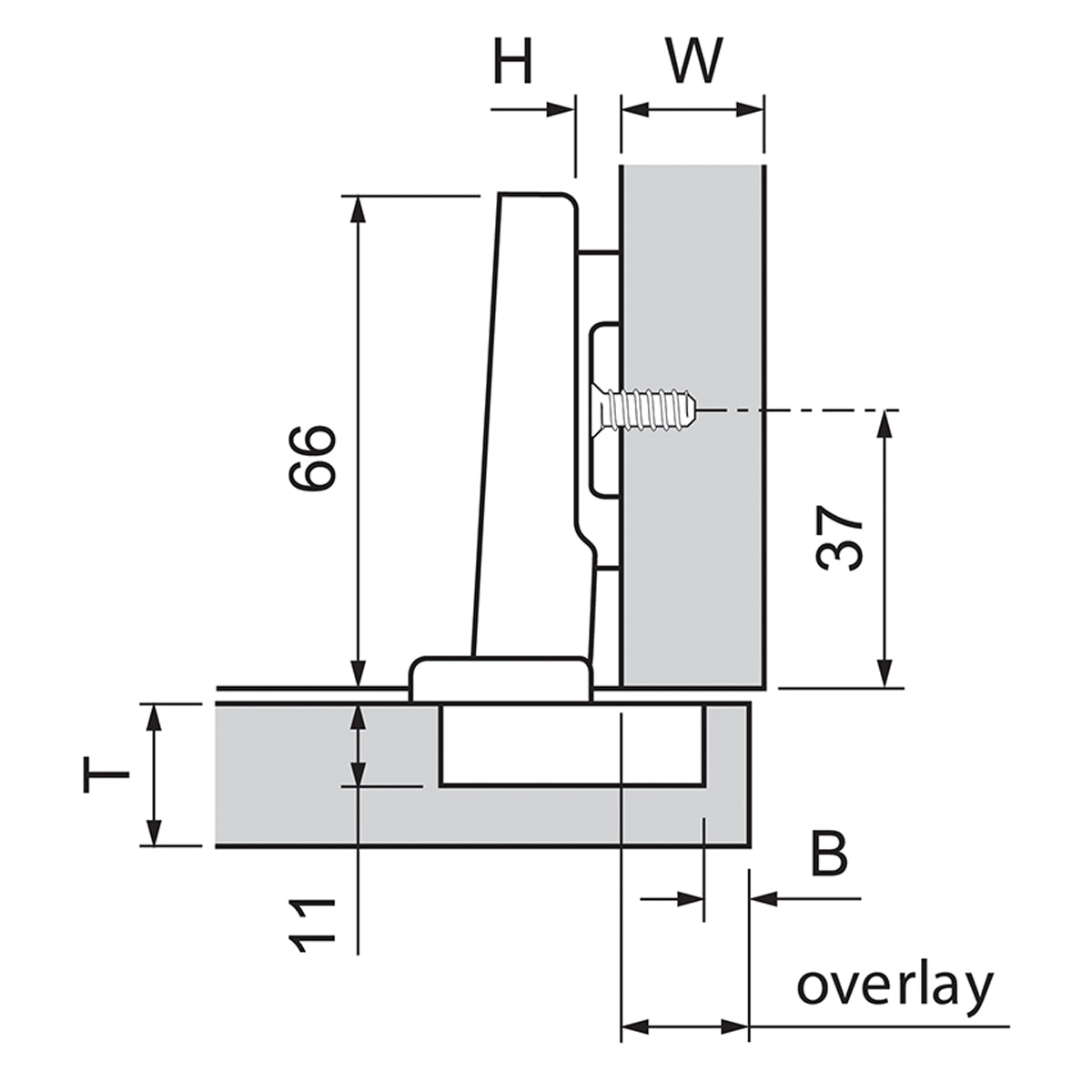

The straight hinge arm is designed for full-overlay cabinet doors, where the closed front covers most of the cabinet side panel. The final overlay depends on the mounting-plate height, cup-drilling distance and cabinet construction.

The hinge provides a 100° opening angle, making it suitable for standard kitchen, bedroom and fitted-furniture cabinets where a controlled opening angle is preferred.

Designed for handleless TIP-ON doors

The .TL version has free hinge movement without a closing spring. Pressing the door activates a compatible TIP-ON unit, which releases and pushes the front open far enough to be grasped.

The TIP-ON unit, catch or magnet and any required adapter must be selected for the cabinet construction and ordered separately.

Knock-in cup installation

The hinge has pre-mounted dowels that are mechanically pressed into accurately prepared fixing holes. Installation requires a 35mm cup bore together with two 8mm dowel holes positioned on 45mm centres.

Knock-in installation is not tool-free. The hinge should be fitted using suitable Blum insertion equipment or a controlled workshop press to avoid damaging the hinge cup or cabinet door.

This fixing method should not be confused with INSERTA, which uses an integrated locking mechanism for tool-free cup installation.

CLIP fitting and adjustment

Once the cup is installed, the hinge arm clips onto a compatible Blum mounting plate without tools. The door can therefore be attached or removed without undoing the mounting-plate screws.

Three-dimensional adjustment allows the door position and cabinet gaps to be aligned after installation.

Key features

  • Genuine Blum CLIP concealed cabinet hinge
  • Blum part number 70M2580.TL
  • Full-overlay cabinet-door application
  • 100° opening angle
  • Unsprung with free movement
  • Designed for handleless TIP-ON doors
  • No integrated soft-close
  • Knock-in cup with pre-mounted dowels
  • 35mm hinge-cup drilling
  • Minimum cup drilling depth of 10.5mm
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Nickel-plated steel construction
  • Supplied individually
  • Mounting plate and TIP-ON unit sold separately

Technical specifications

Manufacturer Blum
Blum part number 70M2580.TL
Hart stock code HI70M2580TL
Blum identification code 07656503
GTIN / EAN 9002617694604
Hinge system Blum CLIP
Application Full overlay
Opening angle 100°
Closing mechanism Unsprung / free movement
Recommended opening system Blum TIP-ON for doors
Integrated soft-close No
Cup fixing Knock-in dowels
Cup drilling diameter 35mm
Minimum cup drilling depth 10.5mm
Dowel-hole diameter 8mm
Fixing-hole centres 45mm
Fixing-hole offset 9.5mm from the cup centreline
Cup drilling distance 3–6mm
Front-thickness planning 16–32mm; trial fitting required for marked combinations
Hinge-arm projection 20mm
Factory gap reference 1.2mm
Side adjustment ±2mm
Depth adjustment +3mm / −1mm
Height adjustment Up to ±3mm, depending on mounting plate
Material Steel
Finish Nickel plated
Quantity supplied One hinge
Mounting plate included No
TIP-ON unit included No

Compatible parts and alternative closing action

Select a suitable push-to-open mechanism from the Blum TIP-ON for doors collection.

A compatible Blum CLIP mounting plate is also required and must be ordered separately.

For a sprung, conventionally self-closing version with the same 100° overlay application and knock-in cup, choose the Blum 71M2580 hinge.

If controlled soft closing is required, use the sprung 71M2580 hinge with the appropriate Blum 973A BLUMOTION device.

Frequently asked questions

Is the Blum 70M2580.TL self-closing?

No. It is an unsprung hinge with free movement for a handleless TIP-ON door.

Does it have soft-close?

No. The 70M2580.TL has neither a closing spring nor a BLUMOTION soft-close damper.

What does the TL suffix mean?

It identifies the free-moving hinge version intended for doors using Blum TIP-ON push-to-open hardware.

Is the knock-in cup tool-free?

No. The pre-mounted dowels must be mechanically pressed into two accurately drilled 8mm holes using suitable insertion equipment.

What drilling is required?

The hinge requires a 35mm cup bore with a minimum depth of 10.5mm, together with two 8mm dowel holes on 45mm centres.

What is the difference between knock-in and INSERTA?

Knock-in dowels are mechanically pressed into the door. INSERTA uses an integrated locking mechanism for tool-free cup installation.

Is a TIP-ON unit included?

No. The appropriate TIP-ON unit and any required adapter or catch must be ordered separately.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Is the hinge sold individually?

Yes. Each quantity ordered supplies one Blum 70M2580.TL hinge.
