Blum CLIP 100° Overlay Sprung Knock-In Hinge HI71M258

Blum CLIP 100° Overlay Sprung Knock-In Hinge HI71M258

Stock Code: HI71M258

£1.05 GBP
Sale
View full details

PRODUCT DESCRIPTION

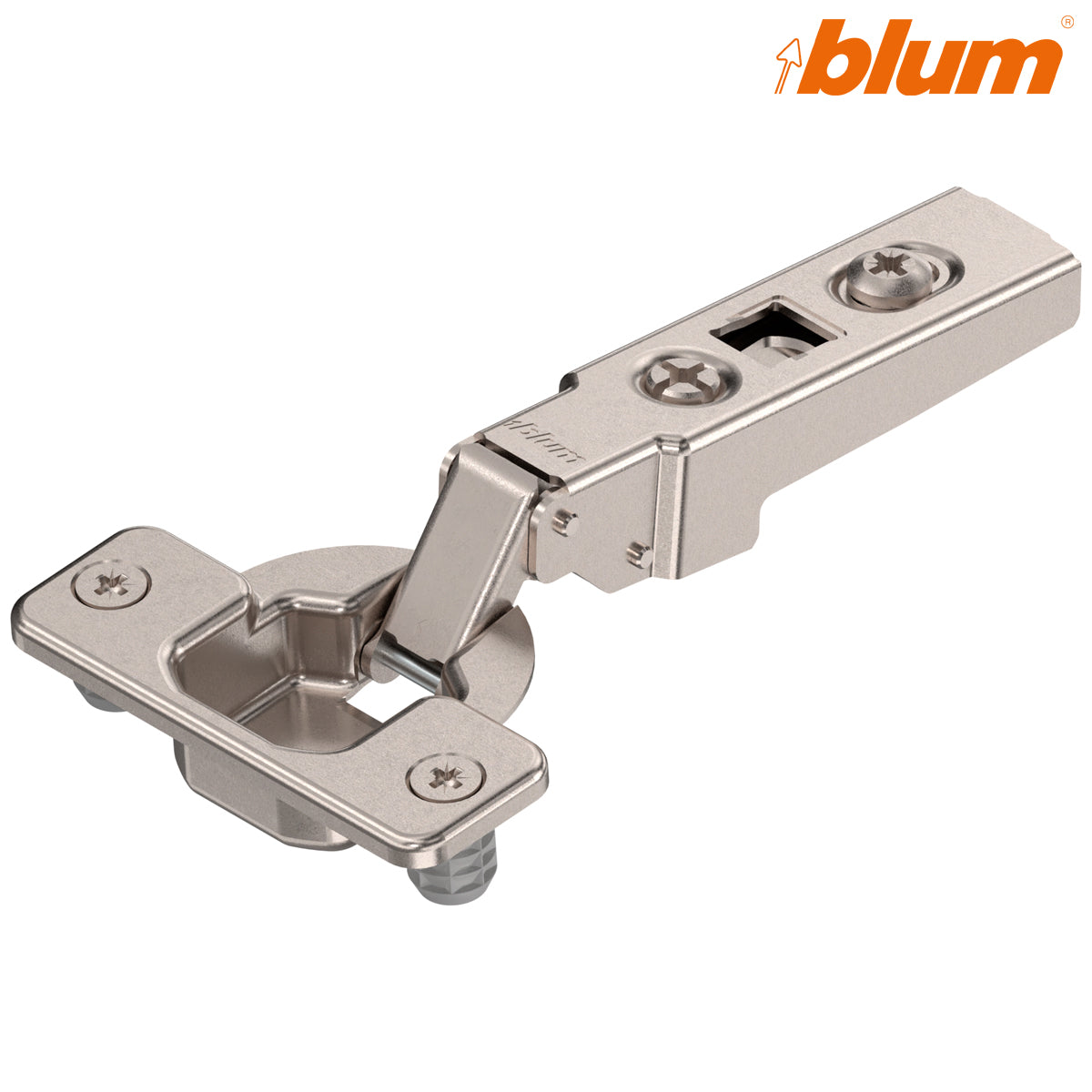

Blum CLIP 100° Overlay Knock-In Hinge HI71M258

This nickel-plated steel Blum CLIP hinge opens to 100° for an overlay cabinet door. Its built-in spring provides a self-closing action, not integrated BLUMOTION soft close. The 35 mm cup has press-in fixing dowels for a correctly prepared three-hole door boring; use suitable insertion equipment rather than striking the hinge directly. The hinge arm clips to a separately chosen compatible Blum cabinet mounting plate for tool-free door removal.

Key features and fitting

  • Hart Wholesale SKU HI71M258; 100° overlay, sprung knock-in hinge.
  • 35 mm cup and 8 mm fixing holes on 45 mm centres with 9.5 mm offset; stated cup drilling depth 10.5 mm.
  • Stated door drilling distance 3–6 mm; check current Blum planning data and trial-fit before production boring.
  • Nickel-plated steel, one hinge supplied; cabinet mounting plate separate.
  • Side adjustment ±2 mm and depth adjustment +3/−1 mm; height depends on plate choice.

The closed overlay door covers the cabinet side. Knock-in describes the press-in cup-to-door fixing, not the CLIP connection to the cabinet plate, and is different from screw-on or INSERTA fixing. Choose mounting-plate height and fixing method for the required door position from Blum CLIP mounting plates. Compare the HI71M255 screw-on overlay hinge if a different cup fixing is required; do not assume identical drilling. Browse Blum CLIP hinges for other door applications.

Technical details

Application 100° overlay; sprung closing
Cup fixing Knock-in / press-in dowels; not INSERTA
Boring 35 mm cup, 8 mm dowel holes on 45 mm centres, 9.5 mm offset, 10.5 mm stated cup depth
Drilling distance 3–6 mm, subject to application planning
Flange 57 mm wide, 20 mm long, 3.2 mm high
Adjustment Side ±2 mm; depth +3/−1 mm
Material and finish Nickel-plated steel
Quantity One hinge; mounting plate separate

Frequently Asked Questions

Does this hinge include soft close?

No integrated soft-close mechanism is identified. Its spring helps close the door, but spring action is not BLUMOTION.

What does knock-in mean?

The hinge cup’s dowels press into correctly bored fixing holes with suitable insertion equipment. It is not a tool-free INSERTA cup.

Does this include a cabinet mounting plate?

No. Choose a compatible Blum CLIP plate separately.

Is this a pair?

No. One hinge is supplied.

Blum product configurator for hinge planning

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
