HOMEPAGE > BLUM AVENTOS HK TOP 22K2900 LIFT MECHANISM 3200–9000

  • Blum AVENTOS HK top 22K2900 zinc lift mechanism set for power factor 3200–9000
1 1

Blum AVENTOS HK top 22K2900 Lift Mechanism 3200–9000

Blum AVENTOS HK top 22K2900 Lift Mechanism 3200–9000

Stock Code: HI22K2900

£55.03 GBP
Sale
View full details

PRODUCT DESCRIPTION

The Blum AVENTOS HK top 22K2900 lift mechanism set provides controlled upward opening for single-piece cabinet fronts. Covering the higher 3200–9000 power-factor range, it is designed for compatible wall cabinets and overhead storage requiring dependable support and smooth operation.

Integrated BLUMOTION provides soft, quiet and controlled closing. When the correct mechanism is selected and properly adjusted, the cabinet front opens with minimal effort and can remain securely in the chosen position for convenient access.

Upward-opening cabinet access

AVENTOS HK top raises the complete cabinet front upwards and keeps it clear of the working area. The compact system does not require conventional cabinet hinges, making it suitable for kitchens, utility rooms and fitted furniture where efficient use of space is important.

The integrated opening-angle limiter can be continuously adjusted between 75° and 107°. This helps control the front’s travel when a cabinet is fitted beneath a ceiling, cornice or another potential obstruction.

Selecting the correct power factor

The Blum 22K2900 covers a power-factor range of 3200–9000. Calculate the power factor by multiplying the cabinet height in millimetres by the complete cabinet-front weight in kilograms, including the handle. Accurate calculation is essential when selecting the correct AVENTOS lift mechanism.

The maximum front weight is 18kg when two lift mechanisms are used, but this does not replace the power-factor calculation. Confirm the cabinet dimensions, front construction and total weight before ordering. Consult the latest Blum planning information for borderline, overlapping or unusually wide applications.

Key features

  • Genuine Blum AVENTOS HK top mechanism set
  • Blum article number 22K2900
  • Stock code HI22K2900
  • Power-factor range of 3200–9000
  • Integrated BLUMOTION soft-close action
  • For single-piece upward-opening cabinet fronts
  • Continuously adjustable opening angle from 75° to 107°
  • Suitable for cabinet heights from 205–600mm
  • Suitable for cabinet widths up to 1800mm
  • Two symmetrical zinc lift mechanisms
  • Balanced movement with variable stopping positions
  • No conventional cabinet hinges required

Product details

  • Manufacturer: Blum
  • Range: AVENTOS HK top
  • Blum article number: 22K2900
  • Stock code: HI22K2900
  • Mechanism type: Stay lift
  • Power factor: 3200–9000
  • Closing action: Integrated BLUMOTION
  • Opening angle: 75°–107°, continuously adjustable
  • Cabinet height: 205–600mm
  • Maximum cabinet width: 1800mm
  • Maximum front weight: 18kg with two mechanisms, subject to power-factor selection
  • Finish: Zinc

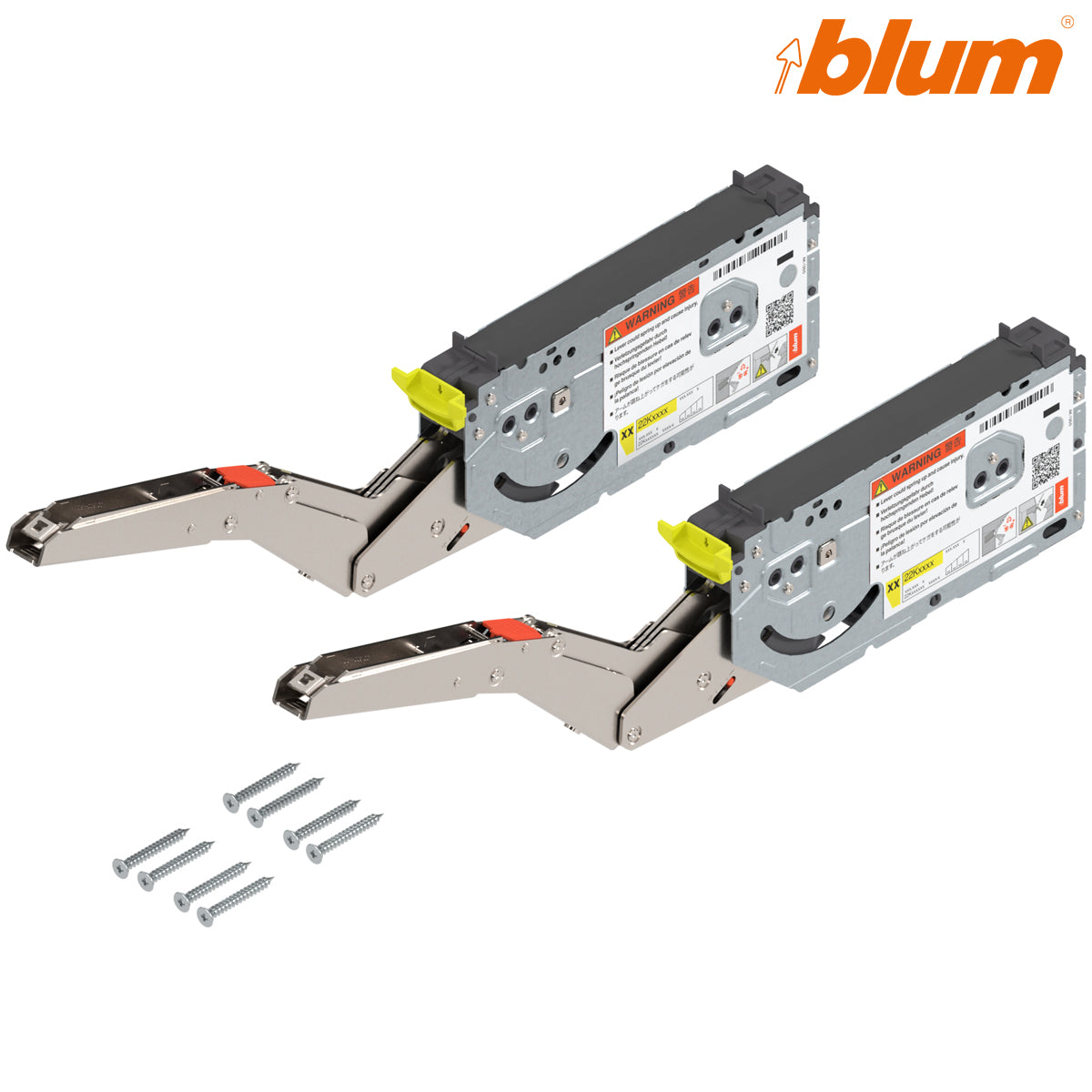

Set contents

  • Two symmetrical Blum AVENTOS HK top lift mechanisms
  • Eight 4 × 35mm wood screws

Cover caps, front-fixing brackets and other application-specific components must be selected separately unless expressly listed as included on this product page.

To complete your installation, browse the full Blum AVENTOS HK top range, find compatible AVENTOS HK top cover caps, or view the adjacent 22K2700 mechanism for power factor 1730–5200.

Frequently asked questions

What is the Blum 22K2900 used for?

It is an AVENTOS HK top stay-lift mechanism set for compatible single-piece cabinet fronts that open upwards.

What does 3200–9000 mean?

It is the mechanism’s power-factor range, not a weight measurement. Power factor is calculated from the cabinet height and complete front weight.

Does the mechanism provide soft closing?

Yes. Integrated Blum BLUMOTION provides smooth, quiet and controlled closing.

How many lift mechanisms are supplied?

The Blum 22K2900 set contains two symmetrical lift mechanisms.

Are conventional cabinet hinges required?

No. AVENTOS HK top does not require conventional hinges, but the correct front-fixing brackets and installation components are required.

Can the opening angle be adjusted?

Yes. The standard 22K2900 mechanism has a continuously adjustable opening range from 75° to 107°.

Are cover caps and front fixings included?

No. Appropriate cover caps and front-fixing brackets are separate unless the product page expressly states otherwise.

Is this the TIP-ON version?

No. This is the standard 22K2900 mechanism with integrated BLUMOTION. The TIP-ON model uses a different article number.

TECHNICAL DETAILS

  • Colour: Zinc
