PRODUCT DESCRIPTION

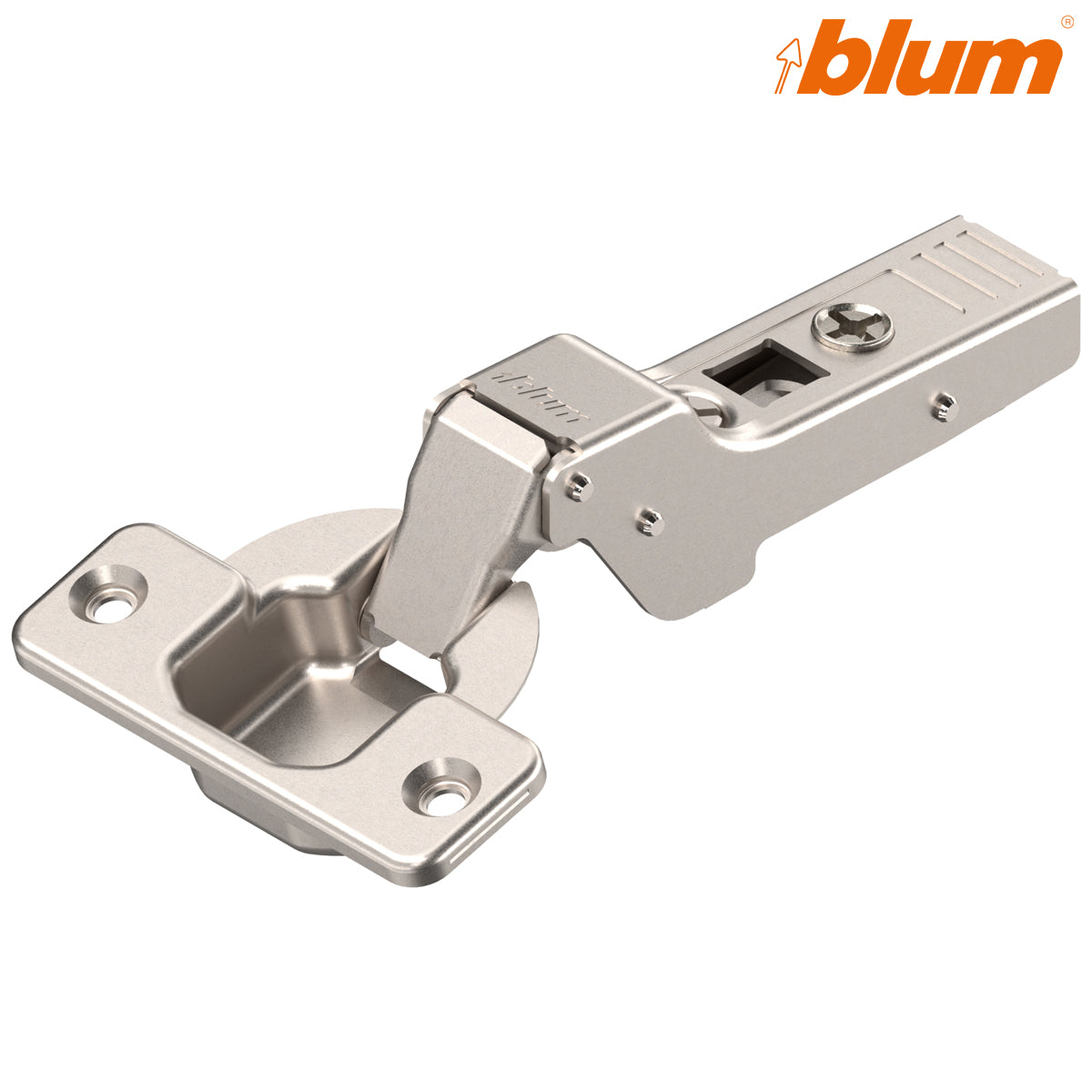

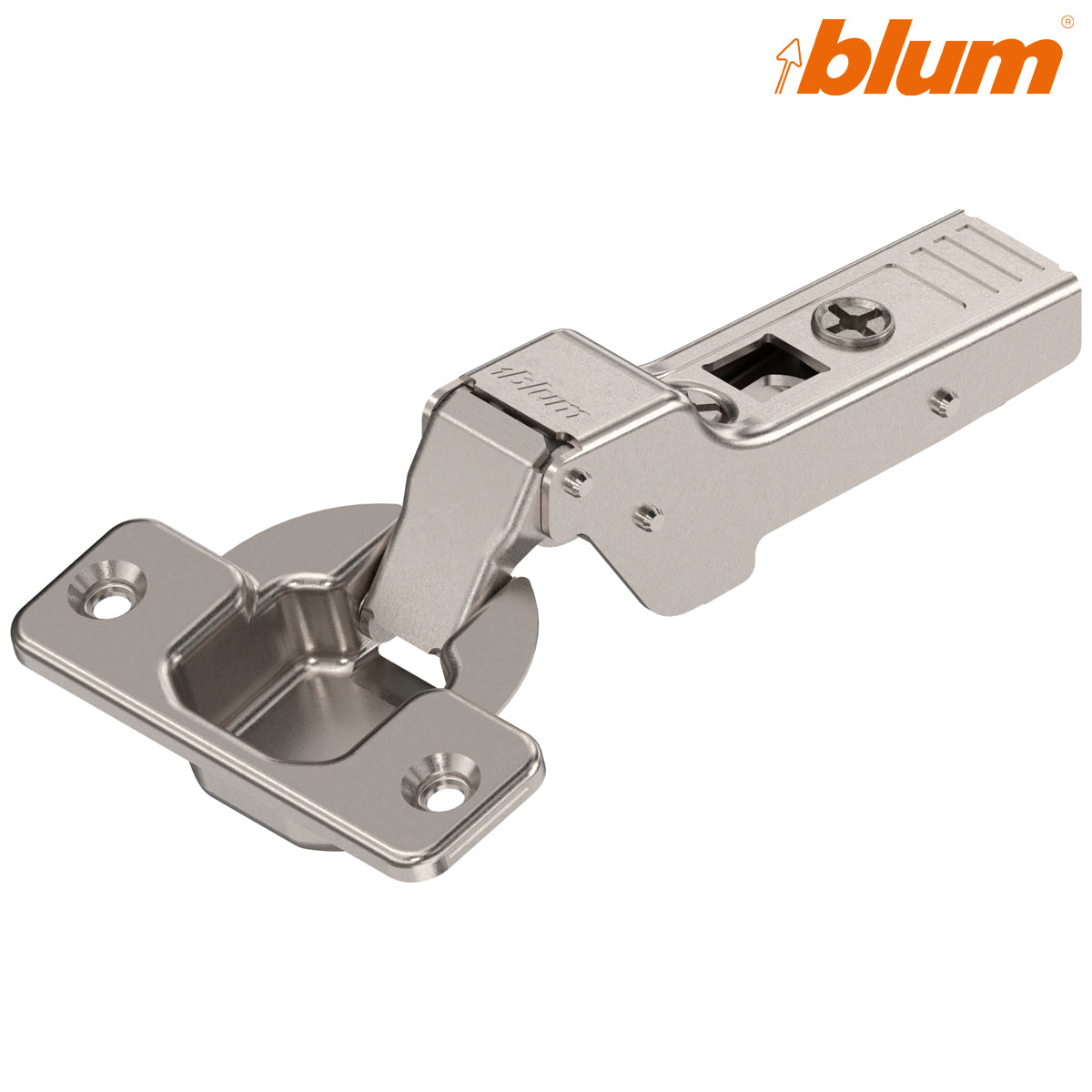

Blum Clip Top Thin Door Hinge 107° — Dual (Half-Overlay), Sprung, Screw-On, Nickel
A Blum Clip Top hinge with a 107° opening angle for dual (half-overlay) cabinet doors, where two doors share a central cabinet partition. Requires only an 11.5mm deep hinge cup hole — ideal where door thickness is limited. Sprung with integrated soft-close mechanism. Screw-on back plate fixing. Suitable for front thicknesses 15–24mm.
- SKU: HI75T165
- Blum part number: 75T1650
- Opening angle: 107°
- Application: Dual (half-overlay)
- Soft-close: Sprung (integrated)
- Fixing: Screw-on back plate
- Hinge cup depth: 11.5mm only
- Suitable for front thicknesses 15–24mm
- 3-dimensional front adjustment
- Depth adjustment with spiral screw
- Tool-free door-to-cabinet assembly and removal
- Finish: Nickel
- Blum Lifetime Guarantee
- Supplied as 1 piece

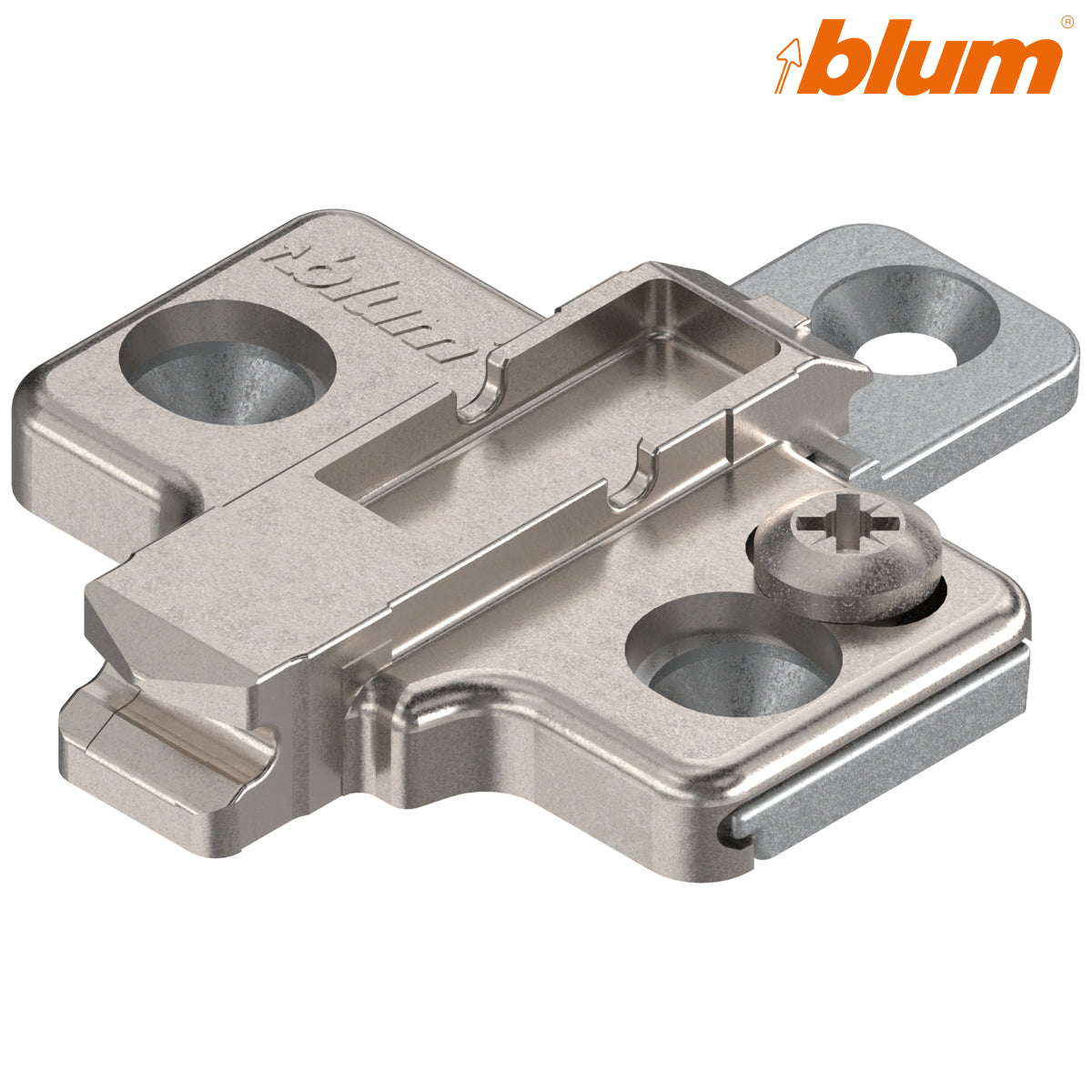

Supplied as a single hinge. Back plates sold separately.
