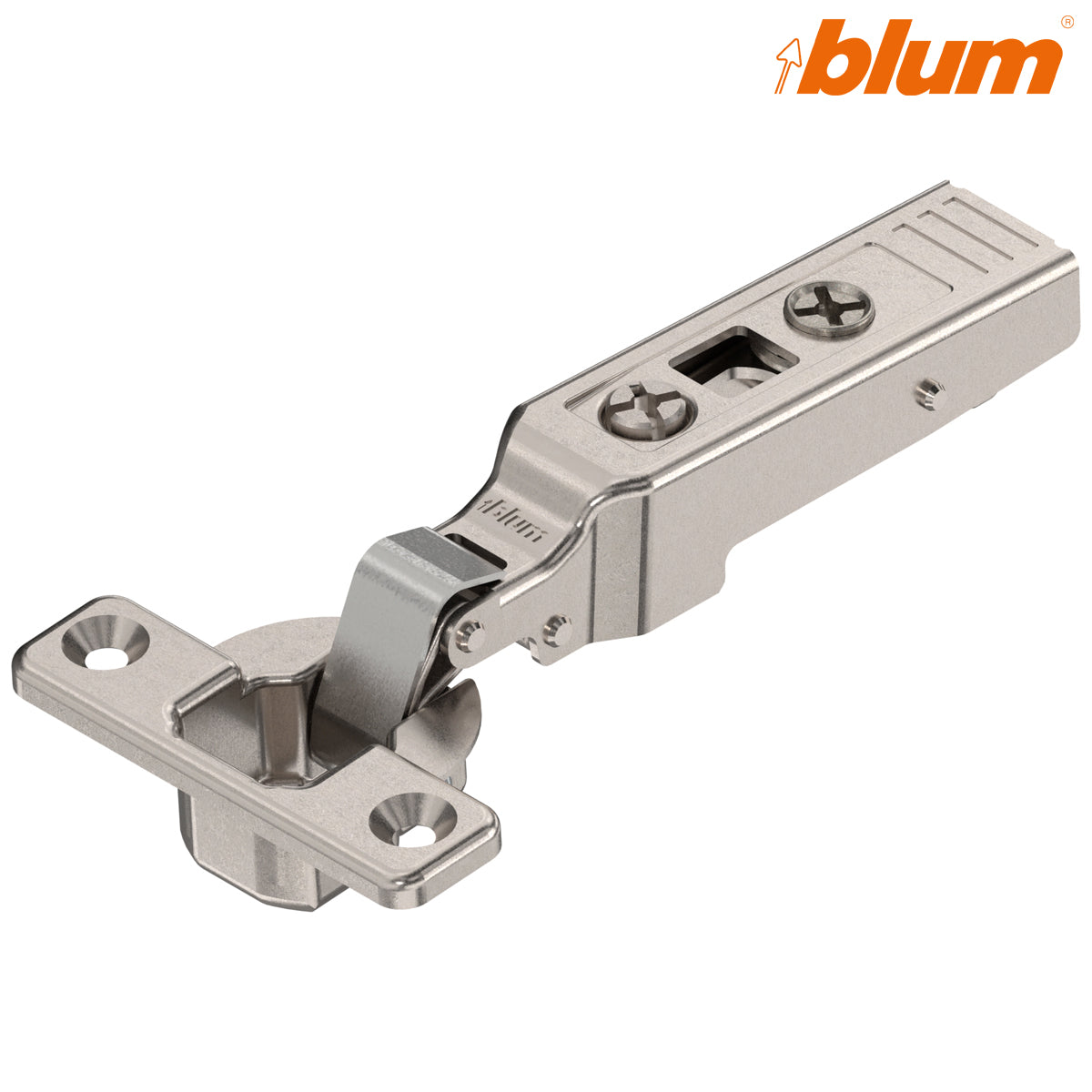

Blum 71T0550 CLIP top Mini 94° Overlay Screw-On Hinge, 26 mm Cup

Blum 71T0550 CLIP top Mini 94° Overlay Screw-On Hinge, 26 mm Cup

Stock Code: HI71T0550

£2.80 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71T0550 CLIP top Mini 94° Overlay Screw-On Hinge

The sprung Blum 71T0550 mini concealed hinge positions a small cabinet door over the front edge of the cabinet side. Its compact 26 mm screw-on cup can suit narrow timber frames where a conventional 35 mm cup will not fit, provided the door has sufficient sound material around the boring. A straight arm clips onto a separately purchased compatible mounting plate, so a fitted door can be removed and rehung without unscrewing the cup.

For small doors and narrow frames

Suitable uses include compact furniture, display cabinets and replacement doors prepared for a 26 mm cup. Check door dimensions, timber strength and the actual Blum planning information before drilling. The published front-thickness range in the existing listing is 16–32 mm, with a trial application advised from 23 mm; suitability is not guaranteed by thickness alone.

Sprung closing, not integrated soft close

The hinge spring draws the door towards closed. It does not contain BLUMOTION. Compatible external BLUMOTION damping, including a suitable 971A adapter configuration, may be selected separately after checking plate and installation compatibility.

Screw-on cup and CLIP fitting

Fix the 26 mm cup to the prepared door with appropriate screws through the cup flange. The tool-free CLIP connection applies between hinge arm and cabinet mounting plate, not to the cup fixing. A third locating pin on the arm assists a stable plate connection. The compatible Blum CLIP mounting plate is not included.

Key features

  • 94° opening, straight arm for overlay doors
  • 26 mm screw-on cup; 3–5 mm cup drilling distance
  • Sprung self-closing action, without integrated BLUMOTION
  • Tool-free CLIP connection to a compatible cabinet plate
  • Spiral-screw depth adjustment and three-dimensional door adjustment with a suitable plate
  • Nickel-plated finish; one hinge supplied

Technical specifications

Blum part / Hart Wholesale SKU 71T0550 / HI71T0550
EAN 9002617622157
System / application CLIP top mini; overlay, straight arm
Opening / closing 94°; sprung, no integrated BLUMOTION
Cup / door fixing 26 mm; screw-on; 3–5 mm drilling distance
Published front thickness 16–32 mm; trial application recommended from 23 mm
Adjustment Side +0.5/−3.5 mm; depth +3/−1 mm; height up to ±3 mm depending on plate
Finish / quantity Nickel plated; one hinge
Mounting plate Required and sold separately

Compare 94° mini hinges

For a shared central partition, see the 71T0650 dual or half-overlay mini hinge. For a door that closes within the opening, see the 71T0750 inset mini hinge. Browse the Blum concealed hinge collection for other cup sizes and opening angles.

Frequently Asked Questions

Does the 71T0550 have integrated soft close?

No. Its spring closes the door, while optional compatible damping is separate.

Why use a 26 mm cup?

The smaller boring can fit doors or narrow frames that cannot accommodate a 35 mm cup, subject to sufficient material and the fitting plan.

Will it fit a 35 mm hinge boring?

No. It requires a correctly positioned 26 mm cup boring.

What does overlay mean?

The closed door covers the front edge of the cabinet side.

Is a mounting plate included?

No. Select a compatible Blum CLIP plate separately.

Which part is tool-free?

The CLIP connection between arm and plate; the cup fixes to the door with screws.

How do 71T0550, 71T0650 and 71T0750 differ?

71T0550 is overlay, 71T0650 is dual or half-overlay, and 71T0750 is inset. Check each product’s drilling and mounting details before substitution.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
