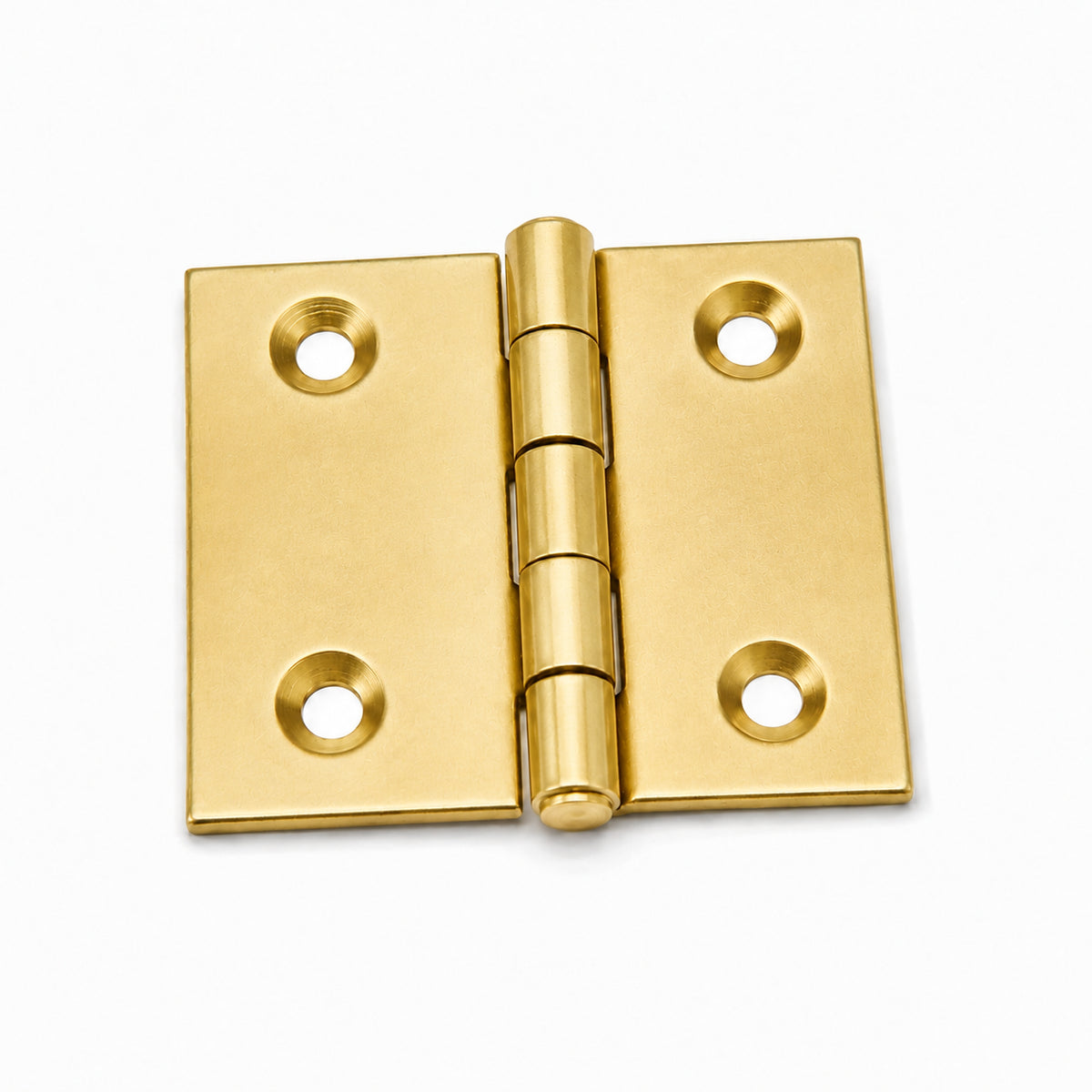

38 x 35mm Electro Brass Steel Butt Hinges

These compact 38 x 35mm light-duty steel butt hinges are suitable for small cupboards, cabinet doors, furniture, boxes and other lightweight internal joinery. Their traditional rigid construction incorporates a fixed pin and countersunk fixing holes for a neat installation.

The electro brass plated finish gives the steel a warm, bright brass appearance without the cost of a solid-brass hinge. It provides an attractive decorative finish for dry internal applications where the hinges will remain visible.

Important ordering information: this product is priced per individual hinge but is sold only in packs of 10 pairs. The minimum order is therefore 20 individual hinges, equal to 10 complete pairs. Enter quantities in multiples of 20: 20, 40, 60 and so on.

Key Features

• Compact light-duty steel butt hinge
• Size: 38 x 35mm
• Approximate length: 1½ inches
• Warm electro brass plated finish
• Steel construction with a decorative plated surface
• Fixed, non-removable pin
• Two countersunk fixing holes on each leaf
• Four countersunk fixing holes in total
• Suitable for cupboards, cabinets, boxes, furniture and lightweight internal joinery
• Priced per individual hinge
• Sold only in packs of 10 pairs / 20 hinges

Product Specifications

Typical Applications

• Small cupboard doors
• Cabinet and furniture doors
• Wooden boxes and cases
• Display units and decorative projects
• Craft and model-making projects
• Lightweight internal joinery

Installation Advice

Position each hinge leaf against the timber and mark the fixing holes accurately. Select appropriately sized screws for the timber thickness and application. Check that the hinge knuckles are aligned before tightening the fixings.

Avoid abrasive cleaners because they may damage the decorative electro brass surface. These compact hinges are intended for lightweight applications and must not be represented as suitable for heavy doors, entrance doors or certified fire doors.

Questions & Answers

How many hinges are in the minimum order?

The minimum order contains 20 individual hinges, equal to 10 complete pairs.

Is the displayed price for one hinge or one pair?

The displayed price is for one individual hinge. The hinges are sold only in packs of 20 individual hinges, equal to 10 pairs.

What applications are these 38mm hinges suitable for?

They are intended for small cupboards, cabinet doors, furniture, boxes and other lightweight internal joinery.

What is an electro brass finish?

Electro brass is a thin decorative brass-coloured coating applied to the steel. It provides a warm brass appearance while retaining a steel base.

Are these solid brass hinges?

No. They are steel hinges with an electro brass plated decorative finish.

How many fixing holes does each hinge have?

Each hinge has four countersunk fixing holes in total, with two holes positioned on each leaf.

Can the hinge pin be removed?

No. This product has a fixed pin that is not designed for removal during normal use.

Can these hinges be used outside?

They are primarily intended for dry internal applications. Select a hinge specifically rated for exterior or consistently damp locations where required.

Are fixing screws included?

Fixings are not stated as included. Select screws suitable for the timber thickness and intended application.

Are these suitable for fire doors?

No. These compact hinges have no declared fire-door certification and are not suitable for certified fire-door applications.

Compare the matching 38 x 35mm self-colour steel butt hinges and 38 x 35mm bright zinc plated steel butt hinges. Browse the complete butt hinge range or contact Hart Wholesale for selection advice.
