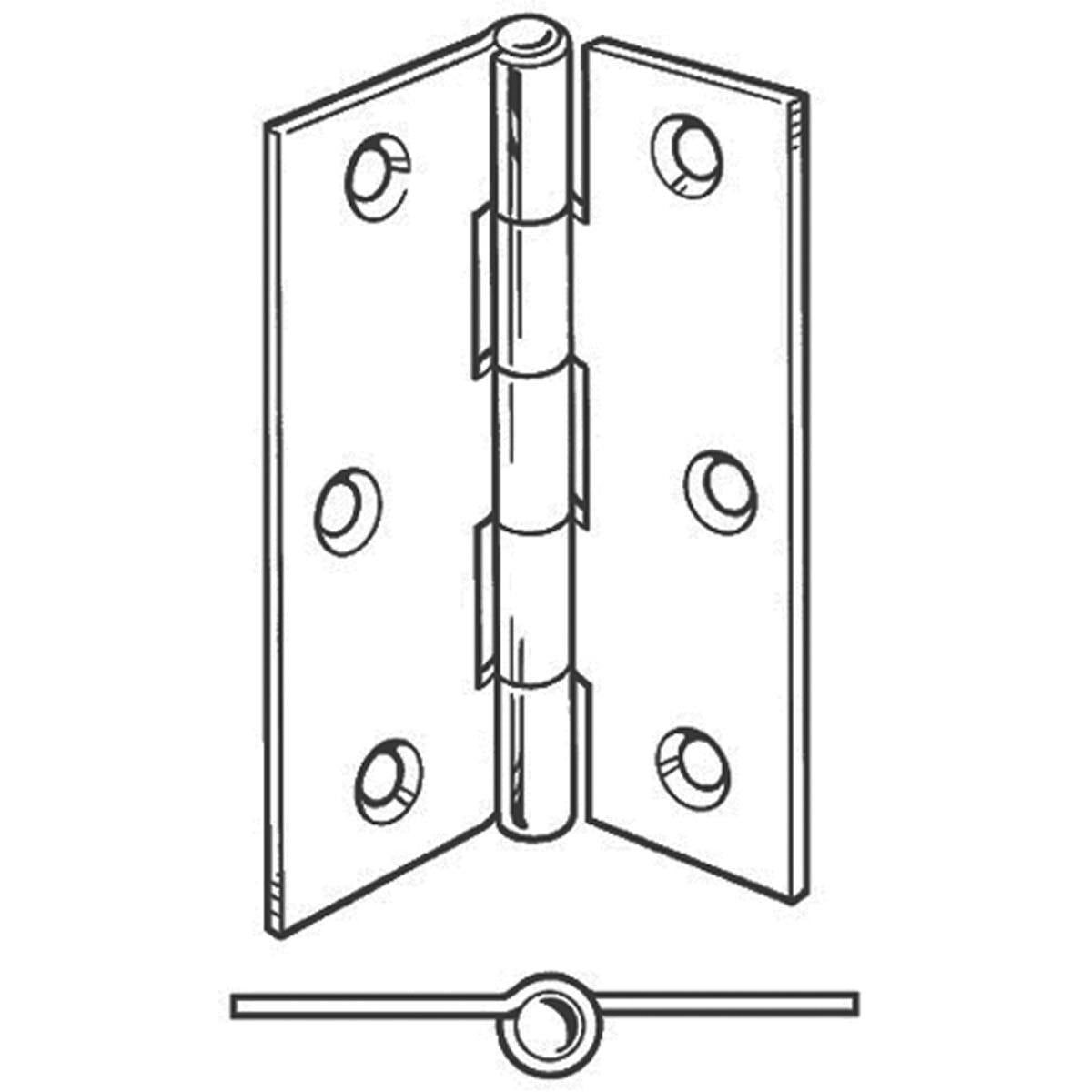

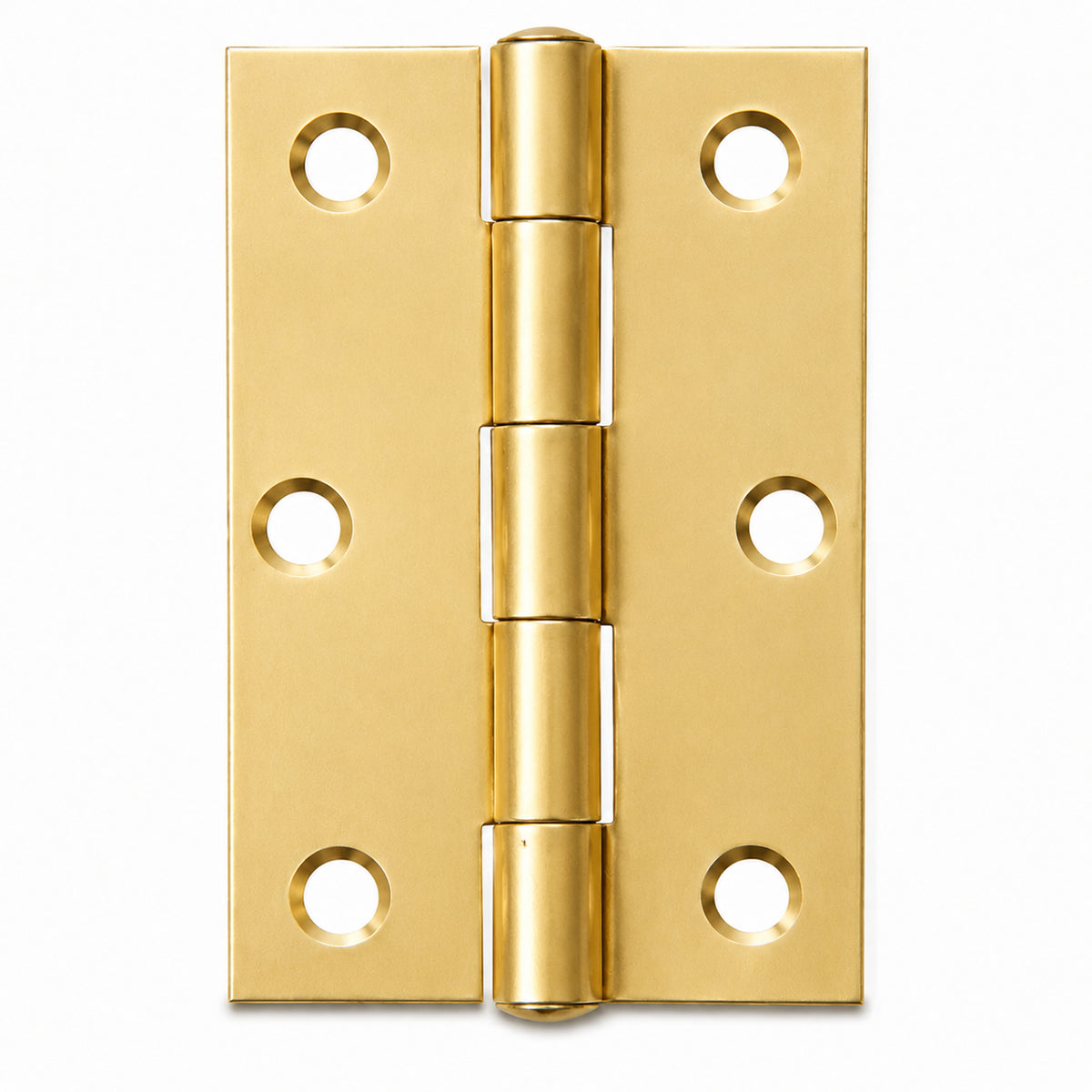

75 x 48mm Electro Brass Steel Butt Hinges

These 75 x 48mm medium-duty steel butt hinges are suitable for cupboards, furniture, general joinery and appropriately sized internal timber doors. Their traditional rigid construction incorporates a fixed pin and six countersunk fixing holes for a neat and secure installation.

The electro brass plated finish gives the steel a warm, bright brass appearance without the cost of a solid-brass hinge. It provides an attractive decorative finish for dry internal applications where the hinges will remain visible.

Important ordering information: the displayed price is for one pair, but these hinges are supplied only in packs of 10 pairs. Enter quantities in multiples of 10: 10, 20, 30 and so on. A quantity of 10 supplies 10 pairs, equal to 20 individual hinges.

Key Features

• Traditional medium-duty steel butt hinge
• Size: 75 x 48mm
• Approximate length: 3 inches
• Warm electro brass plated finish
• Steel construction with a decorative plated surface
• Fixed, non-removable pin
• Four countersunk fixing holes on each leaf
• Eight countersunk fixing holes in total
• Suitable for cupboards, furniture, joinery and internal timber doors
• Priced per pair
• Sold only in packs and order multiples of 10 pairs

Product Specifications

Typical Applications

• Storage and utility cupboards
• Cabinet and furniture doors
• Internal timber doors of a suitable size and weight
• Display units and decorative joinery
• General internal woodworking projects

Installation Advice

Position each hinge leaf flush against the door and frame, carefully mark the fixing holes and use screws suitable for the timber and application. Align the hinge knuckles before fully tightening the screws. Select the number and size of hinges according to the door’s dimensions, construction and weight.

Avoid abrasive cleaners because they may damage the decorative electro brass surface. These hinges must not be represented as suitable for heavy entrance doors or certified fire doors unless separate verified test information is available.

Questions & Answers

How many hinges are supplied?

This product is supplied only in packs of 10 pairs. Ten pairs contain 20 individual hinges.

Is this hinge sold individually?

No. The displayed price is per pair, but the minimum order is 10 pairs. Enter quantities in multiples of 10.

What is an electro brass finish?

Electro brass is a thin decorative brass-coloured coating applied to the steel. It provides a warm brass appearance while retaining a steel base.

Are these solid brass hinges?

No. They are steel hinges with an electro brass plated decorative finish.

Are these suitable for internal timber doors?

They can be used on appropriately sized internal timber doors, cupboards and furniture. The door dimensions, construction and weight must be considered when selecting the number of hinges.

How many fixing holes does each hinge have?

Each hinge has eight countersunk fixing holes in total, with four holes positioned on each leaf.

Can the hinge pin be removed?

No. This product has a fixed pin that is not designed for removal during normal use.

Can these hinges be used outside?

They are primarily intended for dry internal applications. Select an exterior-rated hinge for exposed or consistently damp locations.

Are fixing screws included?

Fixings are not stated as included. Choose screws suitable for the timber thickness and intended application.

Are these suitable for fire doors?

No fire-door certification is declared for this product. Do not use them where certified fire-door hinges are required.

Compare the matching 75 x 48mm self-colour steel butt hinges and 75 x 48mm bright zinc plated steel butt hinges. Browse the complete butt hinge range or contact Hart Wholesale for selection advice.
