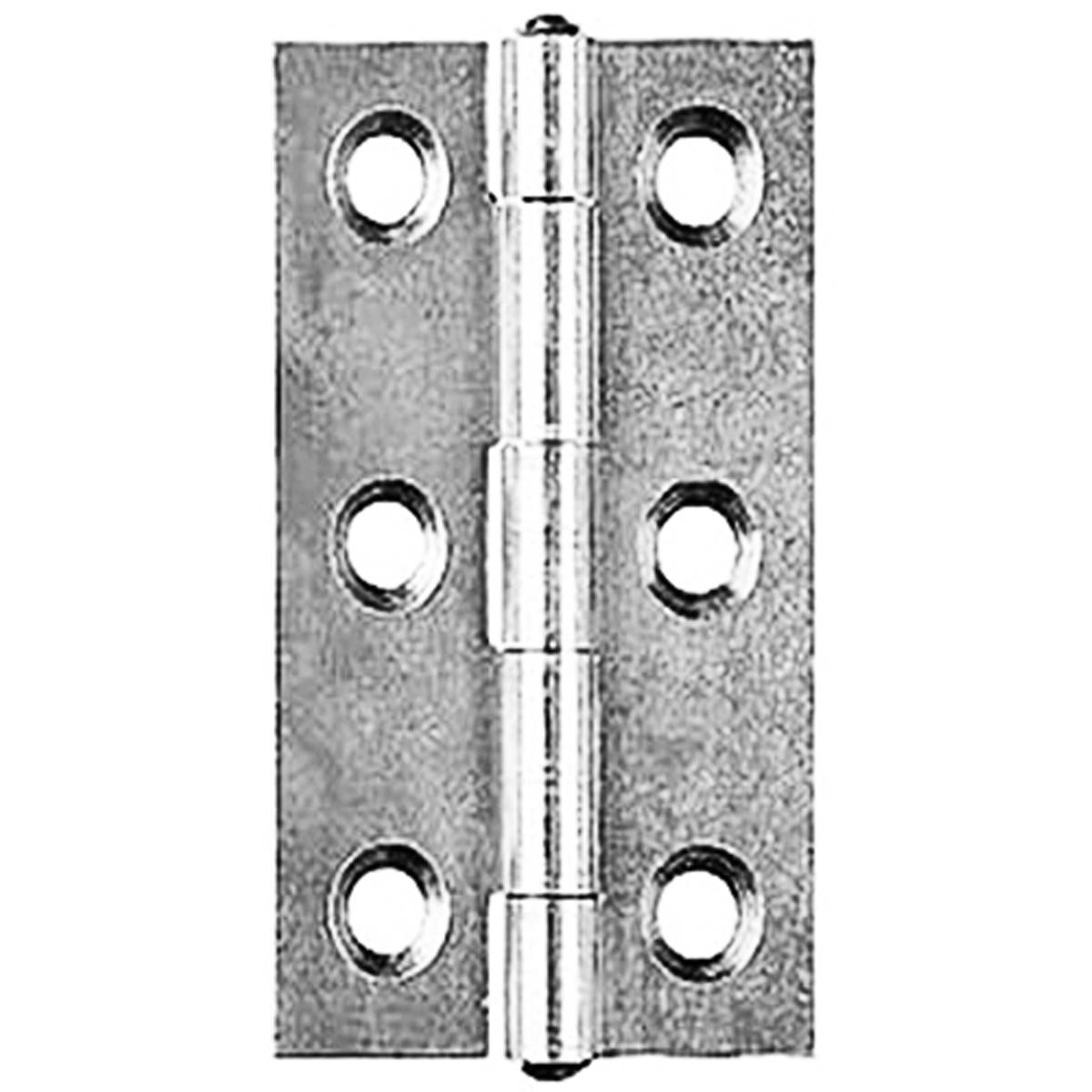

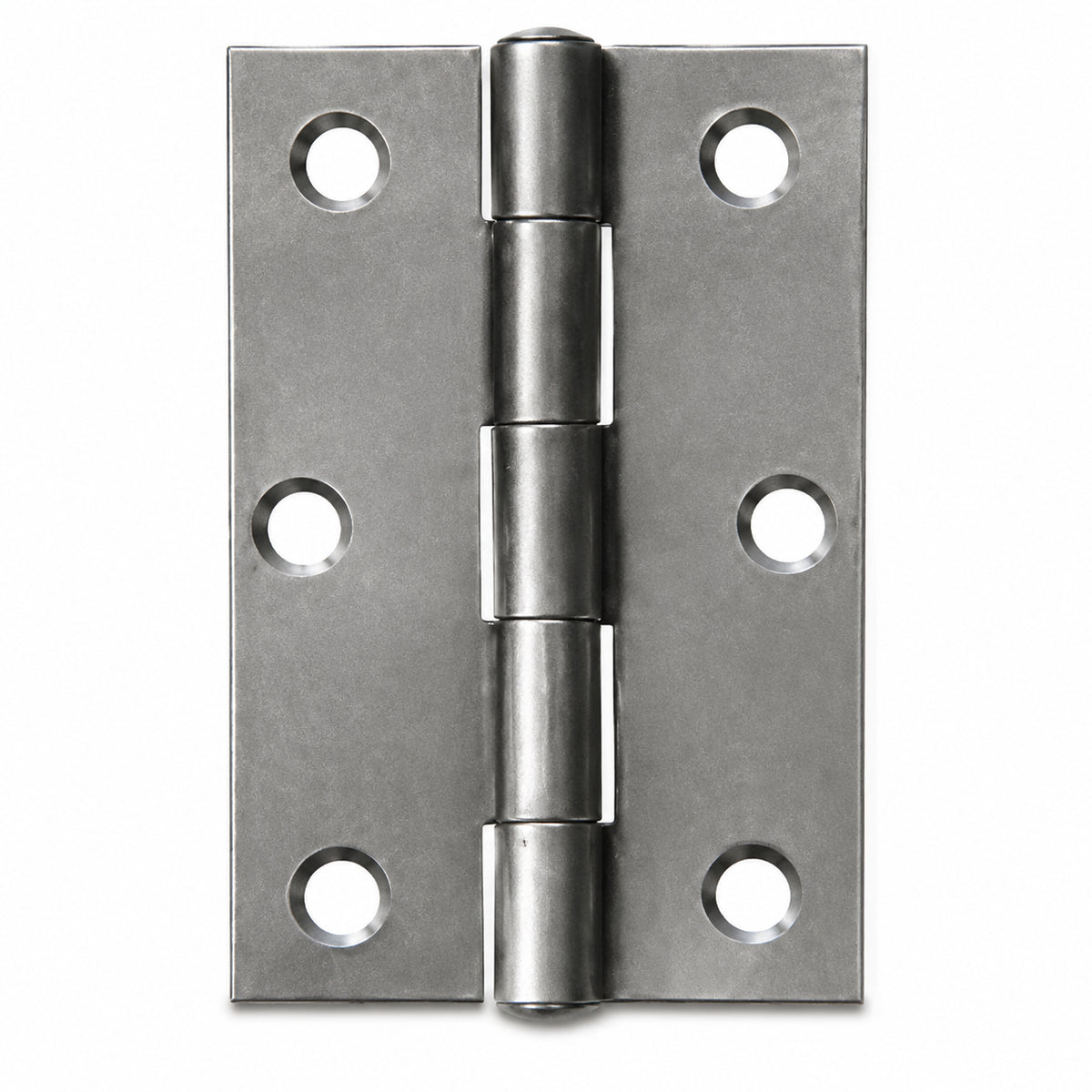

75 x 48mm Self-Colour Steel Butt Hinges

These 75 x 48mm steel butt hinges provide a practical solution for cupboards, furniture, general joinery and lightweight internal timber doors. Their traditional rigid construction incorporates a fixed pin and eight countersunk fixing holes for secure installation.

The self-colour steel finish is supplied without decorative plating. This makes the hinges suitable for projects where they will be painted or otherwise finished to coordinate with the surrounding timber. Clean and prepare the steel before applying a compatible primer, paint or protective coating.

Important ordering information: the displayed price is for one pair, but these hinges are supplied only in packs of 10 pairs. Enter quantities in multiples of 10: 10, 20, 30 and so on. A quantity of 10 supplies 10 pairs, equal to 20 individual hinges.

Key Features

• Traditional steel butt hinge
• Size: 75 x 48mm
• Approximate length: 3 inches
• Natural self-colour steel finish
• Suitable for painting after appropriate surface preparation
• Fixed, non-removable pin
• Four countersunk fixing holes on each leaf
• Eight countersunk fixing holes in total
• Suitable for cupboards, furniture, joinery and lightweight internal timber doors
• Priced per pair
• Sold only in packs and order multiples of 10 pairs

Product Specifications

Typical Applications

• Storage and utility cupboards
• Cabinet and furniture doors
• Lightweight internal timber doors
• Workshop joinery
• Projects where the hinge will be painted

Preparing Self-Colour Steel

Self-colour steel does not have a decorative or corrosion-resistant plated finish. Before painting, remove surface contamination, lightly prepare the metal and apply a compatible metal primer and topcoat. Untreated self-colour steel may develop surface corrosion in damp conditions.

Installation Advice

Position each hinge leaf flush against the door and frame, carefully mark the fixing holes and use screws suitable for the timber and application. Align the hinge knuckles before fully tightening the screws. Select the number and size of hinges according to the door’s dimensions, construction and weight.

These hinges must not be represented as suitable for heavy entrance doors or certified fire doors unless separate verified test information is available.

Questions & Answers

How many hinges are supplied?

This product is supplied only in packs of 10 pairs. Ten pairs contain 20 individual hinges.

Is this hinge sold individually?

No. The displayed price is per pair, but the minimum order is 10 pairs. Enter quantities in multiples of 10.

What does self colour mean?

Self colour means the steel has no decorative plated finish. It retains its natural steel appearance and can be painted after suitable surface preparation.

Can these hinges be painted?

Yes. Clean and prepare the steel before applying a compatible metal primer and topcoat.

Are these suitable for cupboards and internal doors?

Yes. Their 75 x 48mm size is suitable for cupboards, furniture, general joinery and appropriately sized lightweight internal timber doors.

How many fixing holes does each hinge have?

Each hinge has eight countersunk fixing holes in total, with four holes positioned on each leaf.

Can the hinge pin be removed?

No. This product has a fixed pin that is not designed for removal during normal use.

Can these hinges be used outside?

Untreated self-colour steel is vulnerable to corrosion in damp or exposed locations. A suitably plated, coated or stainless steel hinge is normally preferable for exterior use.

Are fixing screws included?

Fixings are not stated as included. Choose screws suitable for the timber thickness and intended application.

Are these suitable for fire doors?

No fire-door certification is declared for this product. Do not use them where certified fire-door hinges are required.

Compare the matching 75 x 48mm bright zinc plated steel butt hinges and 75 x 48mm electro brass steel butt hinges. Browse the complete butt hinge range or contact Hart Wholesale for selection advice.
