Invisible Shelf Support 12 x 120mm

Create the clean, uncluttered look of a truly floating shelf with no visible bracket in sight. This steel invisible shelf support screws directly into the wall and accepts the shelf over its protruding rod, holding it firmly in place while remaining completely hidden within the shelf board. The result is a minimal, architectural finish that works beautifully in living rooms, hallways, alcoves, and anywhere a traditional bracket would interrupt the aesthetic.

At 12mm diameter and 120mm length, this support is ideal for shallower shelves and lighter domestic loads. The knurled section allows for precise vertical adjustment using a standard SW 10 open-ended spanner before the shelf is pushed flush to the wall. Sold individually — order the quantity required for your shelf size and weight.

Key Features

• Rod diameter: 12mm
• Rod length: 120mm
• Material: Steel
• Concealed mounting — no visible bracket
• Suitable for installation into woodwork or masonry walls
• Ideal for shelving systems, radiator screens and telephone supports
• Vertical adjustment via knurled section (SW 10 open-ended wrench)
• Sold individually — more than 2 per shelf may be required depending on shelf weight and dimensions

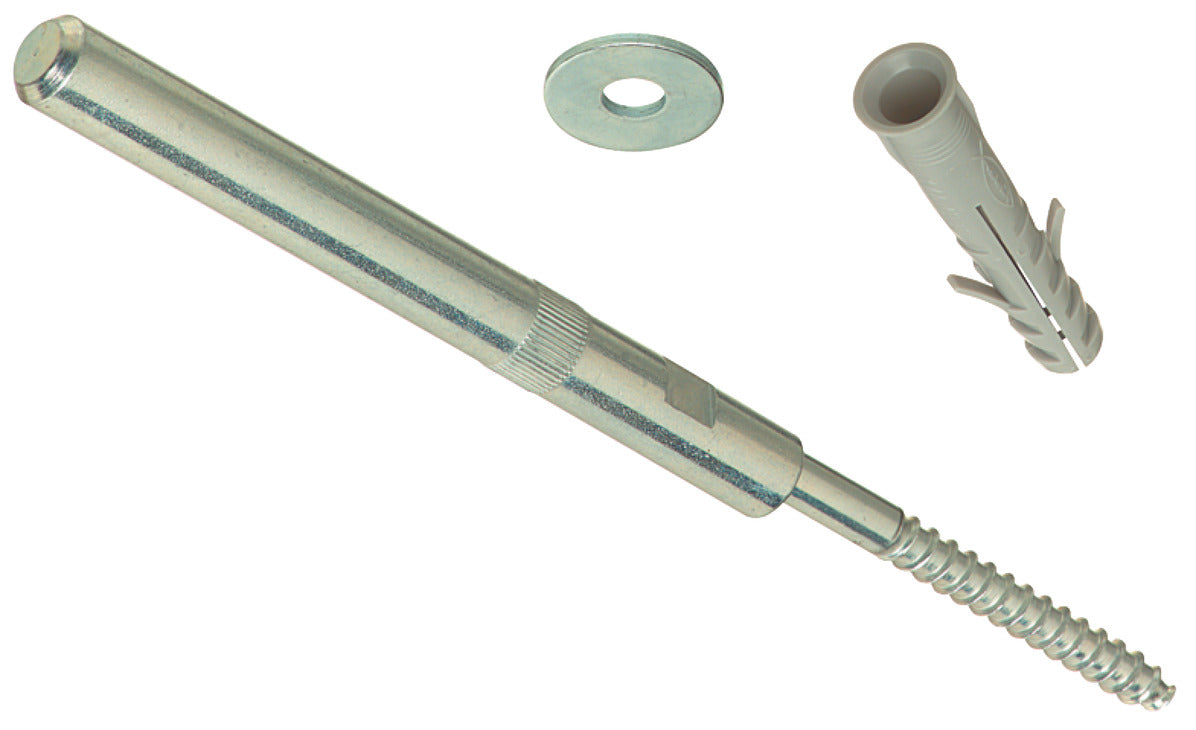

What's in the Box

• 1x Supporting pin with screw — hardened steel
• 1x Washer — galvanised steel
• 1x Wall plug — SR 10 60mm, grey nylon

Load Bearing

Load bearing capacity is dependent on shelf material, shelf depth, and the properties and condition of the wall. Always ensure fixings are appropriate for the substrate and expected load. More than 2 supports per shelf may be required for heavier or wider shelves.

Installation

1. Drill a 10mm diameter hole in the wall and insert the supplied wall plug
2. Slip the washer onto the screw thread
3. Screw the shelf support into the wall plug
4. Install the shelf onto the support as far as the knurled section
5. Use an SW 10 open-ended wrench for vertical adjustment
6. Push the shelf all the way to the wall to complete installation

Also Available

Also available in a 160mm length for deeper shelves. Browse our full range of Shelf Brackets and Fixing Brackets for all shelving applications.
