Invisible Shelf Support 12 x 160mm

For deeper shelves that demand greater wall embedment, the Invisible Shelf Support in 12 x 160mm delivers the extra reach needed to hold wider boards securely while keeping all hardware completely out of sight. Like its shorter counterpart, this support screws directly into the wall and accepts the shelf over its protruding rod — creating a clean floating shelf effect with no visible bracket, no exposed fixings, and no compromise on strength.

The additional 40mm of length over the 120mm version makes this the right choice for deeper shelving boards where a longer embedment depth improves stability and load distribution. The knurled section allows for precise vertical adjustment using a standard SW 10 open-ended spanner before the shelf is pushed flush to the wall. Sold individually — order the quantity required for your shelf.

Key Features

• Rod diameter: 12mm
• Rod length: 160mm
• Material: Steel
• Concealed mounting — no visible bracket
• Suitable for installation into woodwork or masonry walls
• Ideal for shelving systems, radiator screens and telephone supports
• Vertical adjustment via knurled section (SW 10 open-ended wrench)
• Sold individually — more than 2 per shelf may be required depending on shelf weight and dimensions

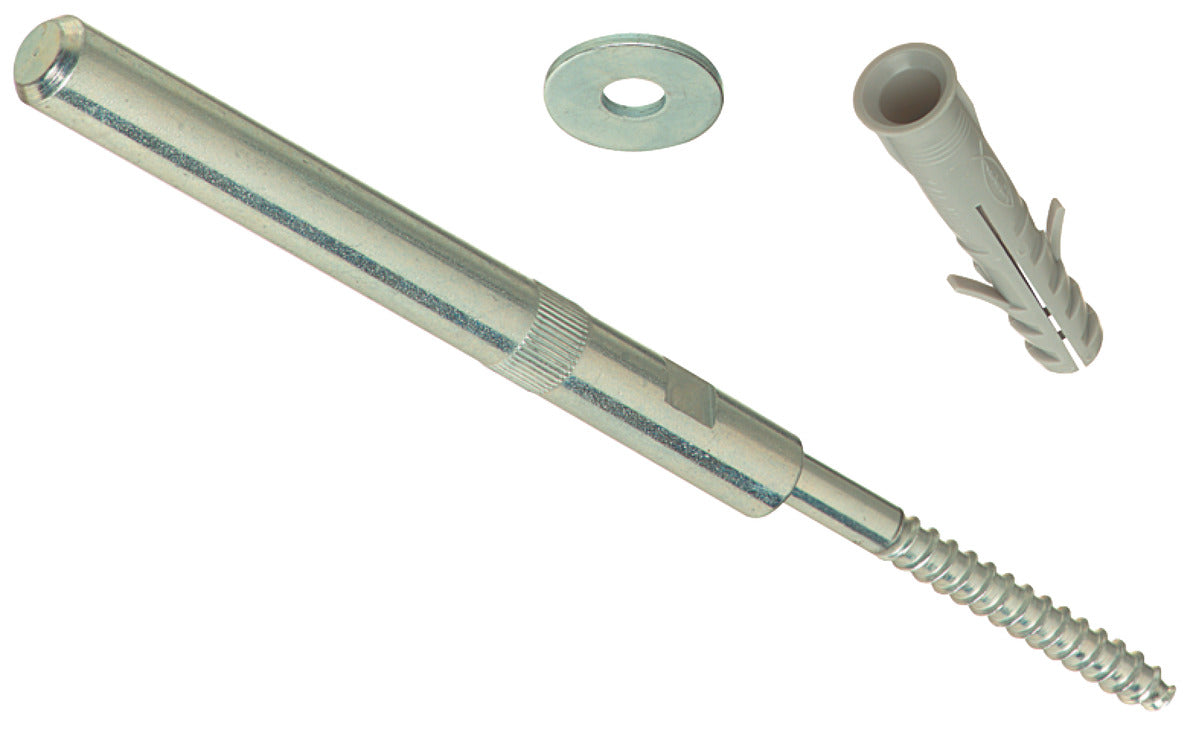

What's in the Box

• 1x Supporting pin with screw — hardened steel
• 1x Washer — galvanised steel
• 1x Wall plug — SR 10 60mm, grey nylon

Load Bearing

Load bearing capacity is dependent on shelf material, shelf depth, and the properties and condition of the wall. Always ensure fixings are appropriate for the substrate and expected load. More than 2 supports per shelf may be required for heavier or wider shelves.

Installation

1. Drill a 10mm diameter hole and insert the supplied wall plug
2. Slip the washer onto the screw thread
3. Screw the shelf support into the wall plug
4. Install the shelf onto the support as far as the knurled section
5. Use an SW 10 open-ended wrench for vertical adjustment
6. Push the shelf all the way to the wall to complete installation

Also Available

Also available in a 120mm length for shallower shelves. Browse our full range of Shelf Brackets and Fixing Brackets for all shelving applications.
