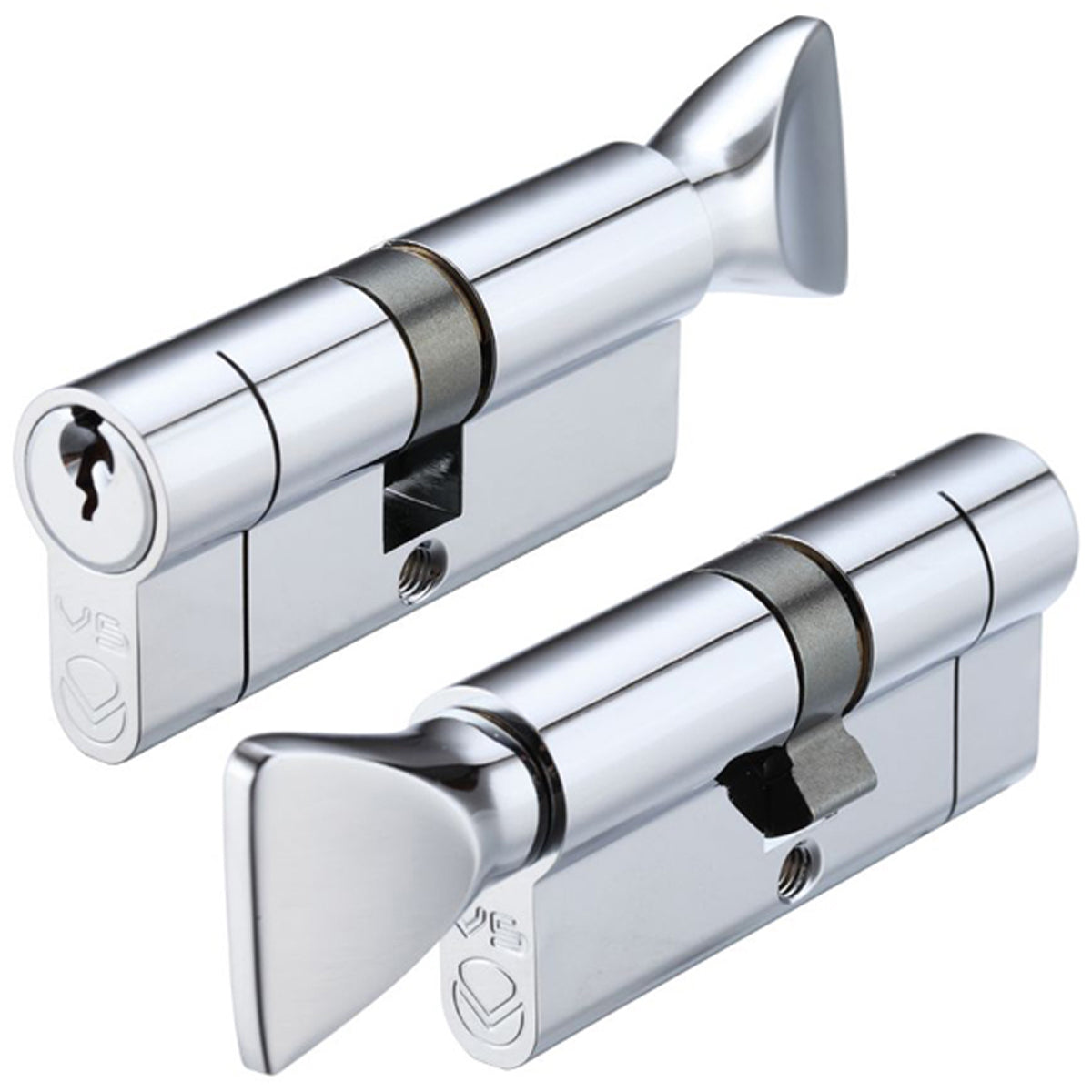

V5 80mm Offset Euro Thumbturn Cylinder 30/50 – Polished Chrome – Keyed Different

V5 80mm Offset Euro Thumbturn Cylinder 30/50 – Polished Chrome – Keyed Different

Stock Code: DFZ329G

£8.70 GBP
Sale
View full details

PRODUCT DESCRIPTION

This 80mm offset euro thumbturn cylinder has a 30/50mm split and a polished chrome finish. It provides convenient keyless operation from the thumbturn side while retaining controlled key access from the opposite side.

This version is keyed to differ, meaning its supplied keys operate this cylinder rather than other standard cylinders within the same range. The five-pin mechanism incorporates anti-pick, anti-drill and break-off security features for domestic and commercial door applications.

Key features

  • 80mm overall cylinder length
  • Offset 30/50mm dimensions
  • Euro-profile cylinder and thumbturn design
  • Key operation from one side
  • Convenient thumbturn operation from the other side
  • Keyed to differ for individual key access
  • Five-pin cylinder mechanism
  • Polished chrome finish
  • Anti-pick protection
  • Anti-drill protection
  • Break-off security system
  • Supplied with three keys
  • Tested to BS EN 1303
  • Suitable for domestic and commercial applications

What does keyed to differ mean?

Keyed to differ means this cylinder is operated by its own keys. A key supplied with another standard keyed-different cylinder will not normally operate it. This is suitable where separate doors require independent key access.

Check the 30/50mm size before ordering

Euro cylinders are measured from the centre of the retaining-screw position to each end. This cylinder measures 30mm on one side and 50mm on the other, giving an overall length of 80mm.

Because this is an offset cylinder with a thumbturn, check the required dimensions and thumbturn orientation against the existing cylinder before ordering. The cylinder should sit close to the door furniture and should not project excessively beyond the handle or security escutcheon.

Technical specifications

Cylinder profile Euro profile
Cylinder type Offset cylinder and thumbturn
Operation Key on one side and thumbturn on the other
Overall length 80mm
Cylinder split 30/50mm
Keying Keyed to differ
Mechanism Five pin
Finish Polished chrome
Security features Anti-pick, anti-drill and break-off system
Keys supplied Three
Standard BS EN 1303
Stock code DFZ329G
Manufacturer part number V5EP3050CTPCE
Pack quantity One cylinder

Fire-door applications

This cylinder may be used in appropriate FD30 and FD60 fire-door assemblies when it is correctly specified and installed as part of the tested door set. The cylinder alone does not make a door fire-rated.

Frequently asked questions

What is the total length of this cylinder?

The overall length is 80mm, divided into 30mm and 50mm sections measured from the centre fixing position.

Does it require a key from inside?

No. The thumbturn allows the cylinder to be locked or unlocked from its thumbturn side without using a key.

What does keyed to differ mean?

It means this cylinder has its own individual key operation rather than sharing the same key with other cylinders.

How many keys are supplied?

Three keys are supplied with the cylinder.

Is this a symmetrical cylinder?

No. It has an offset 30/50mm configuration. Measure both sides of the door separately before ordering.

Can it be fitted to a fire door?

It is suitable for appropriate FD30 and FD60 applications when specified and installed as part of a compliant, tested fire-door assembly.

See more options in our door locks collection and locks and latches collection.

TECHNICAL DETAILS

  • Application: Security
  • Size: 30/50mm
  • Length: 80mm
  • Finish: Polished chrome
