  • V5 80mm Offset Euro Thumbturn Cylinder 30/50 – Polished Chrome – Master Keyed – DFZ329E
1 1

V5 80mm Offset Euro Thumbturn Cylinder 30/50 – Polished Chrome – Master Keyed

V5 80mm Offset Euro Thumbturn Cylinder 30/50 – Polished Chrome – Master Keyed

Stock Code: DFZ329E

£24.19 GBP
Sale
View full details

PRODUCT DESCRIPTION

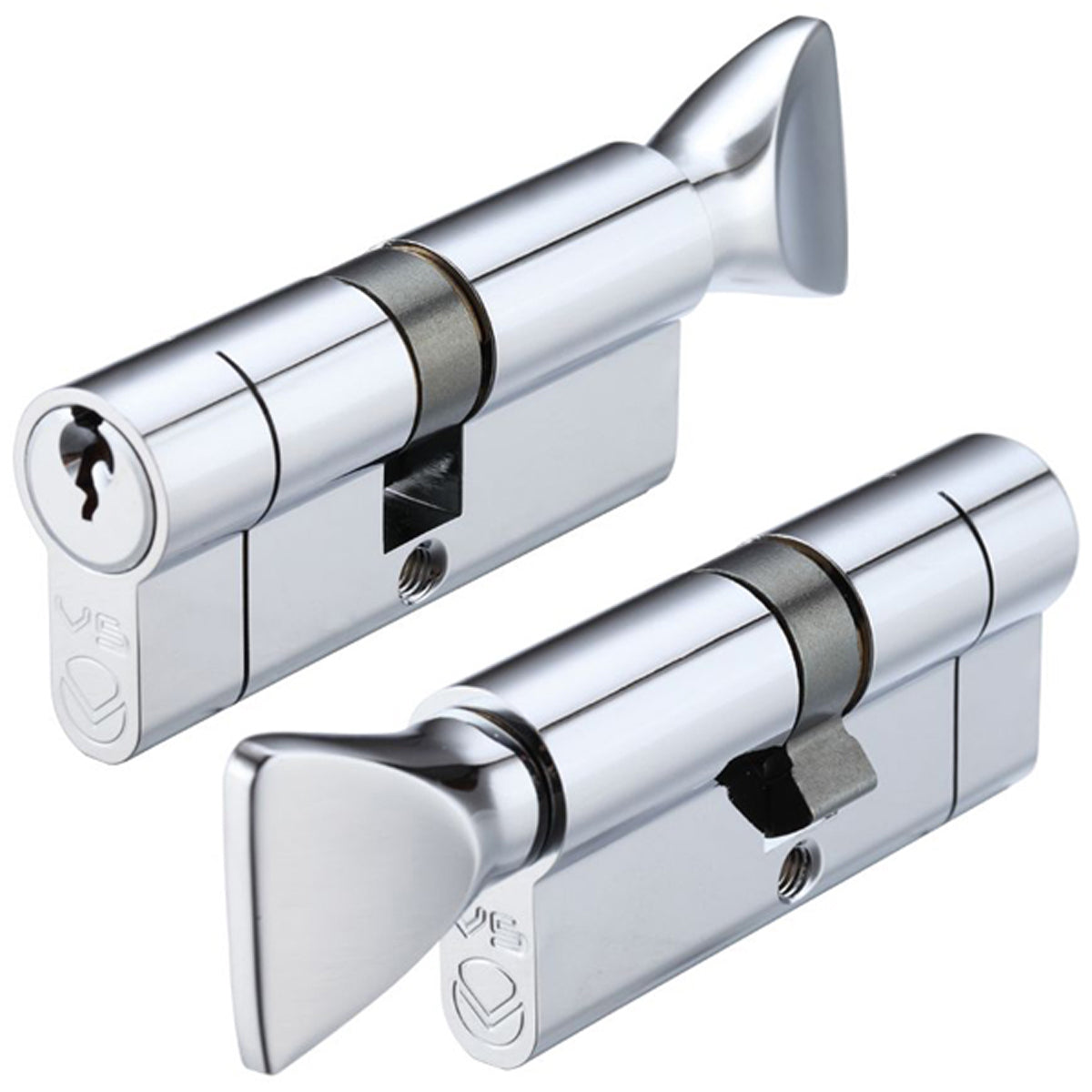

This V5 80mm offset euro cylinder and thumbturn has a 30/50mm split and polished chrome finish. It provides keyed access from one side and convenient thumbturn operation from the other.

This version is configured for a compatible master-key system. Its change key operates the assigned cylinder, while the correctly configured master key can operate designated cylinders in the same suite. A master key is not included unless the product contents expressly say otherwise.

Key features

  • 80mm overall length
  • Offset 30/50mm configuration
  • Euro-profile key and thumbturn design
  • Five-pin mechanism
  • Master-keyed configuration
  • Polished chrome finish
  • Brass cylinder body
  • Anti-pick and anti-drill protection
  • Break-off security system
  • BS EN 1303 security grade 2
  • Suitable for appropriate interior and exterior doors

Technical details

Overall length 80mm
Split 30/50mm
Internal barrel dimensions 25/45mm
Profile Euro
Operation Key and thumbturn
Keying Master keyed
Mechanism 5 pin
Finish Polished chrome
Stock code DFZ329E
MPN V5EP3050CTPCMK

Frequently asked questions

What does master keyed mean?

The cylinder has an assigned change key and can also be operated by the correctly configured master key for its suite.

Is a master key supplied?

Do not assume so. Order the compatible master key separately unless the product contents explicitly state that it is included.

How do I check the size?

Measure from the centre retaining-screw position to each end of the existing cylinder and confirm the 30/50mm orientation before ordering.

Browse related products in our door locks collection.

TECHNICAL DETAILS

  • Application: Security
  • Size: 30/50mm
  • Length: 80mm
  • Finish: Polished chrome
  • Material: Brass
